Measuring Instruments

Our product range contains a wide range of Mitutoyo Test Indicator, Milhard CS Series Engineers Square, Milhard ADJ Series Engineers Square, Milhard BES Series Engineers Square and Milhard BE Series Engineers Square

Mitutoyo Test Indicator

Mitutoyo Test Indicator
  • Min. Order (MOQ) 5 Piece
  • Material Iron, Steel, Glass
  • Driven Type Battery
  • Number Of Flower Portable
  • Brand Name Mitutoyo
  • Warranty 1 Year
View Complete Details
Ask Latest Price & Details

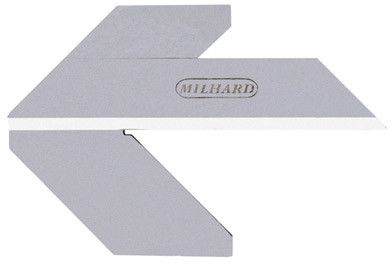

Milhard CS Series Engineers Square

Milhard CS Series Engineers Square
  • Min. Order (MOQ) 5 Piece
  • Brand Name Milhard
  • Application Industrial
  • Surface Treatment Polished
  • Thickness 5-10 mm
  • Country of Origin India
View Complete Details
Ask Latest Price & Details
Milhard ADJ Series Engineers Square

Milhard ADJ Series Engineers Square
  • Min. Order (MOQ) 5 Piece
  • Brand Name Milhard
  • Material Metal
  • Surface Finishing Polished
  • Shape L Shape
  • Packaging Type Metallic
  • Thickness 5-10mm
  • Country of Origin India

Series-ADJ

  • ADJ Series squares are supplied with hardened blades and normal stock
  • ADJH Series Squares are supplied with both blades & stock, hardened
  • Precision Ground
  • Squareness of both the edges of the blade is always maintained with respect to both the working faces of the stock

Specifications

Model Stock
L X W X H
(mm)		 Blade
L X W X H
(mm)		 Squareness
(mm)		 Stock Faces
(mm)		 Blade Edges
(mm)
ADJ - 1 ADJH - 1 70 x 19 x 10 100 x 19 x 1.8 0.01 0 0.01 0.24
ADJ - 2 ADJH - 2 95 x 25 x 12 150 x 25 x 1.8 0.01 0 0.01 0.4







View Complete Details
Ask Latest Price & Details
Milhard BES Series Engineers Square

Milhard BES Series Engineers Square
  • Min. Order (MOQ) 5 Piece
  • Brand Name Milhard
  • Material Metal
  • Surface Finishing Polished
  • Shape L Shape
  • Packaging Type Metallic
  • Certification ISI Certified
  • Thickness 10-15mm
  • Country of Origin India

Specifications

Model l
(mm)		 b
(mm)		 c
(mm)		 d
(mm)		 e
(mm)		 Squareness
(mm)		 Stock Faces
(mm)		 Blade Edges
(mm)		 Net Weight
(Kgs.)
BES-1 28 20 10 13 3 0 0 0 0.04
BES-2 54 40 13 17 4 0 0 0 0.07
BES-3 80 50 15 20 5 0.01 0 0 0.13
BES-4 105 70 20 25 5 0.01 0 0 0.18
BES-5 156 100 26 32 7 0.01 0 0.01 0.37
BES-6 208 130 32 39 8 0.01 0.01 0.01 0.73
BES-7 234 150 34 42 9 0.01 0.01 0.01 1.07
BES-8 260 165 35 43 10 0.01 0.01 0.01 1.4









View Complete Details
Ask Latest Price & Details
Milhard BE Series Engineers Square

Milhard BE Series Engineers Square
  • Min. Order (MOQ) 5 Piece
  • Brand Name Milhard
  • Material Metal
  • Surface Finishing Polished
  • Shape L Shape
  • Packaging Type Metallic
  • Certification ISI Certified
  • Thickness 5-10mm
  • Country of Origin India

Series-BE

  • Made from special tool steel
  • Hardened & Precision ground
  • Squareness of both the edges of the blade is always maintained with respect to both the working faces of the stock

Specifications

Model l
(mm)		 b
(mm)		 c
(mm)		 e
(mm)		 Squareness
(mm)		 Stock Faces
(mm)		 Blade Edges
(mm)		 Net Weight
(Kgs.)
BE-1 25 20 10 3 0 0 0 0.03
BE-2 50 40 13 4 0 0 0 0.05
BE-3 75 50 15 5 0.01 0 0 0.1
BE-4 100 70 20 5 0.01 0 0 0.13
BE-5 150 100 26 7 0.01 0 0.01 0.25
BE-6 200 130 32 8 0.01 0.01 0.01 0.5
BE-7 225 150 34 9 0.01 0.01 0.01 0.75
BE-8 250 165 35 10 0.01 0.01 0.01 1








View Complete Details
Ask Latest Price & Details
Milhard FES Series Engineers Square

Milhard FES Series Engineers Square
  • Min. Order (MOQ) 5 Piece
  • Brand Name Milhard
  • Material Metal
  • Surface Finishing Polished
  • Shape L Shape
  • Packaging Type Metallic
  • Thickness 5-10mm
  • Country of Origin India

Series-FES

  • Flanged base for greater stability and convenience
  • Hardened & precision ground
  • Squareness of both the edges of the blade is always maintained with respect to both the working faces of the stock

Specifications

Model l
(mm)		 b
(mm)		 c
(mm)		 d
(mm)		 e
(mm)		 Squareness
(mm)		 Stock Faces
(mm)		 Blade Edges
(mm)		 Net Weight
(Kgs.)
FES-1 28 20 10 13 3 0 0 0 0.04
FES-2 54 40 13 17 4 0 0 0 0.07
FES-3 80 50 15 20 5 0.01 0 0 0.13
FES-4 105 70 20 25 5 0.01 0 0 0.18
FES-5 156 100 26 32 7 0.01 0 0.01 0.37
FES-6 208 130 32 39 8 0.01 0.01 0.01 0.73
FES-7 234 150 34 42 9 0.01 0.01 0.01 1.07
FES-8 260 165 35 43 10 0.01 0.01 0.01 1.4









View Complete Details
Ask Latest Price & Details

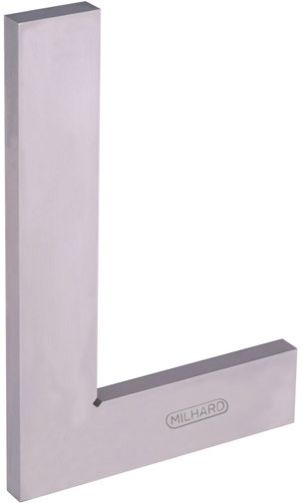

Milhard FE Series Engineers Square

Milhard FE Series Engineers Square
  • Min. Order (MOQ) 5 Piece
  • Brand Name Milhard
  • Material Metal
  • Surface Finishing Polished
  • Shape L Shape
  • Packaging Type Metallic
  • Size Standard
  • Thickness 5-10mm
  • Country of Origin India

Specifications

Model l
(mm)		 b
(mm)		 c
(mm)		 e
(mm)		 Squareness
(mm)		 Stock Faces
(mm)		 Blade Edges
(mm)		 Net Weight
(Kgs.)
FE-1 25 20 10 3 0 0 0 0.03
FE-2 50 40 13 4 0 0 0 0.05
FE-3 75 50 15 5 0.01 0 0 0.1
FE-4 100 70 20 5 0.01 0 0 0.13
FE-5 150 100 26 7 0.01 0 0.01 0.25
FE-6 200 130 32 8 0.01 0.01 0.01 0.5
FE-7 225 150 34 9 0.01 0.01 0.01 0.75
FE-8 250 165 35 10 0.01 0.01 0.01 1








View Complete Details
Ask Latest Price & Details
Milhard CE Series Engineers Square

Milhard CE Series Engineers Square
  • Min. Order (MOQ) 5 Piece
  • Brand Name Milhard
  • Material Metal
  • Surface Finishing Polished
  • Shape L Shape
  • Packaging Type Metallic
  • Thickness 5-10mm
  • Country of Origin India

Series-CE

  • The Cylindrical Edge Blade gives the freedom to use the square from any direction
  • The Blade is Hardened and Precision Ground
  • Squareness of both the edges of the blade is always maintained with respect to both the working faces of the stock

Specifications

Model l
(mm)		 b
(mm)		 c
(mm)		 d
(mm)		 e
(mm)		 Squareness
(mm)		 Stock Faces
(mm)		 Blade Edges
(mm)		 Net Weight
(Kgs.)
CE-1 100 75 22 13 5 0.01 0.01 0.01 0.25
CE-2 150 100 25 13 5 0.01 0.01 0.01 0.4









View Complete Details
Ask Latest Price & Details
Milhard PE Series Engineers Square

Milhard PE Series Engineers Square
  • Min. Order (MOQ) 5 Piece
  • Brand Name Milhard
  • Material Metal
  • Surface Finishing Polished
  • Shape L Shape
  • Packaging Type Metallic
  • Size Standard
  • Thickness 5-10mm
  • Country of Origin India

Series-PE

  • PE Series Squares are supplied with hardened blade and normal stock
  • PEH Series Squares are supplied with both stock and blade hardened
  • Precision ground and highly precise
  • Squareness of both the edges of the blade is always maintained with respect to both the working faces of the stock

Specifications

Model l
(mm)		 b
(mm)		 c
(mm)		 d
(mm)		 e
(mm)		 Squareness
(mm)		 Stock Faces
(mm)		 Blade Edges
(mm)		 Net Weight
(Kgs.)
PE-1 PEH-1 50 50 19 9.5 1.6 0.01 0 0.01 0.1
PE-2 PEH-2 75 60 19 9.5 1.6 0.01 0 0.01 0.13
PE-3 PEH-3 100 75 19 9.5 1.6 0.01 0 0.01 0.15
PE-4 PEH-4 125 100 19 9.5 1.6 0.01 0 0.01 0.18
PE-5 PEH-5 150 100 25 12 1.6 0.01 0.01 0.01 0.25
PE-6 PEH-6 200 125 28 14 1.6 0.01 0.01 0.01 0.3
PE-7 PEH-7 225 140 36 18 3 0.02 0.01 0.01 1
PE-8 PEH-8 250 155 36 18 3 0.02 0.01 0.01 1.25
PE-9 PEH-9 300 175 45 22 3 0.02 0.01 0.02 2.5









View Complete Details
Ask Latest Price & Details
Milhard Dial Comparator

Milhard Dial Comparator
  • Min. Order (MOQ) 5 Piece
  • Application Industrial
  • Number Of Flower Portable
  • Country of Origin India
  • Brand Name Milhard
  • Size Standard

Features :

  • Medium sized portable support, highly suited for mounting dial gauges, lever- type dial test indicators, etc.
  • Cast Iron base with all sides ground parallel, Vertical column moves along T-slot & can be clamped at any point
  • Both column as well as measuring arm are made of steel and chrome plated
  • Apart from two rigid articulation points, fine adjustment also provided

Specifications

Model Overall Height (mm) Horizontal Reach
UDS-1 300 200
UDS-2 450 300
UDS-3 600 400
View Complete Details
Ask Latest Price & Details
