Vices

Leading Manufacturer, Supplier & Retailer of Bench Vice, Milhard MVS Series Machine Vice, Milhard STV Series Machine Vice, Milhard PMH Series Machine Vice and Milhard PM Series Machine Vice.

Bench Vice

Min. Order (MOQ) 5 piece
Size 8 inch
Number Of Flower rear jaw sliding
Brand Name orcan

Cast Iron Orcan 8 Inch Width Orcan Rear Jaw Sliding Bench Vice

View Complete Details

Ask Latest Price & Details

Milhard MVS Series Machine Vice

Min. Order (MOQ) 5 Piece
Brand Name Milhard
Material Stainless Steel
Packaging Type Polished
Application Industrial
Thickness 10-15mm
Country of Origin India

Series - MVS ( Swivelling Base)

Manufactured from close grained high tensile Cast Iron.
Jaw Plates are made from Alloy Steel Hardened up to 48-52 HRC.
High Tensile Fasteners are used for increased life and efficiency.
All lead screws are enclosed for protection from dust and debris.
Polychromatic Stowing Paint.
Overall accuracy of +0.020mm

Specifications

Model	Jaw Width (mm)	Jaw Depth (mm)	Max Opening (mm)	Swivel Indexing	Overall Height (mm)	Approx. Weight (Kgs.)
MVS-2	50	24	50	360º	75	3.5
MVS-3	75	34	75	360º	96	9
MVS-4	100	39	100	360º	120	18

View Complete Details

Ask Latest Price & Details

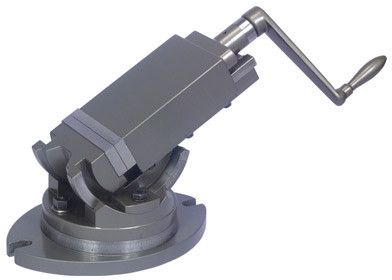

Milhard STV Series Machine Vice

Min. Order (MOQ) 5 Piece
Brand Name Milhard
Material Stainless Steel
Packaging Type Polished
Application Industrial
Thickness 10-15mm
Country of Origin India

Series - STV ( Swivelling & Tilting)

Manufactured from close grained high tensile Cast Iron.
Jaw Plates are made from Alloy Steel Hardened up to 48-52 HRC.
High Tensile Fasteners are used for increased life and efficiency.
All lead screws are enclosed for protection from dust and debris.
Polychromatic Stowing Paint.
Overall accuracy of +0.020mm

Specifications

Model	Jaw Width (mm)	Jaw Depth (mm)	Max Opening (mm)	Swivel Indexing	Vertical Indexing	Overall Height (mm)	Approx. Weight (Kgs.)
STV-2	50	24	50	360º	0-90º	90	3.5
STV-3	75	34	75	360º	0-90º	127	9.5
STV-4	100	39	100	360º	0-90º	146	18
STV-5	125	46	125	360º	0-90º	180	32

View Complete Details

Ask Latest Price & Details

Milhard PMH Series Machine Vice

Min. Order (MOQ) 5 Piece
Brand Name Milhard
Material Stainless Steel
Packaging Type Polished
Application Industrial
Thickness 10-15mm
Country of Origin India

Series - PMH

Made from tool steel
Hardened & ground
The moving jaw of vices is slightly narrower than the base to enable the vice to be used on its sides
The moving jaw is guided through a precise lead screw

Specifications

Model	Jaw Width (mm)	Jaw Depth (mm)	Max Opening (mm)	Overall Length (mm)	Overall Height (mm)	Right Angle Accuracy (mm)	Net Weight (Kgs.)
PMH-1	75	45	75	200	75	0.01	5.25
PMH-2	60	30	60	170	70	0.01	3.8
PMH-3	45	25	45	140	45	0.01	1.6
PMH-4	30	15	30	90	30	0.01	0.5
PMH-5	98	45	100	230	75	0.01	8
PMH-6	20	12	20	70	22	0.01	0.17
PMH-7	150	65	150	330	125	0.01	24.6

View Complete Details

Ask Latest Price & Details

Milhard PM Series Machine Vice

Min. Order (MOQ) 5 Piece
Brand Name Milhard
Material Stainless Steel
Packaging Type Polished
Application Industrial
Thickness 10-15mm
Country of Origin India

Series - PM

Made from rugged & stable cast iron
The jaws and base plate are made of hardened and ground tool steel

Specifications

Model	Jaw Width (mm)	Jaw Depth (mm)	Max Opening (mm)	Overall Length (mm)	Overall Height (mm)	Right Angle Accuracy (mm)	Net Weight (Kgs.)
PM-1	70	50	70	225	85	0.01	6.5
PM-2	60	30	60	190	70	0.01	4

View Complete Details

Ask Latest Price & Details

Milhard SV Series Machine Vice

Min. Order (MOQ) 5 Piece
Brand Name Milhard
Material Stainless Steel
Packaging Type Polished
Application Industrial
Thickness 10-15mm
Country of Origin India

Series - SV

SV-Hole & Pin Type
SVS-Screw Type
Made from tool steel hardened & ground
Mounted on hardened & ground rollers, the vice can be inclined in the desired position with the help of side strap clamp. The recess of 1mm depth is made in base plate for low angle positioning

Specifications
