2 Products availableWe offer a complete product range of Alumina Magnesia Carbon Bricks, MAG Carbon Bricks for Converter, High Alumina Bricks, Dense High Alumina Bricks and Basic Bricks
Located in Gujarat, India, we are actively functioning as a well-known Manufacturer, Exporter and Supplier of Alumina Magnesia Carbon Bricks all over the nation and abroad. The Carbon Bricks are offered by us in ample of brands and are outstanding on terns of quality.
Specifications
Typical & Average Data of Alumina-Magnesia-Carbon Bricks | |||||||
---|---|---|---|---|---|---|---|
MGO % (Min) | Al2O3% (Min) | F.C. % (Min) | A.P. % (Max) | CCS kg/cm2 (Min) | B.D. gm/cc (Min) | HMOR @ 1450oC (Min) | Application Area |
10 | 70 | 7 | 6 | 500 | 3 | 75 | Bottom & impact pad of LRF |
8 | 70 | 5 | 7 | 450 | 2.95 | 50 | Side wall of teeming ladle. |
15 | 60 | 6 | 7 | 450 | 2.9 | 40 | Side wall of LRF |
15 | 56 | 8 | 8 | 400 | 2.9 | 40 | Bottom & impact pad of teeming ladle |
We have cemented our position as a reliable Manufacturer, Exporter and Supplier of MAG Carbon Bricks for Converter from Gujarat, India. The MAG Carbon Bricks for Converter that we bring to you is made up of top-notch quality raw materials and sophisticated machines. Buyers can purchase them from us at the reasonable prices!
Specifications
i) Resin Bonded Bricks for converter | |||||||||
---|---|---|---|---|---|---|---|---|---|
MGO % | MGO (Loss Free Basis) % (Min) |
FC % (Min) | AL2O3 % (Max) |
A.P. % (Max) | BD gm/cc (Min) | C.C.S Kg/cm2 (Min) |
HMOR Kg/cm2 @ 1400 oC (Min) |
Application Area | |
97 | 84 | 12 | 3 | 2.8 | 3 | 450 | 120 | Bottom Lower Case | |
97 | 84 | 12 | 3 | 2.8 | 3 | 450 | 120 | Lower Cone | |
97 | 84 | 12 | 3 | 2.8 | 3 | 450 | 120 | Barrel | |
97 | 84 | 12 | 3 | 2.8 | 3 | 450 | 120 | Top Cone | |
97 | 87 | 9 | 3 | 2.8 | 3 | 450 | 120 | Charge Paid | |
97 | 80 | 15 | 3 | 2.8 | 3 | 450 | 120 | Trunion | |
97 | 81 | 13 | 3 | 2.8 | 3 | 450 | 120 | Tap Hole | |
ii) Pitch Bonded bricks for converter | |||||||||
98 | 90 | 5 | 2.98 | 4 | - | 480 | - | 80 | Hot & Cold Spots |
96 | 85 | 10 | 2.97 | 4 | - | 420 | - | 80 | |
96 | 82 | 13 | 2.96 | 4 | - | 400 | - | 80 | |
93 | 80 | 15 | 2.95 | 4 | - | 400 | - | 80 |
Contact us, if searching for the finest quality High Alumina Bricks! We are a respectable entity engaged in providing striking High Alumina Bricks all over the nation and abroad. Owing to its attributes like strong built, excellent quality and flawless composition, the bricks are extensively demanded. Place order with us-you won’t be dejected!
Specifications
Typical & Average Data of High Alumina Bricks | ||||||||
---|---|---|---|---|---|---|---|---|
Al2O3 % Min |
Fe2O3 % Max |
B. D. gm/cc Min |
A. P. % Max | CCS kg/cm2 Min |
PCE oC Min |
RUL Ta oC Min |
PLC % Max | Application Area |
50 | 2.3 | 24 | 19 | 350 | 1743 | 1400 | + 1.0 @ 1400 oC | Calcining zone of vertical shaft kilns of Lime & Cement (50 to 100) TPD capacity |
60 | 2.4 | 23 | 22 | 500 | 1700 | 1450 | + 1.0 @ 1450 oC | Walls, Bottom & Roof of Reheat Furnaces, soaking pit walls and annealing furnaces |
70 | 2.65 | 23 | 18 | 500 | 1800 | 1470 | + 1.0 @ 1450 oC | Working lining of steel ladle up to 60 T capacity, Cement Rotary Kilns. |
80 | 2.8 | 23 | 18 | 600 | 1800 | 1600 | + 1.0 @ 1500 oC | Working lining for RF/VAD/VOD, cooler of cement Rotary kiln. |
Get in touch with us if in case looking out for graded Dense High Alumina Bricks! We are a reputed name as Manufacturer, Exporter and Supplier of Dense High Alumina Bricks from Gujarat, India. The Dense High Alumina Bricks are produced under the stringent supervision of quality controllers so that the quality is never ever hampered.
Specifications
Typical & Average Data of Dense High Alumina Bricks | ||||||||
---|---|---|---|---|---|---|---|---|
Al2O3 % Min |
Fe2O3 % Max |
B. D. gm/cc Min |
A.P. % Max |
CCS kg/cm2 Min |
PCE oC Min |
RUL Ta oC Min |
PLC % Max | Application Area |
60 | 3 | 2.5 | 23 | 500 | 35 | 1450 | + 1.5 @ 1500oC | Cement Rotary Kiln calcining Zone |
62 | 1.5 | 2.55 | 15 | 600 | 36 | 1550 | + 1.5 @ 1500oC | For blast furnace Bottom |
70 | 2.5 | 2.65 | 18 | 600 | 37 | 1550 | + 1.5 @ 1500oC | Working lining of steel ladle for High capacity, ladle cement kilns. |
70 | 3.5 | 2.7 | 23 | 550 | 38 | 1450 | + 1.5 @ 1500oC | Burning zone & cooler inlet for cement plant. |
72 | 0.5 | 2.5 | 21 | 600 | 38 | 1650 | + 0.2 @ 1500oC | Blast Furnace & Fertilizer units. |
85 | 1.5 | 2.9 | 18 | 500 | 38 | 1600 | + 1.5 @ 1550oC | Sponge iron Rotary Kilns, Fertilizer Units |
90 | 0.5 | 3 | 19 | 900 | 40 | 1700 | + 0.2 @ 1600oC | EAF roof, Fertilizer & Petrochemical Industries |
70 | 0.5 | 2.6 | 20 | 600 | 37 | 1650 | + 0.3 @ 1600oC | Best Furnace |

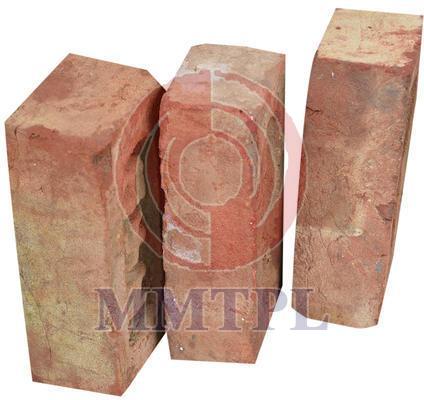

We are a prestigious name as Manufacturer, Exporter and Supplier of Basic Bricks from Gujarat, India. The Basic Bricks that we offer to you all are produced by our team of professionals who have rich experience in their production. When it comes to delivery, we make sure that the placed order, be it small or big, is timely delivered without any delays.
Specifications
6a. Typical & Average Data of Basic Bricks (Magnesite, Mag-Chrome, Chrome-Mag) | |||||||||
---|---|---|---|---|---|---|---|---|---|
MGO % Min | Si02 % (Min) | Ca0 % (Max) | Cr203 % (Max) | A.P. % (Max) | C.C.S kg/cm2 (Min) | Rul TaoC (Min) | BD gm/cc (Min) | Application Area | |
85 | 6.5 | 2.5 | - | 22 | 350 | 1550 | - | BOF, VAD, Ladle, EAF, OH Furnace, LD convertors Back Lining | |
90 | 4 | 2 | - | 17 | 500 | 1600 | - | Safety lining EAF, BOF | |
96 | 1 | 2 | - | 17 | 500 | 1700 | - | Glass tank regeneration, Copper Refiner & Chemical Ind. | |
70 | - | - | 6 | 23 | 250 | 1500 | 2.8 | Ladle back up lining | |
25 | - | - | 30 | 16 | 500 | 1550 | 3.2 | Steel Rolling Mill Forging Ind Etc., (Equivalent to Chrome ‘D’) | |
35 | - | - | 22 | 25 | 250 | 1550 | 3.2 | Furnace Back up lining | |
40 | - | - | 22 | 18 | 400 | 1550 | 3.1 | Bottom paving for reheating Furnace. | |
82-86 | 1.5 | 2.5 | 42068 | 18 | 500 | 1650 | 2.95 | Cement Dry Process Rotary Kiln equivalent to perilex bricks used in (Burning zone) |

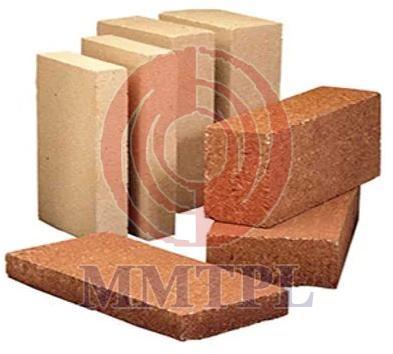

The Dense Fireclay Bricks, offered by us, are quality assured and are produced in sync with the laid international quality standards. We are a credible Manufacturer, Exporter and Supplier of Dense Fireclay Bricks in Gujarat, India. Our Dense Fireclay Bricks are accurate in composition and are very strong. Talk of their price; stay assured to get what’s the best in the market!
Specifications
Typical and Average Data of Dense Fireclay Bricks | ||||||||
---|---|---|---|---|---|---|---|---|
Al2O3 % Min | Fe2O3 % Max |
B.D. gm/cc Min |
A. P. % Max |
CCS kg/cm2 Min |
PCE oC Min | RUL Ta0C Min |
PLC % Max | Application Area |
30 | 2 | 2 | 19 | 350 | 1683 | 1420 | +0.8 @ 1350oC | Tertiary air duct (Rotary Kiln) Coke Oven and blast Furnace Battery |
35 | 2 | 2.05 | 22 | 350 | 31 | 1450 | +0.8 @ 1350C | For blast furnace |
39 | 2 | 2.15 | 18 | 400 | 1750 | 1450 | +0.5 @ 1450oC | BF (up to @ 700 M3) Hearth & Bottom, Hot Metal Ladle. |
40 | 2 | 2.15 | 18 | 400 | 1750 | 1410 | +0.75@1400 oC | BF Stove @ Wall Brick (up to 700 M3), Coke oven battery |
42 | 1.8 | 2.2 | 18 | 400 | 1750 | 1500 | +0.2 @ 1450oC | BF (up to @ 700 M3) Hearth Bottom & Belly & Ladle, Coke oven battery |
45 | 1.8 | 2.35 | 18 | 400 | 1750 | 1525 | +2.25@1450 oC | BF (up to @ 700 M3) Bosch & Tuyer Zone. Coke oven battery |

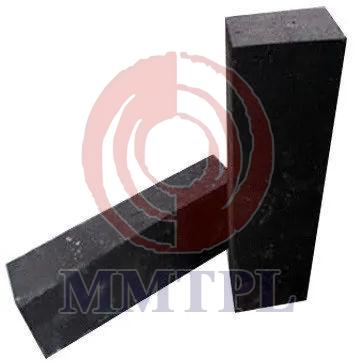

We stand tall as a reliable Manufacturer, Exporter and Supplier of Magnesia Carbon Bricks for Ladle from Gujarat, India. Perfect dimensions, sturdy construction and superb strength are the highlights of our Magnesia Carbon Bricks for Ladle, which is why they are the primary choice of the buyers. Whether it is a small order or bulk one, we will deliver the order within the promised time frame for sure!
Specifications
Typical and Average Data of Magnesia Carbon Bricks for Ladle | |||||||||
---|---|---|---|---|---|---|---|---|---|
MGO % (Min) |
MGO Loss Free % (Min) |
FC % (Min) |
BD gm/cc (Min) |
A.P. % (Max) |
Coked A.P @ 1000oC % (Max) |
CCS Kg/ cm2 (Min) |
MOR Kg/cm2 @ room temp. |
HMOR Kg/ cm2 @ 1400 oC (Min) |
Area of Application |
98 | 90 | 5 | 3 | 3 | 10 | 480 | 160 | 90 | Bottom & Metal Zone |
98 | 88 | 8 | 2.99 | 3 | 10 | 450 | 150 | 90 | -“- |
98 | 86 | 10 | 2.99 | 2.8 | 10 | 400 | 140 | 90 | Slag Zone |
98 | 84 | 12 | 2.92 | 2.8 | 11 | 400 | 140 | 90 | - “ - |
96 | 89 | 5 | 3 | 4 | 10 | 480 | 140 | 80 | Bottom & Metal Zone |
96 | 87 | 8 | 2.98 | 4 | 10 | 450 | 120 | 80 | - “ - |
96 | 85 | 10 | 2.95 | 4 | 10 | 400 | 110 | 80 | Slag Zone |
96 | 83 | 12 | 2.9 | 4 | 11 | 400 | 110 | 90 | - “ - |
95 | 5 | 88 | 2.98 | 4 | 10 | 400 | 110 | 60 | Bottom & Metal Zone |
95 | 86 | 8 | 2.98 | 4 | 10 | 400 | 110 | 60 | - “ - |
95 | 84 | 10 | 2.95 | 4 | 10 | 400 | 110 | 60 | Slag Zone |
95 | 82 | 12 | 2.9 | 4 | 11 | 400 | 100 | 60 | - “ - |
93 | 83 | 8 | 2.85 | 6 | 1A | 400 | 100 | 50 | Free Board & Low Temp Applications |
92 | 82 | 8 | 2.85 | 6 | 1A | 350 | 90 | 50 | -- |
90 | 81 | 8 | 2.85 | 7 | 14 | 300 | 100 | 50 | -- |
Magnesia Carbon Bricks for EAF-UHPF Furnace, which we bring to you, is available with us in ample of brands. We are a dependable Manufacturer, Exporter and Supplier of Magnesia Carbon Bricks for EAF-UHPF Furnace from Gujarat, India. They are strong and are perfect in composition. For price quotes; stay guaranteed since we provide the Bricks at nominal prices!
Specifications
Typical & Average data of Magnesia Carbon Bricks for EAF/UHPF Furnace | |||||||||
---|---|---|---|---|---|---|---|---|---|
MGO % (Min) |
MGO Loss Free % (Min) |
FC % (Min) |
BD gm/cc (Min) |
A.P. % (Max) |
Coked A.P. @ 1000oC % (Max) |
CCS Kg/ cm2 (Min) |
MOR Kg/cm2 @ room temp |
HMOR Kg/ cm2 @ 1400oC (Min) |
Area of Application |
97 | 86 | 12 | 2.98 | 3 | 11 | 420 | 140 | 120 | Hot Spots |
97 | 84 | 14 | 2.96 | 3 | 12 | 400 | 140 | 120 | |
97 | 81 | 16 | 2.9 | 2.8 | 13 | 400 | 140 | 120 | |
98 | 87 | 12 | 2.98 | 3 | 11 | 450 | 110 | 80 | Hot & Cold Spots |
98 | 85 | 14 | 2.96 | 3 | 12 | 420 | 110 | 80 | |
98 | 82 | 16 | 2.9 | 2.8 | 13 | 400 | 110 | 80 | |
96 | 85 | 12 | 2.98 | 4 | 11 | 420 | 90 | 60 | Cold Spots |
96 | 84 | 14 | 2.96 | 4 | 12 | 400 | 90 | 60 | |
96 | 81 | 16 | 2.9 | 4 | 13 | 400 | 90 | 60 |
Leveraging on our rich industry experience and strong tie-ups, we are capable in providing outstanding Normal Fire Clay Bricks to all our esteemed buyers. We make use of quality checked and graded raw materials or their preparation so that the Bricks can impart resistance to alkali and sulphate attack. One can acquire our high abrasion resistant Clay Bricks at the minimal prices!
Specifications
Typical and Average Data of Normal Fire Clay Bricks | ||||||||
---|---|---|---|---|---|---|---|---|
Al2O3 % Min |
Fe2O3 % Max | B. D. gm/cc Min |
A.P. % Max |
CCS kg/cm2 Min |
PCE oC Min |
RUL Ta oC Min |
PLC % Max |
Application Area |
30 | 2.5 | 1.9 | 25 | 200 | 1640 | 1350 | - | General purpose uses |
35 | 2.5 | 2 | 25 | 200 | 1670 | 1380 | 0.5 | For General Purpose up to 1000oC |
40 | 3.5 | 2.05 | 25 | 300 | 1700 | 1400 | 1.5 | General purpose up to 1400oC & safety lining of steel ladles |
45 | 3.5 | 2.15 | 24 | 350 | 1717 | 1400 | 1 | General purpose up to 1400oC & Heat treatment units & Forging unit |
The company is engaged in manufacturing, exporting and supplying a comprehensive range of Alumina Silicon Carbide Carbon Bricks to all the worthy buyers spread all across the globe. It is in its perfect formulation and is widely demanded for its commendable performance. Order retail or bulk, we make sure that the placed order is delivered within the stipulated period of time.
Specifications
Specification of Alumina-Silicon Carbide-Carbon Bricks | |||||||
---|---|---|---|---|---|---|---|
SIC % (Min) | Al2O3% (Min) | F.C. % (Min) | A.P. % (Max) | CCS kg/cm2 (Min) | B.D. gm/cc (Min) | HMOR @ 1450oC (Min) | Application Area |
5 | 45 | 10 | 11 | 400 | 2.76 | 90 | Torpedo Roof |
8 | 60 | 13 | 9 | 350 | 2.65 | 60 | Torpedo Metal Zone |
8 | 68 | 13 | 9 | 350 | 2.9 | 90 | Torpedo Impact |
6 | 70 | 10 | 9 | 400 | 2.85 | 90 | Torpedo Slagline |
