Our Products
We are one of the reputed Manufacturers, Exporters and Suppliers of Blast Furnace Slag. The Blast Furnace Slag is formed when iron ore or iron pellets, coke and a flux (either limestone or dolomite) are melted together in a blast furnace. When the metallurgical smelting process is complete, the lime in the flux chemically combines with the aluminates and silicates of the ore and coke ash to form a non-metallic product called blast furnace slag. During the period of cooling and hardening from its molten state, BF slag can be cooled in several ways to form any of several types of BF slag products.
We own a well-structured warehouse with the help of which we are capable of delivering a flawless range of products. So, you can stay rest assured with us for damage-free products. You can make payments through online methods such as net banking, PayPal, or offline methods such as draft depositing, cash on delivery etc. Our policies regarding payment are swift and transparent.
We hold expertise as a distinguished Manufacturer, Exporter and Supplier of Basic Gunning Mass from Gujarat, India. Our Basic Gunning Mass is widely known for its inclined durability, better functionality and admirable heat resistance. It is also helpful in reducing the cost of production. We have always been the foremost choice of the buyers as we deliver even the bulk orders of Basic Gunning Mass within the predefined time period.
Specifications
Typical & Average Data of Basic Gunning Mass | |||||||||
---|---|---|---|---|---|---|---|---|---|
Setting | MgO % (Min) |
Cr2O3 % (Min) |
SiO2 % (Max) |
CaO % (Max) |
Grading Mm |
CCS Kg/mc2 (Max) |
PLC 1500 oC/ 2 hrs % (Max) |
Appl Temp oC |
Application Area |
Chemical/Ceramic | 82-83 | - | 6.5 | 5 | 0-2 | 250 | -2 | 1750 | For EAF mild & low alloys |
Chemical/Ceramic | 91-95 | 2 | 2 | - | 0-2 | - | -1.5 | 1850 | BOF & EAF making high quality alloys of steel, Converter |
Mg0 (%) in DBM used 95% Min will pass through the maximum grain size indicated |
Our company is a reputed Manufacturer, Supplier and Exporter of High Alumina Castable from Gujarat, India. Fabricated from high grade materials, the castable we offer is efficient, and weather & water resistant. Customers from all over the worlds can avail the superior quality High Alumina Castable from us at highly reasonable rates.
Specifications
Typical & Average Data of High Alumina Castables | ||||||||
---|---|---|---|---|---|---|---|---|
Chemical Analysis | Grain size Mm (Max) | CCS kg/cm2 @ 110oC |
Linear change % (Max) |
Dry density kg/m3(Min) | Refractoriness oC |
Recommended service Temp in oC (Max) | Application Area |
|
Al2O3 % (Min) |
Fe2O3 % (Max) |
|||||||
88 | 0.8 | 5 | 650 | 2750 | 1820 | 1750 | +1.0 @ 1550oC | BOF, Steel Ladle Bottom, Cement Rotary Kiln, etc, |
80 | 1.5 | 5 | 600 | 2650 | 1804 | 1700 | +0.8 @ 1550oC | Steel Ladle spout, Cement Rotary Kiln |
60 | 1 | 5 | 400 | 2200 | 1683 | 1600 | +1.5 @ 1550oC | Cement Rotary Kiln, Nozzles cover tip casting, sponge Iron, Rotary Kiln inlet etc. |
50 | 1.5 | 5 | 350 | 2100 | 1665 | 1550 | +1.0 @ 1550oC | Steel Ladle Back up, Sponge Iron Rotary Kiln, Ladle lip etc, Furnace walls, pre-heater of Rotary kiln etc., |
Customers can get in touch with us for obtaining High Alumina Ramming Mass, Patching Mass. The High Alumina Ramming Mass, Patching Mass offered by us is fabricated in compliance with set industrial standards. Hence, we assure the top quality of our product. We are an illustrious Manufacturer, Supplier and Exporter of High Alumina Ramming Mass, Patching Mass from Gujarat, India.
Specifications
Typical & Average Data of High Alumina Ramming Mass, Patching Mass | |||||
---|---|---|---|---|---|
Al2O3 % | Setting | Grading Mm |
Sintering Temp oC |
Refractoriness oC | Application Area |
38-40 | Air | 0 5 | 1100 | 1700 | Non Ferrous Industries |
68-70 | Chemical | 0-5 | 1100 | 1780 | For High temp application in steel plants |
60-65 | Air | 0-5 | 1100 | 1730 | EAF |
88-90 | Chemical | 0-5 | 1200 | 1780 | -do- |
Our company is an eminent Manufacturer, Supplier and Exporter of Insulating Castables from Gujarat, India. Our Insulating Castables are highly appreciated for their remarkable strength, high efficiency, and resistance to wear and tear. We are proficient in handling bulk orders of Insulating Castables and ensuring their timely delivery all over the world.
Specifications
Typical & Average Data of insulating castables | |||||||||
---|---|---|---|---|---|---|---|---|---|
Product | Service Temp @ (Max) |
Dry Density Kg/m3 Service Temp (Min) |
C.C.S. Kg/m2 |
PLC % |
Thermal conductivity K cal/m/hr @ 500oC |
Fe203 (Max) |
Application Area |
||
@ 110oC (Min) |
@ 1100 oC (Min) |
@ 500oC | @ 1100oC |
||||||
Inc 7 | 1100 | 750-850 | 42352 | 42163 | 0.5 | 1.6 | 0.14 | 8.5 | Back up lining in primary reformers of fertilizer plants, ducting on sponge iron Rotary Kiln |
Inc 9 | 1100 | 950-1000 | 15-20 | 42291 | 0.2 | 1 | 0.28 | 6 | Petroleum Industry reformer heater, stacks, duct in petrochemical |
Inc 11 | 1350 | 1150-1250 | 35-45 | 25-30 35-40 @ 1300 oC | 0.2 | 1 | 0.31 | 4 | Petroleum industry reformer heater, stacks, duct in petrochemical |
Inc 13 | 1350 | 1350-1450 | 50-60 | 30-40 50-70 @ 1300 oC |
0.2 | 0.5 | 0.33 | 4 | Petroleum industry reformer heater, stacks, duct in petrochemical |
Inc 15 | 1350 | 1500-1600 | 80-100 | 60-70 70-90 @ 1300 oC |
0.2 | 0.6 | 0.44 | 3.5 | Petroleum industry reformer heater, stacks, duct in petrochemical |
Inc 9Li | 1100 | 900-1050 | 20-25 | 15-25 | 0.2 | 1.5 | 0.28 | 3 | Petroleum industry reformer heater, stacks, duct in petrochemical |
Inc 11 Li | 1350 | 1150-1250 | 40-50 | 40-50 50-60 @ 1300 oC |
0.2 | 0.6 | 0.34 | 1.5 | Petroleum industry reformer heater, stacks, duct in petrochemical |
Inc 13 Li | 1350 | 1350-1450 | 80-100 | 40-50 | 0.2 | 0.6 | 0.4 | 1.5 | Petroleum industry reformer heater, stacks, duct in petrochemical |
Inc 15 Li | 1350 1650 |
1550 | 100-120 | 75-80 | 0.2 | 0.6 | 0.44 | 1.5 | Petroleum industry reformer heater, stacks, duct in petrochemical |
The company makes available a wide range of Low Cement Castables. Our Cement Castables are preferred in various industries as they can tolerate any kind of weather and have excellent thermal shock resistance. We are a well known Manufacturer, Supplier and Exporter from Gujarat, India and offer Low Cement Castables at highly affordable rates.
Specifications
Typical & Average Data of Low Cement Castables | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Refractoriness Orton (°C) (Min) | Service Temp (Max) | Dry Density 9m/cc | CCS kg/cm2 | P. L. C. | Water required for Casting % | Grain size mm (Max) | Al20 % (Min) | Fe2O % (Max) | Application Area | |||
110 oC (Min) | 1100 oC (Min) | 1500 oC (Min) | 110 oC % (Max) | |||||||||
32 (1717) | 1500 | 2.3 | 600 | 750 | 900 | 0.2 | 1 | 38509 | 6 | 45 | 1 | Sponge Iron Rotary Kiln, Cement Kiln, DRI Kiln, Incinerators |
36(1304) | 1600 | 2.6 | 650 | 800 | 1000 | 0.2 | 1 | 38842 | 6 | 60 | 1.5 | Sponge Iron Rotary Kiln, Cement Kiln, Incinerators |
36 (1804) | 1600 | 2.7 | 700 | 900 | 1100 | 0.2 | 1 | 38842 | 6 | 70 | 1.8 | Cement Cooler, Tundish Ladle back up DRI, Alumina Kiln |
37 (1820) | 1700 | 2.8 | 800 | 1000 | 1200 | 0.3 | 1 | 4.5-5.5 | 6 | 80 | 1.8 | DRI Kiln, Alumina Kiln Sponge Iron Rotary Kiln. |
38 (1860) | 1750 | 2.9 | 900 | 1100 | 1200 | 0.3 | 1 | 38446 | 6 | 90 | 1 | Striking Pads, Launders |
36 (1804) | 1600 | 2.6 | 750 | 900 | 1000 | 0.8 | 1.1 | 38509 | 6 | 60 | 1 | Mullite based special Castables for High Temperature Application |
We are instrumental in the manufacturing, supplying and exporting of Nozzle Filling Mass from Gujarat, India. Our Nozzle Filling Mass has excellent flow ability and longer service life, making it stand our as a high quality product. Owing to our efficient logistic network, we ensure customers all over the world receive their order of Nozzle Filling Mass within stipulated time.
Specifications
Typical & Average data of Nozzle Filling Mass | ||||||||
---|---|---|---|---|---|---|---|---|
MgO % |
SiO2 % |
Fe2O3 % |
Cr2O3 % |
Carbon % |
Setting | Grading Mm (Max) |
L01 @ 900oC % |
Application area |
46-50 | 26-40 | 42100 | -- | -- | Chemical | 42041 | 42039 | Filling Mass for EBT furnace |
80 | 9 | 2 | -- | -- | Chemical | 42071 | -- | Filling Mass for EBT furnace |
-- | 28-40 | -- | 30-42 | 38541 | Free flowing | -10+100 BSS | -- | Tundish Nozzle opening ((Chrome) |
-- | 30.5 | -- | 60.5 (ZrO2) | 2.5 | Free flowing | 75-300 BSS | -- | Tundish Nozzle opening ((Zircon) |
The company has emerged as a highly reliable Manufacturer, Exporter & Supplier of Gypsum Rock. The Gypsum Rock is mainly used in the production processes of the cement and there are two deleterious constituents, namely MgO and NaCl. The Gypsum Rock is available in a size of 0-50 mm, with all the sizes being available upon client request.
Specifications
Analyse Report | 85% - 95% Constituent |
---|---|
CaSO4.2H2O | 80% - 95% |
SiO2 + I.R | 2% Max. |
MgO | 0.55% Max. |
Chlorides | 0.1% Max. |
Size | 0-60mm |
Moisture | 1 - 3% Max. |
NaCl | 0.525 Max. |
Are you looking for the top quality Basic Ramming Mass? If the answer is in affirmative, we are the right choice for you! We are a top-notch Manufacturer, Exporter and Supplier of Basic Ramming Mass from Gujarat, India. The Basic Ramming Mass, offered by us, is appropriate for induction Furnaces. We make sure that the Basic Ramming Mass we produce and offer is flawless and for that we check it many a times. Count on us!
Specifications
Typical & Average data of Basic Ramming Mass | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Product | Setting | Sintering temp oC | MgO % (Min) |
Fe2O3 % (Max) |
Cr2O3 % (Max) |
SiO2 % (Max) |
CaO % (Max) |
Grading mm Max |
Appl Temp. oC |
Application Area |
Mag Ram (IF) | Chemical | 800-850 | 70+1 | - | 8+1 | - | - | 0-5 | 1750 | Medium to high frequency induction furnaces making spl steel |
Mag Ram (LFX) | Chemical | 800 | 85 | - | - | - | - | 0-5 | 1750 | For mild steel & Manganese Steel Induction Furnaces. |
Mag Ram 84 | Chemical | 1200 | 84+1 | - | - | 8.5 | - | 0-5 | 1750 | For construction & repairs of steel operating Basic slags (EAF) furnaces. |
Mag Ram 87 | Chemical | 1200 | 87+1 | - | - | 7.5 | - | 0-5 | 1750 | - do - |
Mag Ram 91 | Chemical | 1250 | 91+1 | - | - | 4.5 | - | 0-2/ 0-5 | 1750 | Various appl in ferrous & non ferrous industries |
Mag Ram 95 | Chemical | 1300 | 94 | - | - | 1.5 | - | 0-5 | 1750 | Ramming of Taphole of BOF, EAF, Converter etc. |
Mag Fet | Chemical | 1200 | 65+1 | - | - | - | - | 0-5 | 1750 | Fettling of slag line of EAF Tundish Coating, Steel launder coating patching of Slag line of Steel ladle etc |
Hearth | Chemical | 1200 | 75+1 | 6 | - | 5 | 10 | 0-6 | 1750 | Dry ramming mass EAF, EBT Bottom (EQ to Anker hearth). |
Ram MC-1 | Chemical | 1550 | 96 | - | - | 1 | 2 | 0-6 | 1750 | Mag Carbon Ramming Mass For BOF & Ladle furnace Fettling Mass for EAF |
The company has emerged as a prominent we are a importer & exporter of Fly Ash Powder from Gujarat, India. The Fly Ash Powder, which is a finely processed powder that is somewhat like glass, is extensively used in the cement industries, concrete plants and highway road fillers. The company offers the finest Fly Ash Powder in safe packaging at the best prices and the deliveries are always made timely and safely.
Details :
Benefits of Adding Fly Ash to Concrete :
Features :
Other Details :
Technical Specifications
Physical Appearance | Cement Color Fly Ash |
---|---|
Quality | ASTM C 618 |
SiO2 | 55-65 % |
Al2O3 | 22-32 % |
Fe2O3 | 01-08 % |
CaO | 01 -04 % |
SO3 | 01 % |
SiO2 + Al2O3 + Fe2O3 | 85 % to 95 % |
7 Days Strength [Fly Ash + Cement] | 80 % minimum |
Autoclave Expansion | 0.08 % |
Fineness | 12 % TO 14V% [ Retention on 45 Micron/325 Sieve] |
LOI | 01% |
Moisture | 01% |

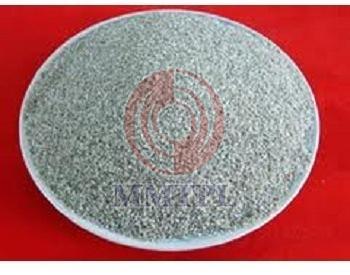

We have garnered acclaim as the Manufacturer, Supplier and Exporter of Ladle and Tundish Covering Compounds from Gujarat, India. Fabricated as per international norms, our compounds boasts of perfect composition, superior quality, and excellent strength. Customers can contact us for ordering Ladle and Tundish Covering Compounds in bulk at most economical rates.
Specifications
Typical & Average Data of Ladle and Tundish Covering Compounds | ||||
---|---|---|---|---|
LO1 @900oC % (Max) | Al2O3 % | Fe2O3 % | SiO2 % (Max) | Application area |
10 | 25-30 | 3 | 50 | Ladle Covering Compound for Iron & Steel |
15 | 62-65 | 3 | 15 | Ladle Covering Compound for Steel |
15-18 | 25-30 | 3 | 45 | Tundish Covering Compound for Steel |
42292 | 60-65 | 3 | 15-20 | Tundish Covering Compound for Steel |

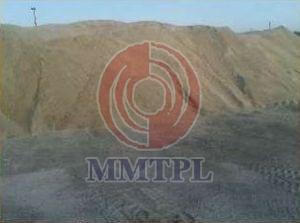

We are engaged in offering the 100% compliant Granulated Blast Furnace Slag (GBFS) to the global market. We are associated with the league of #1 Manufacturers, Exporters, and Suppliers of Granulated Blast Furnace Slag from Gujarat, India. We end up with the best grade slag during the steel-making process. The slag, we offer, does not contain any metallic item, but consist of glass containing silicates and alumino silicates of lime. Â
Features :
Specifications
Blast furn ace Granulated slag analysis report.
Chemical Analysis
Element Name |
Percentage |
---|---|
%SiO2 |
34.90% |
%AI2O3 |
18.78% |
%CaO |
36.32% |
% MgO |
6.70% |
% FeO |
0.42% |
% MnO |
0.14% |
Cao/SiO2 |
1.04% |
Physical Analysis
Sieve Size |
Percentage |
---|---|
Above 6mm |
1.15% |
+5mmto - 6mm |
1.02% |
+4mmto - 5mm |
1.17% |
+3mmto - 4mm |
3.62% |
+2mm to - 3mm |
5.97% |
+1mmto - 2mm |
55.48% |
Below 1mm |
31.59% |
We, along with our team members make all the payment procedures completely transparent that makes us a trustworthy name in the industry. With the assistance of sophisticated packaging system and adroit professionals, we are able to provide flawless lot of products as we ensure complete safety during packaging.
Our company is a reputed Manufacturer, Supplier and Exporter of Thermocoat-M from Gujarat, India. Customers from all over the world prefer our product because of their easy & multiple application methods, great adhesion power and low maintenance. We are proficient in handling bulk orders of Thermocoat-M and ensuring their timely delivery.
Thermocoat-M Zirconia rich refractory coating compound, is developed specially to Protect Refractory linings, Monolithic, Ceramic Fiber Modules, Castables, Kiln/Furnace Steel Shells, Chimneys, Boilers, Kiln Furniture, Ferrous – nonferrous metals, melting crucibles, etc. against severe attacks and sandblasting effect of fumes, chemicals and molten metals at low/high temperature. The use of Thermocoat-M is highly advantageous in industries where continuous high temperature heating, burning- oil – erosion/corrosion is a chronic problem.
Thermocoat-M is zircon rich refractory coating compound containing high percentage (63%) Zirconia and is most ideal for ferrous and non ferrous metals and refectories except Aluminum metal. Thermocoat-M protects from corrosion erosion, chemical fumes and flue gases escaping from heating chambers and severely affecting metals and refractory and reducing their service life.
Applicatios – Procedurer :
Main Chracateristics And Advantages Of Thermocoat-M :
Specifications
Chemichal Analysis | |||||||||
ZrO2 | SiO2 | B2O3 | Al2O3 | TiO2 | Fe2O3 | CaO | MgO | Na | Flouride |
63.00% | 28.86% | 0.63% | 0.85% | 0.34% | 0.068% | 0.91% | 0.34% | 3.00% | 2.00% |
Physical Properties | |||||||||
Colour | Density | Wt.per ft. | Bulk factor |
C.C.C. | Shrinkage At 1200 C |
Thermal Shock Resistance | Coefficient Of Thermal Expansion |
Electrical Proper ties |
Temp. Resis. |
Creamish | 2.90 gm/cc | 178.5 lbs/82 kgs | 1.79 | 297.5 kg/cm2 |
< 0.16 % | Excellent | 4.32 x 10/C | Good Insulation | 1500 C |
Thermocoat - M Refractory Coating for metals, brick lining and refractory Bricks-Castable.
Thickness – 1.5mm To 3mm,
Coverage- 3 kg/sq. meter for 1 mm thickness
Our company is a prominent Manufacturer, Exporter and Supplier of Alumina Castables from Gujarat, India. Fabricated from high grade raw materials and cutting-edge technology, the Castables that we bring forth is efficient as well as weather & water resistant. Buyers from all over the world can obtain our superior quality Alumina Castables from us at highly reasonable rates.
Specifications
Typical & Average Data of Alumina Castables | ||||||||
---|---|---|---|---|---|---|---|---|
Chemical Analysis | Grain size Mm (Max) | CCS kg/cm2 @ 110oC |
Linear change % (Max) |
Dry density kg/m3(Min) | Refractoriness oC |
Recommended service Temp in oC (Max) | Application Area |
|
Al2O3 % (Min) |
Fe2O3 % (Max) |
|||||||
40 | 5 | 5 | 200 | +1.0% @ 1200oC /2 hrs |
2000 | 1450 | 1300 | For Sugar Industry |
45 | 4 | 5 | 250 | +1.0% @ 1400oC /2 hrs |
2100 | 1580 | 1400 | Foundries, Boilers, Burners & various applications |
45 | 4 | 5 | 350 | +0.8% @ 1350oC /2 hrs |
2250 | 1450 | 1350 | Pre heaters Kiln, hood inlet in cement kiln hood ash hopper inlet of power plant etc |
70 | 5 | 5 | 350 | +1.0% @ 1400oC /3 hrs |
2500 | 1680 | 1450 | Boilers & power plant foundries, steel ladle & SMS Roof patching |
We have advanced packaging systems available to make sure that the products are packed using the experts approved packaging stuff. We source the material from the leading vendors in the industry. In our well-constructed warehouse, we store the entire lot under safe conditions and away from various damaging factors such as direct sunlight, moisture, dust, rain and others.
We are ranked among well-known Manufacturers, Exporters & Suppliers of a wide array of Minerals such as Limestone Powder. Sourced from top-notch mines using the latest mining equipment, our entire range is processed at our ultramodern facility under hygienic conditions. Therefore, we boast of our products being 100% pure and reliable. Interested buyers can purchase Minerals from us at market elading prices and expect timely delivery of consignments.
Today, we are well reckoned among the key manufacturers and exporters of Ceramic Textiles. To meet the different needs of the clients, we offer Ceramic Textiles in varied grades and dimensions. Manufactured from the optimum quality materials, our Ceramic Textiles are durable as well as high performing.
Specifications :-
Grades | (1)Fiber Glass Reinforced (2)S.S wire Reinforced |
---|---|
Classification Temperature(oC) | (1)1260 (2)1260 |
Thickness | Cloth - 2,3 mm. Rope is available in diameter 6, 12, 19, 25, 38 & 50. Other diameters on request. Tape - 3mm. Available in 25, 50, 75, 100, 125, 150 mm width. Other widths on request. |
Dimensions (mm) | Cloth - 1 mtr. Wide, 10 mtr. long. Rope & Tape - 25 mtr. Coils |
Density (kg/m2) | Cloth & Tape 1.1 kg/m2 Rope 330 kg/m2 Depending on diameter |
Thermal Conductivity (W/mK) (at mean temperature of 600oC depending on density ) | - |
Application Areas | Available for Temperature 1260°C in FG & SS Reinforced. Cloth is used as thermal curtains, welding curtains, Tape and Rope are used for inspection door seals, gaskets, flange seals, expansion joints, pipe lagging, cable protection, Gas turbine insulation. |
