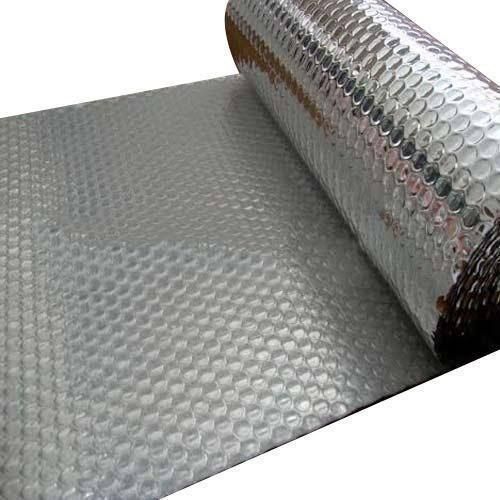

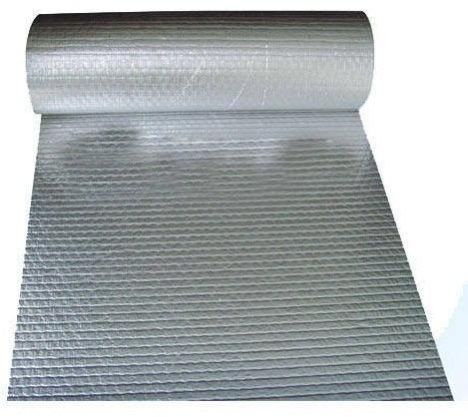

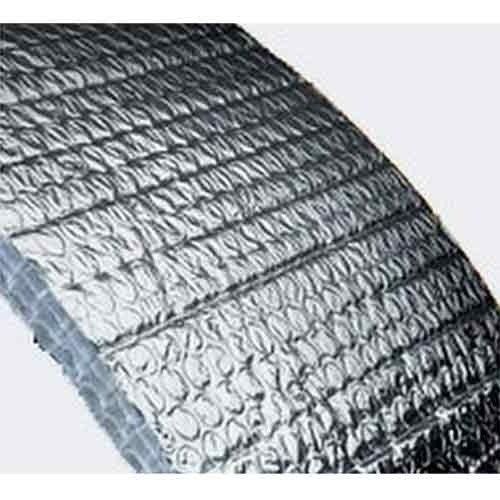

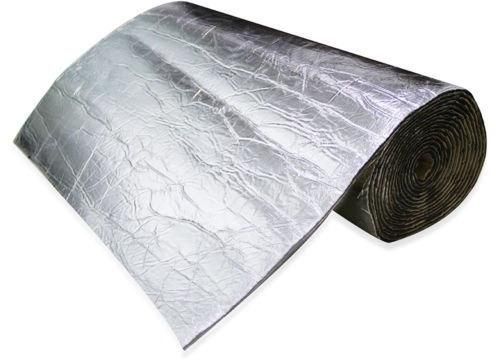

1 Products availableOur product range contains a wide range of Roof Insulation Bubble Sheet, reflective insulation sheet, Industrial Insulation Sheet, METW Radiant Barrier Film and FSK Single Side Reflective Insulation

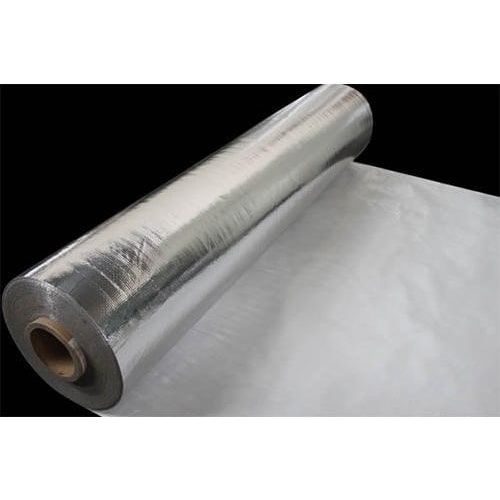

Construction :
3 to 5 layer co-extruded composite material made from UV & FR reinforced PP woven fabric with one side special highly reflective metalized film.
Applications :
Our Minaxi™ METW insulation are mainly used under roof decking, under attic rafters, over existing attic insulation, in floors, walls and crawl spaces, and in industrial and commercial buildings to block radiant heat coming into house through the roof during the summer and retain indoor heat generated during the winter. Also used as a moisture vapor barrier in air conditioning ductworks and cold rooms. It is used as packing material for big machine to prevent moisture and radiant heat to contact machine.
Product Benefits :
Specifications
| Property(Grammage) | Test Method(ISO 536) | Unit(g/sqm) | Results(155–175 (+/-5%)) |
|---|---|---|---|
| Tensile–MD and CD | ASTM D828 | N/25 mm | 300-400 |
| Burst Strength | ASTM D 774 | N/25 mm | 315 |
| Water Vapour Transmission | ASTM F 1249 | N | <1 |
| Temperature resistance | ASTM C 1263 –29 ˜66 ´C | - | Remains Flexible No Delamination |
| Reflectivity | ASTM E408 | % | 0.97 |
| Emissivity | ASTM E408 | % | 0.03 |
| Working Tempreture | - | Celsius | -50 to 110’C |

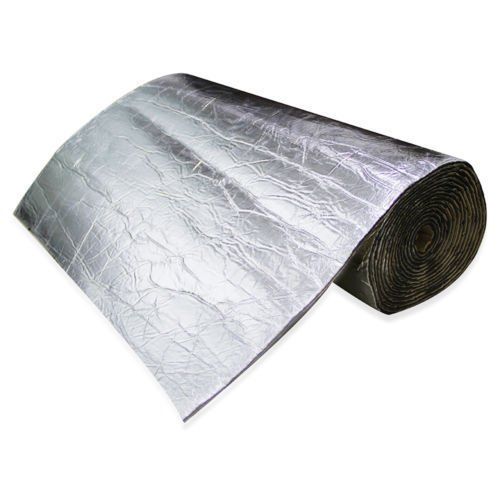

Construction :
35 to 7 layer co-extruded composite material made of Fiberglass Reinforced mesh in kraft paper with two side special highly reflective aluminum foil.
Applications :
Our Minaxi™ FSK-BOTH SIDES insulation are mainly used as aluminium foil roof insulation, reflective foil wall insulation and also could be applied as finishes onto rock wool, glass wool etc. Our product is used as a moisture vapor barrier facing in air conditioning ductwork and cold rooms. This flexible thermal insulation sheets also service as energy insulating barrier in aid duct and HVAC system.
Features :
Specifications
| Property(Grammage) | Test Method(ISO 536) | Unit(g/sqm) | Results(130–150 (+/-5%)) |
|---|---|---|---|
| Water Vapour Transmission | ASTM F 1249 | N | <1 |
| Temperature resistance | ASTM C 1263 –29 ˜66 ´C | - | Remains Flexible No Delamination |
| Emissivity | ASTM E408 | % | 0.03 |
| Reflectivity | ASTM E408 | % | 0.97 |
| Working Tempreture | - | Celsius | -50 to 110’C |

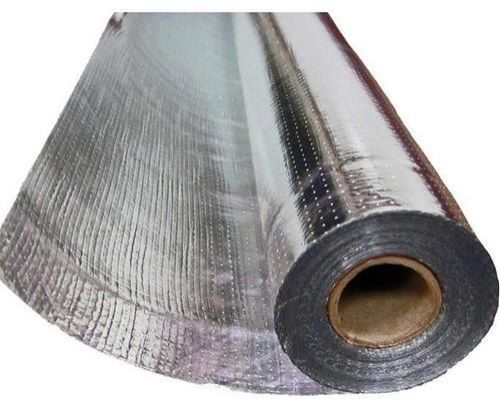

Construction : 5 to 7 layer co-extruded composite material made from UV & FR reinforced PP woven fabric with both side highly reflective Aluminium foil.
Applications :
Our MINAXI® AFWAF aluminum foil PE fabric insulation are mainly used under roof decking, under attic rafters, over existing attic insulation, in floors, walls and crawl spaces, and in industrial and commercial buildings to block radiant heat coming into house through the roof during the summer and retain indoor heat generated during the winter. Also used as a moisture vapor barrier in air conditioning ductworks and cold rooms. It is used as packing material for big machine to prevent moisture and radiant heat to contact machine.
Product Benefits :

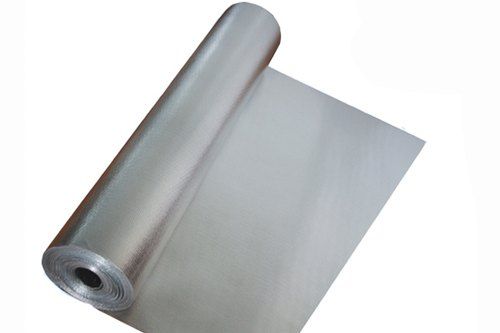

Constructions : 5 to 7 layer co- extruded composite material made from UV FR reinforced PP nonwoven fabric with both side highly reflective Aluminium foil
Application :
Our MINAXI AFNWAF is consist of Nonwoven fabric which is a fabric-like material made from long fibers, bonded together by chemical, mechanical, heat or solvent treatment as backing, reflective aluminum foil as the outer surface laminated together by LDPE / acrylic adhesive, this foil insulation radiant barrier is lightweight, environment friendly, soft and easy to fold; usually be installed in dry environment to prevent heat conduction and thermal radiant.
Product Benefits :
