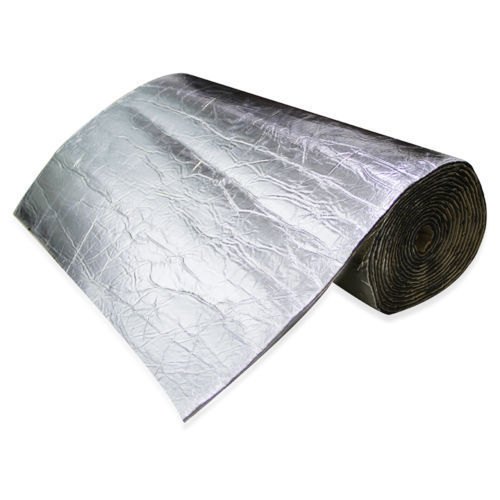

FSK Both Side Reflective Insulation, Color : Silver

₹ 48 / Square Meter

Brand NameMinaxi
Country of OriginIndia
Length250 m
Working Temperature-50 to 110 Degree C
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 5 Years
Nature of Business Retailer
GST No. 24ABKFM4633Q1ZQ

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Brand NameMinaxi
Length250 m
Width1220 mm
Working Temperature-50 to 110 Degree C
GSM200 GSM
Thickness Tolerance+/-7% Maximum
Reflectivity97%

Construction :

35 to 7 layer co-extruded composite material made of Fiberglass Reinforced mesh in kraft paper with two side special highly reflective aluminum foil.

Applications :

Our Minaxi™ FSK-BOTH SIDES insulation are mainly used as aluminium foil roof insulation, reflective foil wall insulation and also could be applied as finishes onto rock wool, glass wool etc. Our product is used as a moisture vapor barrier facing in air conditioning ductwork and cold rooms. This flexible thermal insulation sheets also service as energy insulating barrier in aid duct and HVAC system.

Features :

High reflected rate 97% aluminium foil as outer surface could reflect solar light and block thermal radiant energy; Kraft as liner made it much more stronger than single layer of pure aluminum foil, could be fold- ed into any shape so as to install easily.
Core ID: 76mm (3inch) Standard

Specifications

Property(Grammage)	Test Method(ISO 536)	Unit(g/sqm)	Results(130–150 (+/-5%))
Water Vapour Transmission	ASTM F 1249	N	<1
Temperature resistance	ASTM C 1263 –29 ˜66 ´C	-	Remains Flexible No Delamination
Emissivity	ASTM E408	%	0.03
Reflectivity	ASTM E408	%	0.97
Working Tempreture	-	Celsius	-50 to 110’C
