Our Products

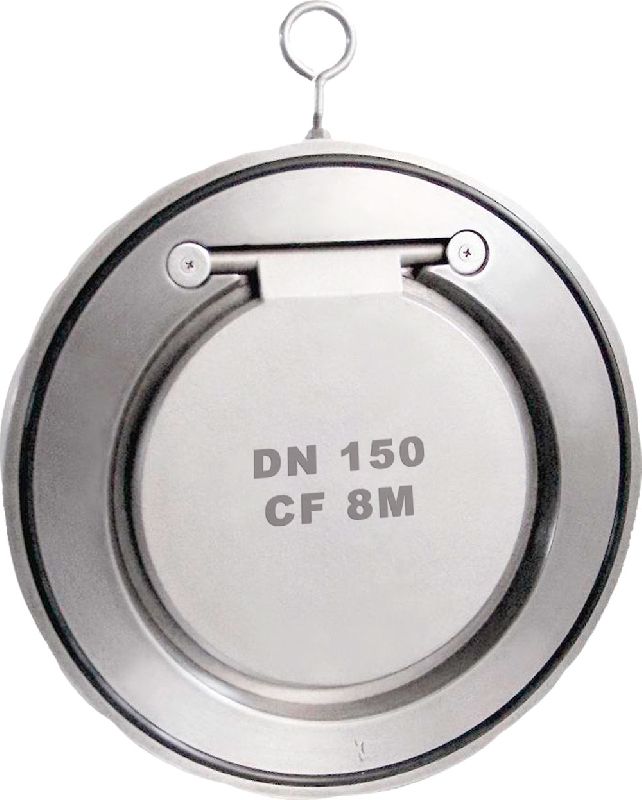

MRAO Wafer type non return valves are suitable to mount between two flanges of 150#, Table-D, E or as per customer requests.These valves are easy to install . Also cost is very economy compare to other valves. The disc will open in the pipe dia. The back pressure of oil, gas, water, or steam can be withstand with soft seats like Neoprene, Ptfe , Silicon, Viton and EPDM O-rings. Any materials valves can be manufactures for all applications.The body material is CI, CS, SS 304, SS 316, Bronze, SS 304L, SS316L etc.
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box and Cartoon
Delivery Time : Ready Stock or depends on quantity

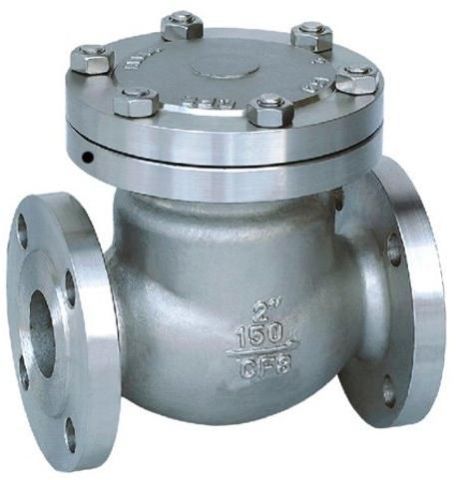

MRAO make Check valve comes with bolted cover design swing type check valve flange end
Design Std. : BS 1868, API 6D, ASME 16.354
Face to Face : ANSI B16.10
End Connection : Flange End ANSI B16.5
Body : CS, SS 304, SS 316, SS 316L
Flap : SS 410, SS 304, SS 316
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden box and Cartoon
MRAO Dual Plate Check Valves are light and compact wafer type check valves that are designed for HVAC and general service applications. Dual plate check valves consist of two spring-loaded plates close when the flow decreases, without the necessity of reverse flow.
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden Box & Carton
Delivery Time : Ready Stock or depends on quantity
MRAO valve contains a disc or gate that slides into the path of the flow to block the fluid path and out of the way of the flow to reopen the path.
There are many designs for the Gate valve, including rising and non-rising stem, knife, slab, and expanding.Gate valves are typically used when a straight-line flow of fluid and minimum flow restriction are needed. They are well suited for high pressure and high temperatures, and can be used for a wide variety of fluid. Because the gate valve is symmetrical, either end can be the inlet, allowing flow to enter through either direction of the valve, otherwise known as bidirectional.
Constructive and functional characteristics
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden box
Delivery Time : Ready Stock or depends on quantity
MRAO Piston Type Forged Steel Check Valve screwed and flanged ends features a Heavy Rugged Body with Bolted Cover Design Designed as per API 602, BS 5352, ASME B 16.34 available in End Connection of Socket Weld, Butt Weld and Threaded (Screwed) BSP or NPT having Pressure Ratings of Class 800# and 1500#.
Forged Steel Piston Lift Check Valve screwed are available in wide range of Body Material like ASTM A 105 – Forged Carbon Steel, ASTM A 182 F 304 / 304L / 316 / 316 L and ASTM A 182 F 11/22 – Alloy Steel to suit various industrial application. For High Pressure & Temperature application Stellited F6 Face Seat & Disc available.
Salient FeaturesA Compact But Extremely Sturdy Design for High Pressure & Temperature Service
Bolted Cover Design, easy to open cover
Piston Type Body Guide Disc
Assure Perfect Alignment of Disc & Seat Ring
Spring Loaded on request
Stellited F6 Disc & Seat optional
High Tensile B7/2H Fasteners
Additional Information:
Payment Terms : T/T
Delivery Time : Ready Stock or depends on quantity

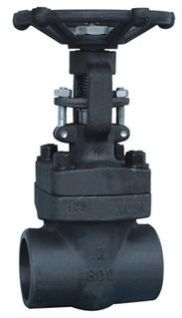

MRAO manufactures superior Forged body, bolted bonnet OS&Y gate valves in a variety of materials, trims, packing types, sizes (1/2" thru 2”) and pressure classes (600 to 1500). The mechanical characteristics make the MRAO wedge gate valve are ideal for bi-directional “total flow system open/shut-off” applications with minimal turbulance and pressure drop.
The valve design conforms to API 600 and B16.34. Face-to-face and end-to-end dimensions conform to ANSI B16.5 and B16.25.
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden box and Carton
Delivery Time : Ready Stock or depends on quantity
MRAO make forged globe valve is manufactured from first grade components and under the strict supervision of experienced quality controllers. Demands of these products are increasing day by day owing to its rugged construction, application specific design, durability and longer functional life. These can be availed in various technical specifications, range and dimensions as per the exact demands of clients. Manufactured by implementing best available cutting edge techniques, these products are extensively acclaimed for application specific design, robustness and high functional efficiency. These are acknowledged for its high tensile strength, robustness and longer service life. Besides, we ensure corrosion resistance of our products. One can avail these products in all standard sizes including 15 mm to 50 mm. These are testes as per ISO 5208 testing standard and acclaimed for flawlessness and consistency. Our products are properly quality checked on various parameters to ensure delivery of defect free range at clients’ end
Additional Information:
Payment Terms : T/T
Packaging Details : Wooden box
Delivery Time : Ready Stock or depends on quantity
