Our Products

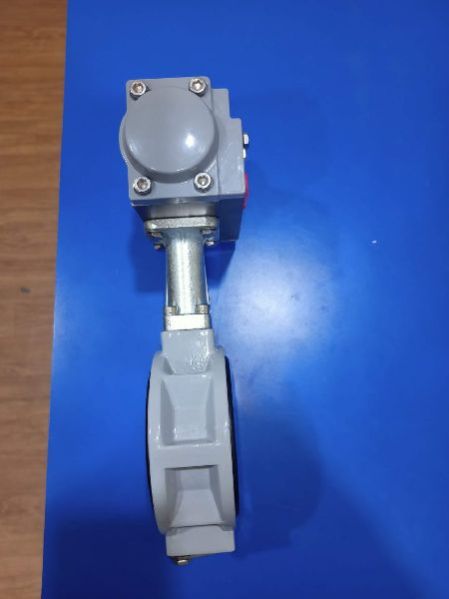

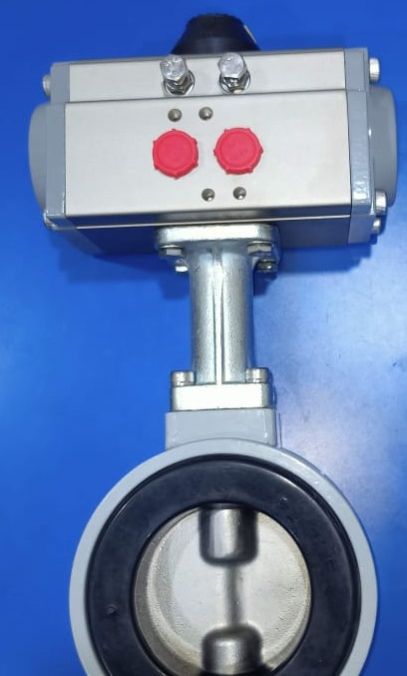

Our product range contains a wide range of Pneumatic Butterfly Valve
Technical Specifications:
Body :Aluminium Diecast / SS304 (CF8) / SS316 (CF8M), Disc :Cast Steel / Ductile Iron / SS304 (CF8) / SS316
Seat :Nitrile / EPDM / Neoprene / PTFE, Leakage Class :Tight Shut Off
Temperature:-20C to120C, Pressure Rating :PN 10 / PN 16 ( PN 20 ON REQUEST)
End Connection :Wafer Type Suitable to 150#, Table 'D' & 'E' Flanges
Pneumatic Actuator -Technical Specifications :
Type : Rack & Pinion, Body :Single Piece Extruded Aluminium
End Caps :Aluminium Die Cast, Shaft :EN8/AISI SS304
Pistons :Aluminium Die Cast, Travel :0 - 90
Action :Double Acting / Single Acting (Spring Return)
Position Indicator :Multifunctional Mechanical Position Indicator
with Mounting Slot as per VDI/VDE3845 and NAMUR
Mounting Base :As per ISO5211 and DIN3337
Additional Information:
Payment Terms : T/T
Delivery Time : Ready Stock or depends on quantity
