Myko Electronics Pvt. ltd.

Features :

• 8 or 16 universal input ( RTD. Thermocouple, 0-5Vdc, 0-20mA or 4-20 mA input signals.
• Onboard 32000 reading per channel storage .
• Parallel Port
• Individual HI / LO alarm with 2 relay outputs
• Additional relay outputs with optional Relay card
• Networkable using Ethernet Port (optional)
• Free PC Based Data Acquisition software
• 21 CFR Part 11 (optional)
• Front end IP65 protection
• 3.5 inch TFT with Touch Screen Control
• Onboard USB Port (Memory stick)

Benefits :

• Easy to configure analog input type with front end TFT touchscreen.
• Logged data is secured as storage media is inside the unit.
• Helps to connect any type of dot matrix printer.
• Relay output for control or activating external alarms.
• Individual Alarm relay (HI / LO) can be provided for all 16 channels.
• Data accessible via LAN.
• Not necessary to pay extra cost.
• Logged data is secured and can not be manipulated by user.
• Panel mounting enclosure which can sustain in harsh environment.
• Easy to use icon menu for setting user parameters with touch interface.
• Logged data can be downloaded to Memory stick and transfer to PC.

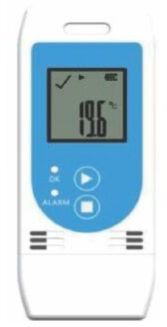

This data logger module can be used to monitor humidity and temperature of greenhouses, warehouses, food transports, aircraft cabins, refrigerated trucks, containers, museums, and HVAC equipment.

It measures and stores up to 32700 relative humidity and 32700 temperature readings over 0 to 100%RH and - 40 to +70°C (-40 to +158°F) measurement ranges by your PC with USB interface. The LCD can show current readings in MAX, MIN and sign of alarms indications.

Features :

• Memory for 32700 readings (16350 temperatures and 16350 humidity readings)
• Dew point indication via Windows Software
• Selectable measuring cycle: 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, 24hr
• Status Indication via Red/Yellow LED and Green LED
• USB Interface for Set- up and Data Download
• User- Programmable Alarm Thresholds for Relative Humidity and Temperature
• Analysis software used to view graph for logging data
• Multi- mode to start logging
• Long battery life

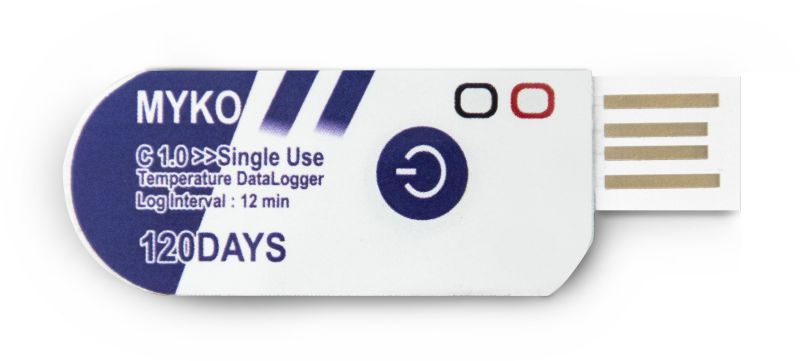

Features :

• Automatic generation of reports in PDF format - firmware
• Low cost - one time use, no need to return to the sender of the load
• Built-in USB interface
• Compact (credit card format), waterproof (IP67), non-toxic - can be used to contact food
• Alarm indicator - flashing LED
• Individual requirements pre-programmed (duration, alarm limits, alarm delay, alarm mode, start delay)
• Certification according to CE, EN12830, RTCA-D0160G

we are a leading manufacturer of 4 channel data logger that is known for its high performance and high applicability. Owing to our 20 years of experience, we are counted amongst the prime manufacturers of 4 channel data logger.

specifications :

• maximum 4 channels
• 4 soft touch keys provided in the front panel for parameter programming
• dimension : (96w x 96h x 170d)mm
•
  application areas :

  • pharmaceutical industry
  • water pumping station
  • iron and steel industry
  • chemical industry
  • petroleum industry
  •
    optional features :

    • real time clock : nonvolatile memory eeprom and battery back up for rtc (real time clock)
    • printout facility :
      • along with rs-232rs-485 serial port with modbus rtu protocol, direct printout on 80 column dot matrix printer by 25 pin parallel port without need of computer (optional) can be given.
      • field programmable print interval 5 to 9999 seconds.
      • • data storage : 5000 readings per channel can be stored for all 8 channels available
        • data security : eeprom (nonvolatile), ensures data retention for 10 years
        • software : windows based data acquisition software (optional)
        •
          specifications :

          • no. Of channel :
            • max. 4 channels
            • • input :
                • fixed input type factory settable for thermocouples (j, k, r, s, t, e, b, n), rtd (pt-100), 4-20ma, 0-1vdc etc
                • thermocouples (j, k, r, s, t, e, b, n) can be set at field through keyboard
                • • display :
                    • 4 digits of 0.56” height 7 seg. Display for process value display
                    • 1 digits of 0.56” height 7 seg. Display for channel no. display
                    • • settings :
                        • 4 soft touch keys on front panel for parameter programming.
                        • • l.e.d. Indication :
                            • 4 l.e.d.s for alarm indication, al1 & al2
                            • • other indications :
                                • temp. Sensor break or open indication on display
                                • for 4-20ma & 0-1vdc linear input under range and over range indication
                                • built in temperature reading in °c or °f user selectable
                                • • alarm :
                                    • 2 independent set points with hysterisis individual for each channels with 2 common relay output of 1 nocnc relay contact rated 230v5a for relay1(al1) & relay 2 (al 2)
                                    • optional individual relay output can br given for each channel with external relay module
                                    • programmable latch and non-latch facility for common relay and led indication.
                                    • • linearisation :
                                        • very high accuracy 0.3% with software linearisation
                                        • • scan rate :
                                            • field programmable channel scan time 1 to 59 seconds for display
                                            • • compensation :
                                                • automatic cold junction compensation for all thermocouples
                                                • automatic wire length compensation for long wire rtd input
                                                • • comm.with pc :
                                                    • rs-232rs-485 serial port with modbus rtu protocol
                                                    • • dimensions :
                                                        • (96w x 96h x 170d)mm
                                                        • • cutout :
                                                            • (92w x 92h)mm
