We offer a complete product range of Smart Ultrasonic Inline Flow Meter, Edible Oil Flow Meter, Wall Mount Ultrasonic Flow Meter, Diesel Flow Meter and Flow Totaliser
Smart Inline Ultrasonic Flow Meter is a new-age water meter that combines the power ofIOT with the latest sensor technologies. The integrated telemetry and battery poweredcapabilities make it easy to manage your water consumption from anywhere and at anytime.The meter is ISO 9001:2015 certified and complies with the guidelines of Central GroundWater Authority (CGWA)
Additional Information:
Packaging Details : Depend
Delivery Time : 1 week
positive displacement Fow meter utilizes specially designed oval rotors at its core, ensuring high accuracy and long life. These oval rotors excel in measuring a wide range of high viscosity uids, making the meter suitable for diverse industrial applications.
Additional Information:
Delivery Time : 5 - 6 Days
ULTRASONIC FLOW METER.
Product Code : MUF 2005
Hand Hold Ultrasonic Flow Meter
Media : Water
Pipeline size : For M 50mm to 700 mm
Temp : 0 -160 C
S 15 mm to 100 mm
Temp : 0 - 90 C
Media : Diesel
Line Size : 1 Inch
Flow range : 20-120 LPM
Max. Pressure : 3.5 bar
Temperature : 120C
Flow Meter will Damaged pressure above
3 bar
We are offering flow totaliser. Based on state of art latest micro controller technology with watchdog feature for fail safe operation. acceptability of various analog inputs from flow transmitter. a high resolution of 20000 counts (max) for flow rate & 999999 counts (max) for flow totalizer & batch counter. highly informative, user friendly display & keyboard interface with indication for flow rate, total & batch. relay control action can be programmable.
Application Of This Flow Measurement Technique.
Effluent Treatment Plants.
Sewage Treatment Plants.
Chemical & Pharmaceutical.
Petrochemicals & Fertilizers.
Water Supply Schemes.
Steel & Aluminium.
Food & Drugs.
Sugar Industries & Distilleries.
Pulp & Paper
Additional Information:
Payment Terms : T/T,
Aluminum body and rotor : Flow measurements of kerosene, Gasoline, diesel, light oil, heavy oil S.S. body and rotor : Flow measurements of Pharmaceutical drug, food oil, and all application
Additional Information:
Payment Terms : T/T,
Delivery Time : 2 - 3 Days

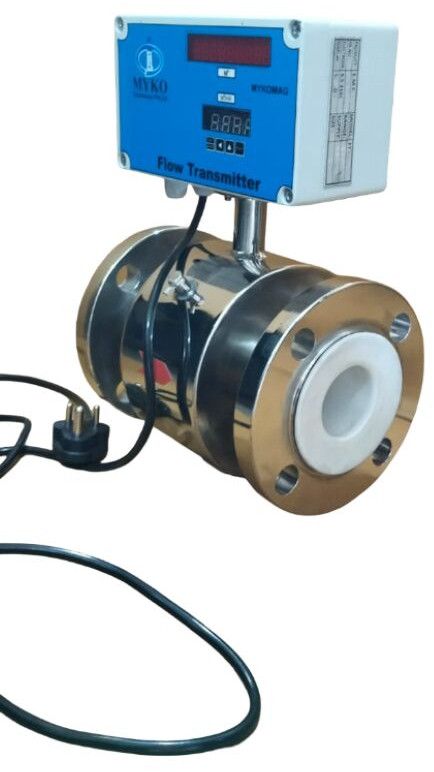

Electromagnetic Flow Meter T 25 mm
* Type:TeflonLining
MOC: Body: SS 316
Line pressure: max 15 Kg/ cm2
Fluid: Water/STP/ETP
Conductivity: minimum 5 S/ cm
Temp: Max. 120 Deg. C
Accuracy: 0.5 % of reading
Electrode: SS 316
I/p Supply: 230 V AC
Output: 4 -20 mA
Protection Class: IP 65
Housing: Aluminum Die. Cast
Electrical Connection: PG 9 Gland. Transmitter Integral
Inbuilt Processor Based Flow Indicator
Totalizer Flow Rate: 4 Digits LED
Total Flow: 9 Digits LED
Line Size: 1 (25 mm)
Flow Rate: 0.5301 m3/hrto 21.20 m3/hr

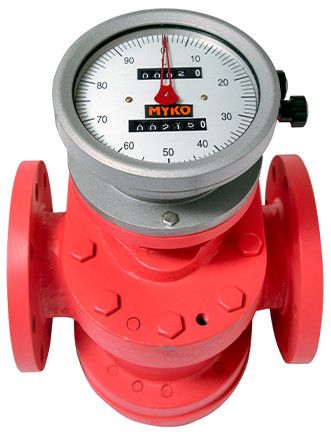

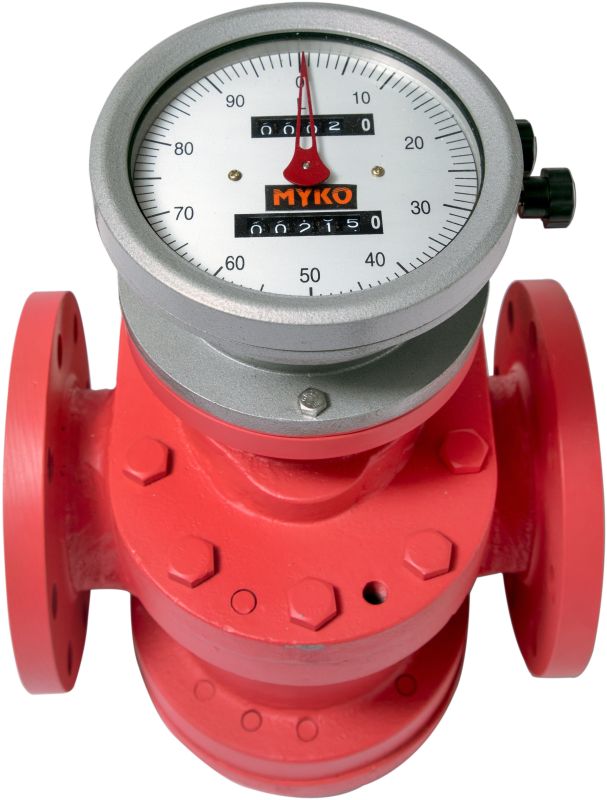

PD Flow meter as per application :
cast iron oval gear Flow meter is widely used in the metering of various oil products and liquids having no corrosion to the cast iron material.
Cast steel oval gear Flow meter is used for high-pressure, low-corrosion liquid media
cast Aluminum oval gear Flow meter is widely used in the metering of low-viscosity low-corrosion (such as gasoline) liquid media and its rotor is made of Aluminum Alloy
stainless steel oval gear Flow meter are widely used in the metering of liquid media with high corrosion, such as acid, alkali, salt and organic compound, and some other liquid, like: milk, alcohol, chemical and pharmace
