Our Products
We offer a complete product range of D.c. Motor, Surface Treatment Plant, Industrial Refrigeration Unit, Los Angeles Abrasion Test Machine and Recirculating Air Conditioning Unit
Code: EEA0004
D.C. Motor.D.C. Motor Manufacturer
With the help of experienced personnel and advanced technology, we manufacture and supply durable and reliable quality D.C. Motors using high quality raw materials. These D.C. Motors are mainly used in various industrial applications as per requirements. Our wide ranges of these motors are appreciated for its unique features like high tensile strength, excellent finish, rust free and durable performance. These motors are available in various sizes, shapes and dimensions as per the requirements of clients.Features:
Permeability steel especially used to make yokeBearings in large size for trouble free and longer life operationsSuperior quality silicon used for armature stampingDurable quality fans are used for coolingFor the nonstop performance, copper conductors are made with high quality insulated materials.Field windings and armatures are impregnated with vacuum pressure for the best insulation strengthTo ensure the low noise, off center rotor construction is in dynamic balance.Uniform/constant pressure brush holdersLoading pulley as well as armature should be dynamically balancedTerminal box fixed with all terminals properlyStrong base frame in C.P. handle, heavy duty bolt and perfect spring of dial type helps in accurate reading of machines.DC motors are ISS 4722 confirmedAvailable ratings: 220V/380V/440V, 0.5H.P TO 10 H.P.Types of windings: Shunt/Series/Compound type.
Code: EEX0001
Basic Electricity Circuit Lab.
Basic Electricity Circuit LabFeaturedThisis ideal for electrical, mechanical, automative, automotive, science, civil & electronics engineering learning.
All necessary equipments for electric circuit experiments such as power supply, function generator, analog and digital meters are installed on the main unit for the requirement of experiment.
The whole essential important topics of electrical circuit learning are studied by different modules
Code: EEH0001
Control Valve Study Bench.
Code: EEH0010
Surface Treatment Plant.Surface Treatment Plant Manufacturer
Teaching objectives
This system covers a wide range of themes which can be developed.
Management of the intense currents.Temperature control.Electrchemistry.Handling of pieces.Automatic.Study of a system with different technologies.Goods and people security.Maintenance of an automated system.
Technical specifications
A) Operative part:
It is composed of a mobile frame, including:
Chemical oil cleaning station.Rinsing station.Acid dipping station.Acid zinc plating station.Horizontal translation motor.Vertical translation motor.Jib crane.Retention tank.Filtering block.Electrical cabinet.Transparent safety guard of the working area.Ventilation hoodThe handling of the jib cranes in the 2 axes Y and Z (horizontal and vertical) is made with a speed of displacement of about 0, 2 m/s.Temperature control of the chemical oil cleaning bath by waves-train and static relays.The feeding of the electrolytic zinc plating bath is made by a current generator of 0-10 A with controlled direct current.Supply of the current generator from the single phase network.Display of tension and current.
B) Operative part:
An electrical cabinet integrating:
A compact PLC with analogical inputs/outputs and TOR, PID regulation, 2 interfaces of communication.A interactive exploitation dialog terminal with 2 display lines. 20 characters. communication with the PLC on the serial line, UNI-TELWAY protocol, 12 keys function keyboard.
10 service keys and 12 numerical keys.Programming made on several application pages and alarms pages.The power supply and people protection devices : differential circuit-breaker, contactors. fuses, transformer.Current generator for the electrolytic zinc plating bath.Technical Functions :
The PLC assures the following functions:
Management of 5 positions on the Y axis in order to ensure the operations of chemical oil cleaning, rinsing, acid dipping, rinsing and zinc coating.Management of 2 positions on axis (high and low).Temperature control of the chemical oil cleaning bath.Manual run.
Protection Of People And Environment :
Aspiration of steams above all the tanks.No waste to the sewage, the wasted baths will be reconditioned in delivery cans of and sent to approved centres for the treatment.The sounding environment is distinctly lower to 70db.People security by the transparent surrounding wall locked wit a key.Auto-control of the door sensor by a security box.
Essential requirements
Electric power supply : 3 x 380V + N + E. 16A.Sanitary water supply.Outside joining for draining of the noxiousness steams by 3m flexible hose.Inside Diameter 150 mm.
Dimensions and weight
Length 2, 4m width 0, 69 m.Height without the hood 1, 7 m.Height with the hood 2, 25 m.Weight 326 kg.Resonant level < 70 dB(A).
Code: EEH0015

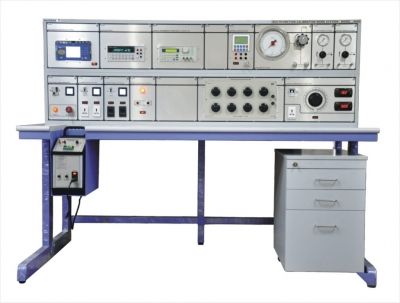

Flow Level Pressure Temperature Control Bench.
Flow Level And Level Flow Cascade Control Bench Manufacturer
Two vats in altuglas.A feeding tank in transparent PVC.Coiled circuit to create a delay.A turbine flowmetery.A rotameter for comparison of the flow measurements on feeding.A rotameter for the disturbance, calibrated of the flow.A pneumatic control valve, Kv = 2, 5.An IP converter.A pressure regulator.Two pressure sensors for the level measurement, situated under the 2 vats in altuglas.Two manual needle valves.A stainless steel centrifugal pump.A master controller.A slave controller.
Display of the measurement and the set point for the two controllers.
Painted steel control cabinet including :
The padlock main switch, The ON light, The restart button, The emergency stop button, The 2 controllers, A 4 positions switch for the choice of:The 1st range level process controlThe 2nd range level process controlThe flow process controlThe cascade process control.Safety connector 0-10 V for input/output of the controllers.The control and the safety device of the pump.
Option:
Option 1 : Data acquisition module ref MAC2 composed with :
A converter RS485/RS232 or USB.A data acquisition software under Windows allowing.Reading PID parameters.The drawing of the curves.The remote control of the regulator parameters.The storage of the values.
Essential requirements
Power supply : 380 V three phases 50 Hz 0.37 kW (other voltages on inquiry).Compressed Air supply: 6 NL/h 6 bars (not supply as standard).PC computer.
Dimensions and weight
1500 x 600 x 2100 mm100 Kg
Code: EEW0005
Industrial Refrigeration Unit.Industrial Refrigeration Unit ManufacturerIndustrial Refrigeration Unit
This bench is mounted on a steel frame with aluminum nuts, with 4 castors, 2 locking
The components are industrial and the bench is instrumented to monitor all parameters following the action of a technical component.Technical specifications
Hermetic compressor, 400 WForced air condenser with variable rate of flow2 refrigeration chambers with independent evaporatorsThermostatic regulation valves and pressure regulatorTemperature regulation with adjustable differentialExchanger for under-cooling of liquidData acquisition system for operational parameters consisting of: 1 floating flowmeter, 2 pressure gauges 0-15 and 0-35 barsTemperature sensors throughout the circuitWattmeter voltmeter ammeterCoolant recovery and refilling system consisting of: needle, liquid and moisture passage indicator, filter dehydrators.
Required services
230 V 50 Hz single phase
Dimensions and weight
180 x 80 x 180 cm 157 kg
We are the main supplier of this product.
Code: Aggregate0004
Los Angeles Abrasion Test Machine.
Los Angeles Abrasion Test MachineLos Angeles Abrasion Test Machine from Civil Mechanical Laboratory India
Los Angeles Abrasion Test Machine for Civil Engineering from Laboratory Equipment Manufacturers India -
