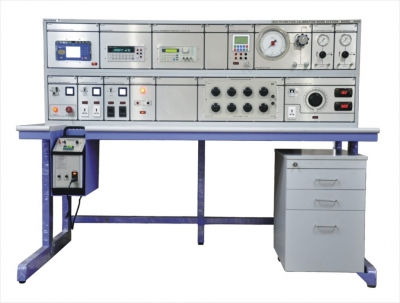

Flow Level Pressure Temperature Control Bench

Flow Level Pressure Temperature Control Bench.
Flow Level And Level Flow Cascade Control Bench Manufacturer
    Two vats in altuglas.
    A feeding tank in transparent PVC.
    Coiled circuit to create a delay.
    A turbine flowmetery.
    A rotameter for comparison of the flow measurements on feeding.
    A rotameter for the disturbance, calibrated of the flow.
    A pneumatic control valve, Kv = 2,5.
    An IP converter.
    A pressure regulator.
    Two pressure sensors for the level measurement, situated under the 2 vats in altuglas.
    Two manual needle valves.
    A stainless steel centrifugal pump.
    A master controller.
    A slave controller.
Display of the measurement and the set point for the two controllers.
Painted steel control cabinet including :
    The padlock main switch,
    The ON light,
    The restart button,
    The emergency stop button,
    The 2 controllers,
    A 4 positions switch for the choice of:
    The 1st range level process control
    The 2nd range level process control
    The flow process control
    The cascade process control.
    Safety connector 0-10 V for input/output of the controllers.
    The control and the safety device of the pump.
Option:
Option 1 : Data acquisition module ref MAC2 composed with :
    A converter RS485/RS232 or USB.
    A data acquisition software under Windows allowing.
    Reading PID parameters.
    The drawing of the curves.
    The remote control of the regulator parameters.
    The storage of the values.
Essential requirements
    Power supply : 380 V three phases – 50 Hz – 0.37 kW (other voltages on inquiry).
    Compressed Air supply: 6 NL/h – 6 bars (not supply as standard).
    PC computer.
Dimensions and weight
    1500 x 600 x 2100 mm
    100 Kg
