Our Product / Services

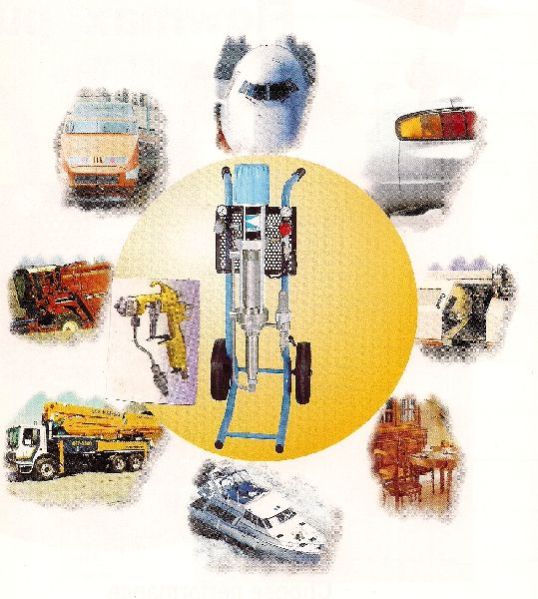

Our product range contains a wide range of Air Assisted Airless Spray Painting Machine, Spray Painting System, Airless Spray Painting Machine and Airless Spray Painting System
We are one of the preeminent Distributor of Air Assisted Airless Spray Painting Equipment in the market. Our range of Assisted Airless Spray Painting Equipments are designed to provide sprayers at competitive prices, robust industrial assembly, able to apply a wide range of industrial coatings whilst providing the very best quality of sprayed finish.
Our Range :
Attributes :
Applications :
Gives Excellent Results with :
NSD Air Assisted Airless Models :
| Pump Ratio | 10/1 | 17/1 | 20/1 | 25/1 | 30/1 | 34/1 | 40/1 | 45/1 | 53/1 |
|---|---|---|---|---|---|---|---|---|---|
| Air Consumption at 6 Bar(Nm3/h) | 1.9 @ 4 bar | 11 | 5 to 22 | 5 to 22 | 22 | 22 | 21 to 43 | 21 to 43 | 180 |
| Free Fluid Output (lts/min) | 1.1 | 3.6 | 1 to 6 | 1 to 6 | 3.6 to 10 | 3.6 to 10 | 6 to 14 | 6 to 14 | 7.4 |
| Max. Pressure Output (Bar) | 60 | 102 | 120 | 150 | 180 | 200 | 240 | 270 | 318 |
| Sound Level | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | 72 |
| Pump Construction | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Mounting | Wall, Portable & Cart Mounted | Wall, Portable & Cart Mounted | Wall, Portable & Cart Mounted | Wall, Portable & Cart Mounted | Wall, Portable & Cart Mounted | Wall, Portable & Cart Mounted | Wall, Portable & Cart Mounted | Wall, Portable & Cart Mounted | Wall, Portable & Cart Mounted |
| Max. Operating Temp(0C) | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 |
| Weight (KG) | 5.5 | 20 | 9 to 35Kg | 9 to 35Kg | @27 | @27 | 22 to 66 | 22 to 66 | 100 |
| No. of Guns | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Automatic Air Assisted Airless Gun Spray Gun :
| Model | Model 1 |
|---|---|
| Max. fluid Pressure(Bar) | 200 |
| Maximum air inlet pressure (bar) | 6 |
| Fluid Pressure Range (bar) | 20 to 200 |
| Recommended atomization air pressure (bar) | 1 - 3 |
| Fluid output (l/min) | Depends on the tip used |
| Maximum Fluid Temperature (oC) | 50 |
| Air consumption (m3/h) | 3 - 7.5 |
| Wetted parts | Stainless steel - treated Stainless steel |
| Trigger air pressure (bar mini) | 3 |
| Seat | stainless steel, carbide or polyacetal as an option |
i. conventional, hvlp & lvlp paint spray system
a. gravity feed centre & side cup system
b. pressure feed spray painting system
c. suction feed spray painting system
ii.air assisted airless paint spray system
iii. airless paint spray system
iv. electrostatic paint spray system
v.high viscous paint spray system
vi. airbrushes paint spray system
vii. powder coating spray system
.

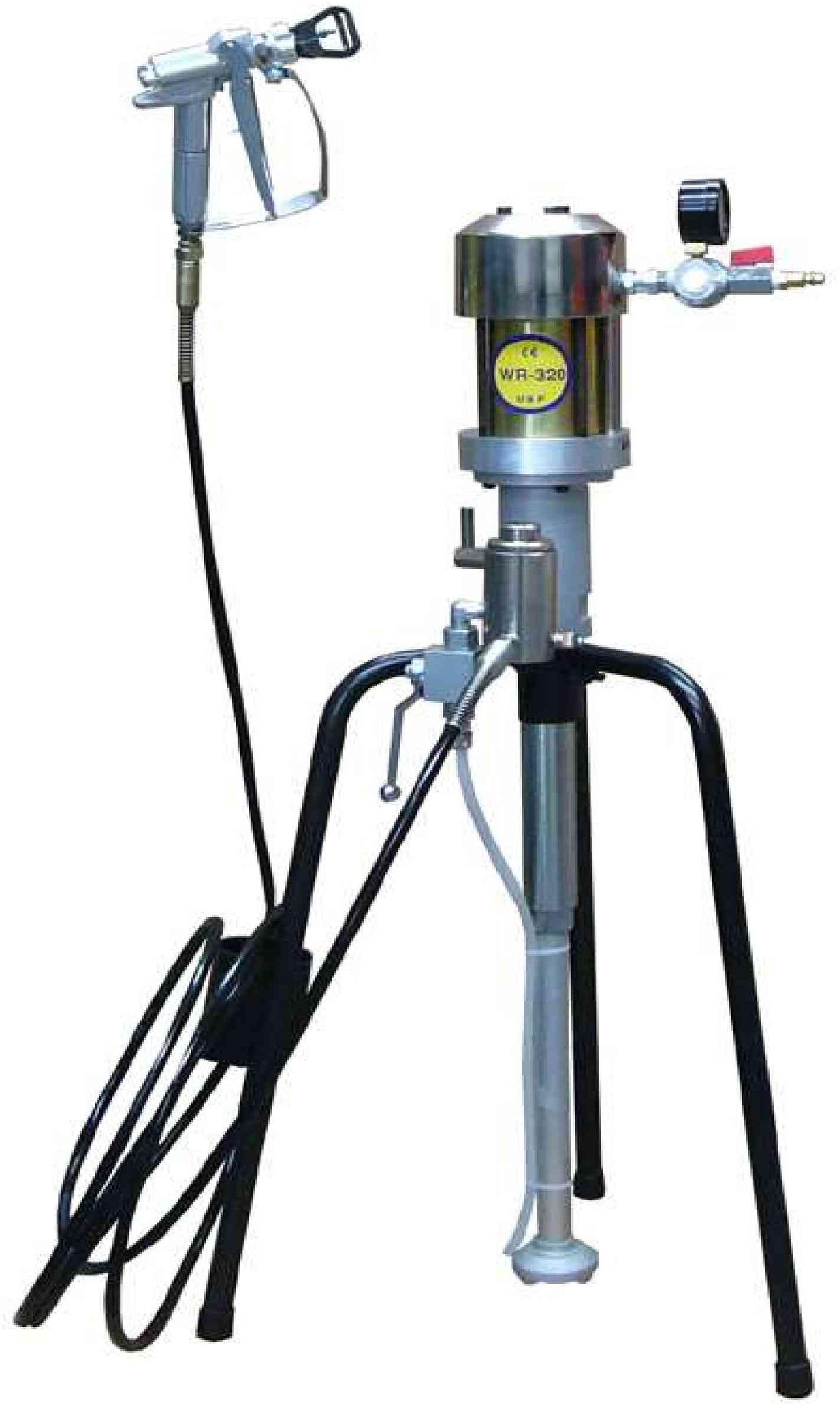

we are one of the supreme distributors of airless spray painting equipment in the market. Our airless spray painting equipment has high flow rate, are light and easy to handle with precision engineered parts & components. Our airless spray painting equipment is provided with a rust proof stainless steel coating and high performing hydraulic circuits. Our range is durable and requires overall low maintenance cost.
our range :
attributes :
applications :
uses :
Specification For Air Operated Airless Equipment
| Pump Ratio | 17/1 | 20/1 | 25/1 | 30/1 | 34/1 | 40/1 | 45/1 | 53/1 | 63/1 | 65/1 | 80/1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Air Consumption at 6 Bar(Nm3/h) | 11 | 5 to 22 | 5 to 22 | 22 | 22 | 21 to 43 | 21 to 43 | 180 | 157 | @67 at 4 bar | 240 |
| Fluid Out at 60cpm(lts/min) | 3.6 | 1 to 6 | 1 to 6 | 3.6 to 10 | 3.6 to 10 | 6 to 14 | 6 to 14 | 7.4 | 14.4 | 14.4 | 13.6 |
| Max. Pressure Output (Bar) | 102 | 120 | 150 | 180 | 200 | 240 | 270 | 318 | 378 | 390 | 480 |
| Sound Level | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | Less than 72dba | 72 | 72 | 78 | 72 |
| Pump Construction | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Packing Construction | Teflon & Leather | Teflon & Leather | Teflon & Leather | Teflon & Leather | Teflon & Leather | Teflon & Leather | Teflon & Leather | Teflon & Leather | Teflon & Leather | Teflon & Leather | Teflon & Leather |
| Mounting | Cart Mounted | Cart Mounted | Cart Mounted | Cart Mounted | Cart Mounted | Cart Mounted | Cart Mounted | Cart Mounted | Cart Mounted | Cart Mounted | Cart Mounted |
| Max. Operating Temp(oC) | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 | 50 to 60 |
| Weight(KG) | 20 | 9 to 35Kg | 9 to 35Kg | @27 | @27 | 22 to 66 | 22 to 66 | 100 | 90 | @90 | 135 |
Additional Information:
Payment Terms : T/T
