Our Products
We offer the best product range of Aquasol Online Tds Meter, Aquasol Pen Type EC TDS Meter, Aquasol Table Top TDS Meter and Aquasol Handheld TDS Meter Low.
Monitoring of TDS / Conductivity is commonly required in a wide variety of industries ranging from water chemical pharmaceutical food processing etc. So our online range of meters helps to monitor the process TDS / Conductivity/Temperature on continuous basis. These reliable accurate and robust meters are designed with a compact housing which fits in standard industry panel with 1/16 DIN fitting. Also these meters can be easly calibrated and can display multiple parameters at the same time.
Technical Details
| Parameter | TDS | Conductivity | Temperature |
|---|---|---|---|
| Model No | AO-TDS-01 | ||
| Range | 0 to 13.00 PPT | 0 to 20 mS/cm | 0 to 90 Deg C |
| Accuracy | ±1% | ±1% | ±0.2 |
| Resolution | 1ppm | 1 S | 0.1 Deg C |
| Power | 9V DC (2 Pin 230VAC Adaper Provided) | ||
| Dimensions | 45mm x 45mm x 110mm Mounting Details: 1/16 DIN Panel Mount (Cut out Size : 45 x 45 mm)(Depth: 110 mm) | ||
| Meter Weight | 75g | ||
| Sensor* (By Defualt) | Model: Conductivity Industrial Electrode Code: AME-CN-IGT Qty: 1. Specs:- Process Connection: 3/4″ Temp I/P: 30K Thermister Material: Glass Sensor with PVC Housing. Dimensions: 28 x 165 mm Lenght: 5M Temperature Range: Upto 90 DegC |
||

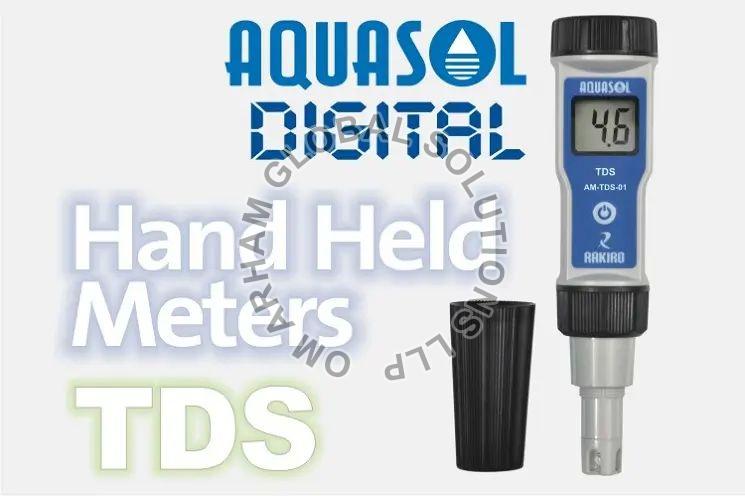

Our range of portable Pen Type meters are economical range of easy to use and reliable hand held pen type meters. An important feature of the testers is the compact single chamber design. The meter gives accurate readings with its Built-in temperature sensor and can be easily calibrated. The meter is provided with an Auto Off function o enhance the battery life of the LR44 batteries. Also a hold function helps the user to Read and Record results with ease and convenience. These meters are cost effective and come encased in a protective carrying pouch for safety and portability.
Features :

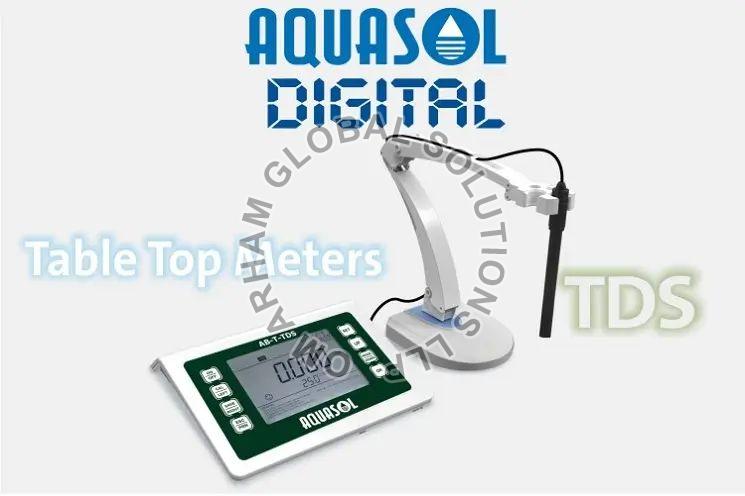

analyses for parameters like Conductivity & TDS in industries we have specially developed reliable accurate and robust Table Top meters. These meters are available with a built in Bluetooth which enhances the measuring performance and provides accurate readings. The meters have multi parameter option i.e. same meter can analyse different parameters by just adding an electrode. All meters are advance microprocessor based with rugged housing & splash proof keyboard. It has a optional Built-in Bluetooth function for remote printing and Android APP for mobile interface.
Features :
Details
| Parameter | Conductivity | TDS | Salinity | Temp |
|---|---|---|---|---|
| Range | 0.0 to 200.0 mS/cm | 0.0 to 100 PPT | 0.0 to 100 PPT | 0 to 100 Deg C |
| Accuracy | ±1% FS | ±1% FS | ±1% FS | ±0.2 |
| Resolution | 0.1μS/cm to 0.1mS/cm | 0.1 PPM to 0.1 PPT | 0.1 PPM to 0.1 PPT | 0.1 Deg C |
A TDS Meter indicates the amount of total dissolved solids (TDS) in a solution. Since dissolved ionized solids like salts and minerals contribute to the conductivity of a solution a TDS Meter measures the conductivity of the solution then converts that figure to an estimated TDS reading. They are known for ascertaining fast and accurate measurement of total dissolved solids in given liquids. This instrument is ideal for testing liquids like natural water drinking water treated water waste water brine solution sea water and soluble salt content in liquids.
Features:
