Our Products
The company has carved a niche for itself as a highly acclaimed Manufacturer and Supplier of PTFE Sleeves in Sonipat. The company is involved in the production and marketing of a high quality range of the PTFE Sleeves known for its smooth finish. The PTFE Sleeves have numerous features like tight tolerance and can be availed at the best prices on time.
Properties : Resistant to attack by lubricants, Hydraulic, aircraft or rocket fuel, atmospheric conditions, sunlight, acids, moisture and virtually all chemicals
Sleeves Conforming To JSS Specifications
MM) \ S NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal ID | 0.50 | 0.75 | 1.00 | 1.50 | 1.50 | 2.00 | 2.00 | 2.50 | 3.00 | 3.50 | 4.00 | 5.00 | 6.00 | 7.00 | 8.00 | 9.00 | 10.0 | 12.0 |
Wall Thickness | 0.25 | 0.25 | 0.30 | 0.30 | 0.40 | 0.30 | 0.40 | 0.40 | 0.40 | 0.50 | 0.50 | 0.50 | 0.50 | 0.50 | 0.50 | 0.50 | 0.50 | 1.0 |
Over All Diameter | 1.00 | 1.25 | 1.60 | 2.10 | 2.30 | 2.60 | 2.80 | 3.30 | 3.80 | 4.50 | 5.00 | 6.00 | 7.00 | 8.00 | 9.00 | 10.0 | 11.0 | 14.0 |
We are major Manufacturer and Supplier of PTFE Electrical Tapes. The PTFE Tapes possess uniform thickness and are pinhole free products. The PTFE Tapes have been known for very less deviation across the edges that offer. The PTFE Tapes have tight tolerance to thickness and width and they consume virgin PTFE resin, which is handpicked from China and Russia.

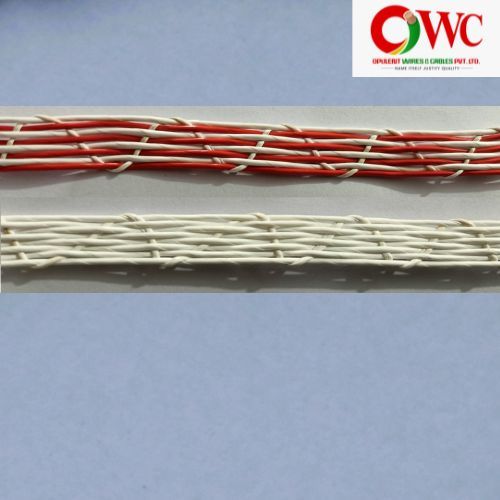

The company has mastered the art of the production of the PTFE Ribbon Cables and is a major Manufacturer and Supplier in this domain. The company offers the finest quality PTFE Ribbon Cables to the clients and the durability and performance of these cables is exceptional. The company’s major export product is the PTFE Ribbon Cable.
Highlights
The company has emerged as a highly reliable Manufacturer and Supplier of PTFE Insulated Multicore Cables. The PTFE Insulated Multicore Cables are known for their unmatched quality as well as high durability. The company offers the PTFE Insulated Multicore Cables at the market leading prices on a timely basis.
Details
PTFE Insulated Multi Strand Multi Core Twisted Only Cables
PTFE Insulated Multistrand Single And Multi Core Screened Cable (Unsheathed)
PTFE Insulated Multistrand Single / Multi Core Screened & PTFE Sheathed Cable
The company has cemented its position in the markets as a Manufacturer and Supplier of PTFE RF Coaxial Cables. The PTFE RF Coaxial Cables are manufactured using the best grade raw materials as well as advanced technology and latest manufacturing techniques. The PTFE RF Coaxial Cables can be availed at the market leading prices.
Specifications
RG | Zo or Characteristic Impedance(Ohm) | Capacitance (pf/m) | Continuous working voltage (VRMS) |
---|---|---|---|
196 | 50 | 95 | 750 |
195 | 95 | 52 | 1100 |
188 | 50 | 98 | 900 |
187 | 75 | 66 | 900 |
142 | 50 | 94 | 1400 |
141 | 50 | 94 | 1400 |
The company is a distinguished Manufacturer and Supplier of PTFE Thermal Cables. The PTFE Thermal Cables are available in a wide array, which ranges from 150-3000 watts and can be availed in various colors. The PTFE Thermal Cables are most handy in cold places and offer reliable and consistent performance.
Applications
