Opulent Wires & Cables Pvt. Ltd.
Sonipat, Haryana, India
gstGST : 06AABCO5062G1ZN Verified Add Review

Wires #1434751

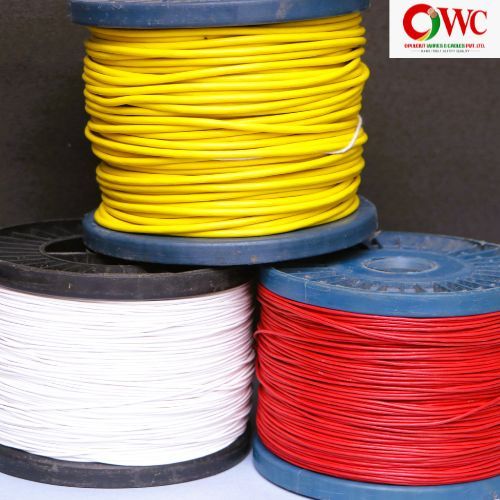

PTFE Hook Up Wires

  • Insulation PTFE
  • Temperature -65oC To + 260o C
  • Conductor SPC/NPC/Bare Copper or as per customer requirements.
  • Properties Resistance to fire, chemicals, acids, sunlight, moisture and corona.
  • Voltage grade 250V/ 600V/ 1000V or as per customer requirements.

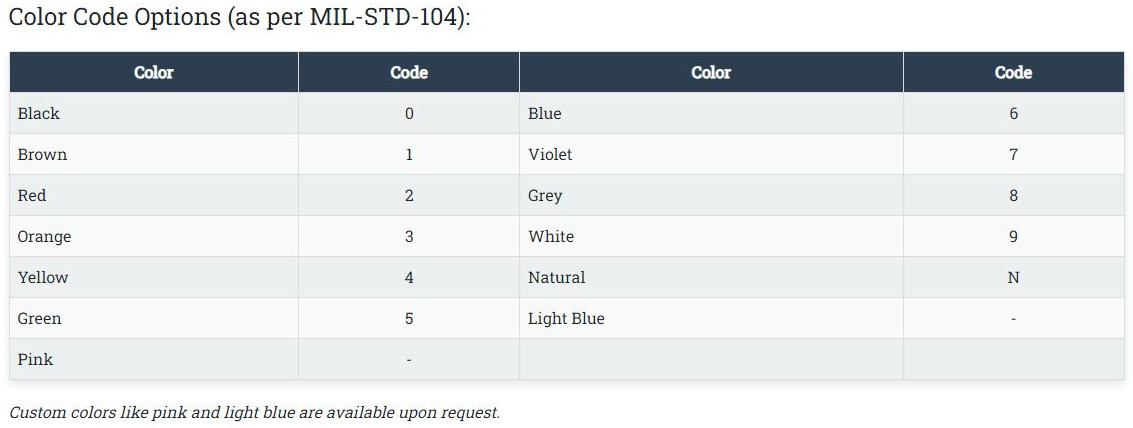

  • Colour All Electronic Colours, Bi-Colours & Tri-Colours.
  • Size As per Standards or customer specific requirements.

The company has come up as a highly efficient Manufacturer and Supplier of PTFE Hook Up Wires in India. The company offers a premium quality range of the PTFE Hook Up Wires to the clients all over the country. The PTFE Hook Up Wires are available in their standard as well as customized forms and can be availed at the market leading prices.

Range (Standard products meet the MIL-W-16878 Standard)

  • Type ET, 250 volts
  • Type E, 600 volts
  • Type EE, 1000 volts


Features

  • Operating temperature range of -65 to 260oC
  • Ideal for complex, high density wiring packages
  • Excellent mechanical and electrical properties
  • Small size and light weight
  • Propagates neither flame nor fire
  • Resistance to solder iron damage
  • Withstands most solvents
  • Range of standard and custom designed



Single Strand PTFE Insulated Hook-Up Wires (Unscreened)


Download Detail File : Click Here

Multistrand PTFE Single Core Cables (Unscreened)


Download Detail File : Click Here
View Complete Details

Ptfe High Voltage Wires

We are offering ptfe high voltage wires.
Conductor size
awg 26 to awg 10
insulation
corona resistant ptfe
voltage rating
4, 000 v ac to 22, 000 v ac or 9, 000 v dc to 49, 000 v dc
operating temperature
cryogenic rated to +180c
conductor material
standard silver plated copper or as per customers requirement.
Jacket colour
all electronic colours, bi-colours & tri-colours.
View Complete Details

Ptfe Hook Wire

We are offering ptfe hook wire.
I. Type et, 250 volts
ii. Type e, 600 volts
iii. Type ee, 1000 volts
conductor
spcnpcbare copper or as per customer requirements.
Insulation
ptfe
properties
resistance to fire, chemicals, acids, sunlight, moisture and corona.
Voltage grade
250v 600v 1000v or as per customer requirements.
Temperature
-65 c to + 260 c
colour
all electronic colours, bi-colours & tri-colours.
Size
as per standards or customer specific requirements.
View Complete Details

Ptfe Insulated Wire

Located in Sonipat(India), we ensure safe and secure deliveries, throughout the country, within the agreed time frame. Owing to our immense expertise in this domain, we have carved a niche as a Supplier of Ptfe Insulated Wire in the market.
View Complete Details

PTFE Teflon Wire

  • As per customer requirement 24X7 Service
We are happy to introduce as a well-established indian company with our own production facility in haryana, india. we are the manufacturer and exporter of all kinds of ptfe (teflon) wires, cables, sleeves & tape including hook-up wires, ptfe multi-core cables, ptfe rf co-axial cables, ribbon cables, thermocouple & compensating cables, ptfe electrical sleeves, ptfe high voltage cables, ptfe thermal cables. We have been supplying ptfe wires and cables for industrial, defence and space applications.
View Complete Details
