Our Products

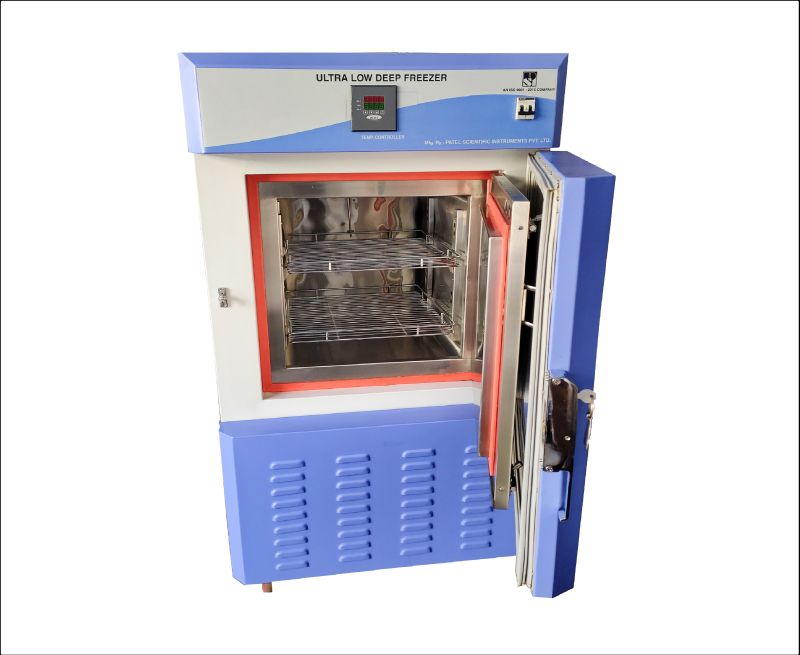

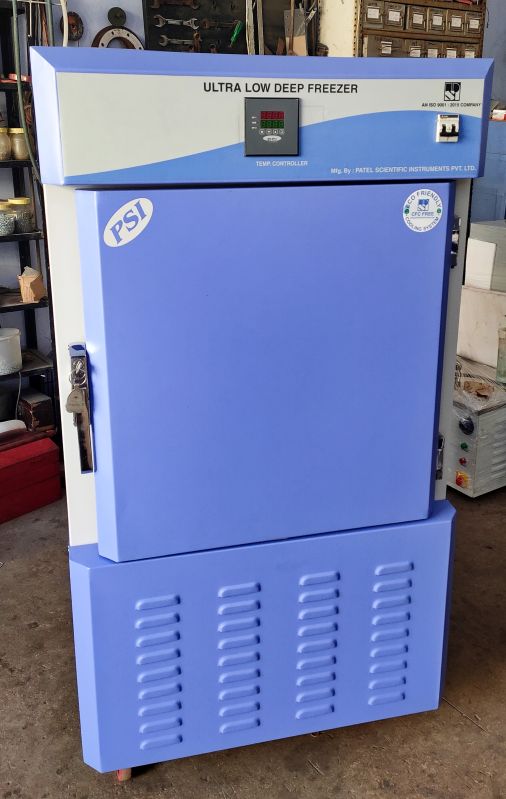

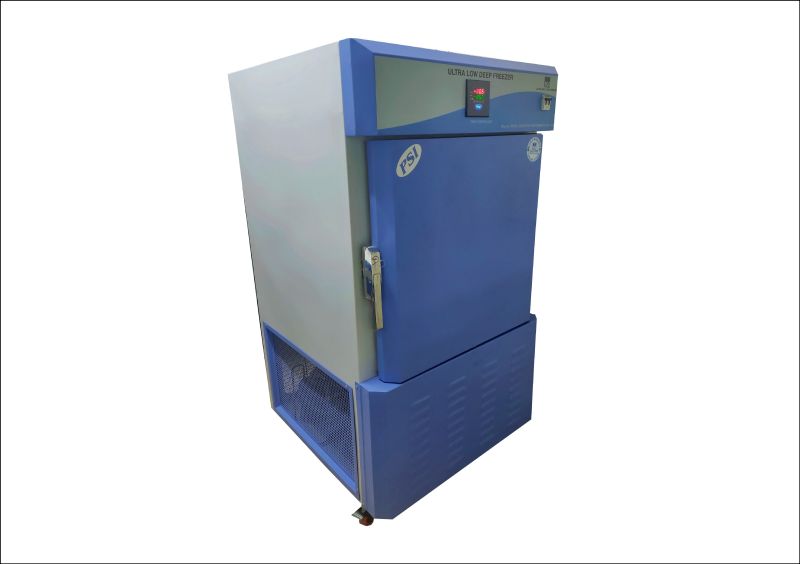

Our product range contains a wide range of Ultra Low Deep Freezer
Refrigeration System
Single stage cooling system for -45°C
Cascade stage cooling system for -86°C
Hermetically sealed cooling system
Cold air is protected by the insulated inner plastic doors
Efficient evaporator with maximum contact to chamber watts for fast cooling down
Thickness 130mm, high density polyurethane foamed insulation
CFC Free refrigerants
Technical Structure
The reliable and durable Bristol compressors and quite remaining fans with low noise level around 50 DBA
Heavy-duty casters with built-in adjustable stands
Stainless steel Chamber with rounded corners for easy cleaning
Built-in 3 access port for checking inside
Heated door seals by hot gas defrosting system prevents ice to build up
Automatic voltage compensator protects electric ports form the damages by electric Fluctuation
Start relays and capacitors minimize electrical load and reduce the energy consumption
Optional Co2
Dual layered air insulated inner doors retain cold air in chamber
Quality Control
Temperature test of each compartment
Insulated test
Pressure test of refrigeration system
Overloading & Overheating tests with difference voltage and cycles
Cu. Ft. Size
