Patel Scientific Instruments Pvt ltd

Odhav, Ahmedabad, Gujarat

Our extensive range of B.O.D. Incubators has been designed especially for biological Oxygen demand determination & other applications like general incubators, Serum studies & Enzyme assays test. We can also customize the B.O.D. Incubators to suit the varied requirement of the clients with in stipulated time frame.

Technical Specifications :

Double walled cabinet mounted on castor wheels

Inner chamber made of S.S.304 & Outer chamber made of M. S. Powder coated

Full Length inner Glass door permit inspection of with out disturbing the Temp.

Temp. Range 5’C to 60’C

Temp. Controlled by solid State Digital controllers housing all the control with PT-100 sensor illumination light are provided for viewing.

CFC Free hermetically sealed compressor provide temp. For below ambient condition.

Air circulation fan for maintain Temp. Uniformity through out the chamber.

Flush fitting insulated double walled door

The Chamber is provided with modular removable shelves made of S. S. For complete flexibility in use

To work on 230 volts 50 H2.

Safety Features : Built in Temp Deviation Safety thermostat for overshoot Temp. Cut off system. HRC Fuses for compressor heater & mains Time daily circuit for safety of compressor.

Special Care : A suitable K V. A. Servo stabilizer is strongly recommended.

This B.O.D. incubator is available in below sizes:

• 3 45 x 45 x 45 Cm. 90 2
• 6 50 x 50 x 70 Cm. 175 2
• 10 55 x 55 x 90 Cm 285 3
• 12 60 x 60 x 90 Cm 340 3
• 16 70 x 70 x 95 Cm 450 4

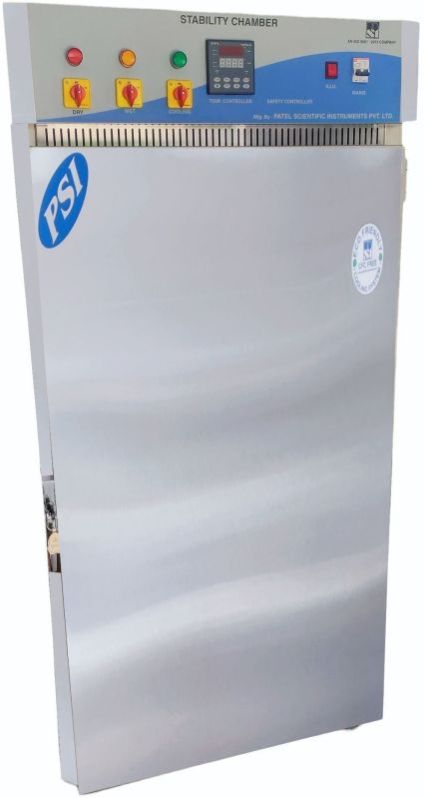

PSI Test Chambers are developed as a result of intensive R & D, and confirming international standards, our offering services are Calibration, validation and comply IQ, OQ, and PQ protocols.*

ICH GUIDELINES*

PSI chambers are specialized designed to carry out stability & shelf  list test on drug & drugs substance according ICH Guidelines.

TECHNICAL SPECIFICATIONS :

Temperature Rang: 10.0’C to 60.0’C. Accuracy / Uniformity :+_0.1’C / +_1.0’C

Humidity Range: 40% to 95% Rh. Accuracy / Uniformity +_2%RH/+_3%RH

Temperature / Humidity Display : Digital LED 3 ½ Digit, Resolution :0.1’C / 1% RH

Control : Microprocessor based PID Control with auto tune CE Marked

Temperature Sensor: PT -100,

RH Sensor: Direct Capacitance type.

Heating : ‘U’ Shaped Nichrome wire heater in SS Sheathing

Cooling: CFC Free Copeland compressor utilizing R 134A eco friendly refrigerant

Steam Injection : Boiler with reservoir made of thick stainless steel, with heater, water inlet control, low water level safeguard and insulation

Air circulation : Flange motor with impeller / Blower

CONSTRUCTION: Double Walled, gap between walls filled with PUF Insulation

GMP model : Stainless steel mirror polished chamber and exterior of dull finish stainless steel.

Double door : Inner full viewing door and outer door insulated with lock and key arrangement Control panel with electrical switch gear and refrigeration system (CFC Free) mounted on top for easy service accessibility.

Unit mounted on castor wheels

Size Inch.

• 18 x 18 x 18 (90ltr)
• 20 x 20 x 28 (175ltr)
• 22 x 22 x 36 (280ltr)
• 24 x 24 x 36 (340ltr)
• 24 x 24 x 48 (440ltr)
• 28 x 28 x 48 (600ltr)
• 30 x 30 x 55 (800ltr)
• 32 x 32 x 60 (1000ltr)
