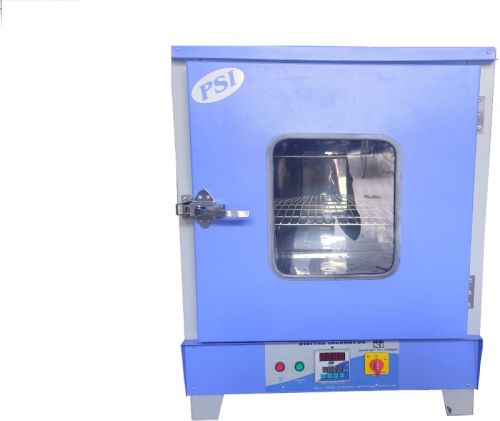

PSI Mild Steel 50Hz Bacteriological Incubator For Industrial Use

Our extensive range of B.O.D. Incubators has been designed especially for biological Oxygen demand determination & other applications like general incubators, Serum studies & Enzyme assays test. We can also customize the B.O.D. Incubators to suit the varied requirement of the clients with in stipulated time frame.

Technical Specifications :

Double walled cabinet mounted on castor wheels

Inner chamber made of S.S.304 & Outer chamber made of M. S. Powder coated

Full Length inner Glass door permit inspection of with out disturbing the Temp.

Temp. Range 5’C to 60’C

Temp. Controlled by solid State Digital controllers housing all the control with PT-100 sensor illumination light are provided for viewing.

CFC Free hermetically sealed compressor provide temp. For below ambient condition.

Air circulation fan for maintain Temp. Uniformity through out the chamber.

Flush fitting insulated double walled door

The Chamber is provided with modular removable shelves made of S. S. For complete flexibility in use

To work on 230 volts 50 H2.

Safety Features : Built in Temp Deviation Safety thermostat for overshoot Temp. Cut off system. HRC Fuses for compressor heater & mains Time daily circuit for safety of compressor.

Special Care : A suitable K V. A. Servo stabilizer is strongly recommended.

This B.O.D. incubator is available in below sizes:

• 3 45 x 45 x 45 Cm. 90 2
• 6 50 x 50 x 70 Cm. 175 2
• 10 55 x 55 x 90 Cm 285 3
• 12 60 x 60 x 90 Cm 340 3
• 16 70 x 70 x 95 Cm 450 4
