Our Products
We are leaders in the market for providing best range of SS Sintered Metal Filter, Wound Filters, Spun Filter, Vacuum Filters and Hose Barb Connection,horse Barb Capsule Filter
SS Sintered Filters are designed to provide high quality particulate Removal in Process Steam together with high flow rate and dirt holding capacity, thereby allowing long system lifetime and cost effective operation.SS Sintered filters are made from fine SS powder is sintered to form filters in cylindrical shape.
Filter Element SS Filters are used for Air ( stea / gas) and liquid filtration they have a very fine micron and is suitable for a range of operation.In steam / gas service, 100% of particles larger than the pore size chosen will be retained by the element. Note that the 1 micron element has an efficiency of 99.7% based on 0.2 micron particles.
Selecting a pore size smaller than required will result in reduced service life and higher pressure drop. SS Sintered elements can be cleaned by immersion in dilute hydrochloric acid, ultrasonic bath, clean water or air depending on the type of contamination. However, once the pressure drop across the filter (even after cleaning) reaches 0.7 bar the element should be replaced. Note : We strongly recommend that a spare filter element set is carried in stock.
Features and Benefits
PFP wound Filters are manufactured using wound process at high speed hence creating a single filter with hundreds of diamond shape tunnels. The tunnels are smaller at the core and bigger at the outer diameter. PPF Wound filters are available from 0.5 micron to 150 micron in pore size and standard length starts from 5inch to 40 inch. Outside diameter of the filter is 2.5 inch to 4.5 inch hence one can customize the filtration system as per his needs.PFP wound filters offer higher dirt holding capacity and low media migration.
Features
Applications
PP Spun filters are manufactured of thermally bonded polypropylene microfiber to ensure high efficiency. Thermally bonded microfiber has minimal fiber release and consistent flow rate. They are ideal for Food and beverage application as they don't impact color, taste or odor of the liquid being filtered. They are also suitable for high temperature application upto 80 degree. PFP Spun Filters are ideal pre-filters and polishing filters where there is a fairly wide contaminant particle size distribution. The depth filtration mechanism also provides excellent control of gelatinous contaminants. A fixed pore structure formed by the non-shedding, bonded medium prevents release of trapped particles. The self-supporting fiber matrix enables a coreless design that is both economical and strong. The polypropylene filter medium provides broad chemical compatibility.
Features
Applications
Capsule Filter - Tri ClampPFP Vacuum Filters are used in filtration of cell culture media, aequos solutions, plasma filtration and other biological fluids. The Unit consist of collecting bottle and flask on the top with filter membrane in the middle, the Membrane and the size of the unit be configured as per ones requirement.
PFP Vacuum filter can be supplied with below membranes and pore size
The Unit is well built with ABS (Acrylonitrile butadiene styrene) material for sturdy operations and light weight for easy movements, the hose connection can fit multiple hose diameters. The Units are packed in Easy to peel single bag pack and are gamma sterilized assuring sterile product with easy to use operations.For Filtration area and diameter please contact us we can also develop custom product as per customer requirements. Our Filtration area and size is very well at par with Industry standards.

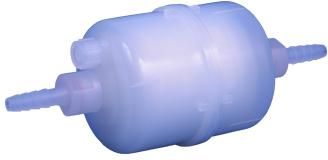

Horse Barb Capsule filter are designed to provide smart, disposable and safe filtration for small capacity. Liquid of lypholized powder and other pharmacy. These disposable filter can help elimante cleaning problems and extra validatin cost. 100% Integrity tested prior to release ensure high quality products.
Features
Specification
NPT Capsule filter are designed to provide smart, disposable and safe filtration for small capacity. Liquid of lypholized powder and other pharmacy. These disposable filter can help elimante cleaning problems and extra validatin cost. The. 100% Integrity tested prior to release ensure high quality products.
FeaturesEco friendly & cost effectiveDisposbale and safeLow Hold Up VolumeGood resistance to pressure
Filter media - PES / Nylon / PP / GF / PVDF / MCESupport & housing - PPSealing - thermal bonding, NO AdhesiveFiltration area - > 0.2m2 ( 2.2ft2)
Tri Clamp Capsule filter are designed to provide smart, disposable and safe filtration for small capacity Liquid of lyophilized powder and other pharmacy. These disposable filter can help eliminate cleaning problems and extra validation cost. The T Style configuration is ideal for operation. 100% Integrity tested prior to release ensure high quality products.
eatures
