1 Products availableWe are leaders in the market for providing best range of Tubular Liquid Level Gauge, Transparent Liquid Level Gauge, Magnetic Level Indicator, Glass Tube Rotameters and Electromagnetic Flow Meters
Petrotech Tubular Liquid Level gauges for tanks operating at low pressures. The instruments consist of a toughened continuous section of borosilicate glass tube which is connected at both the top and bottom to an isolation valve. The connection between the valve and glass is sealed by means of a rubber gasket contained within a union on the valve. The isolation valves used on this type of instrument are most commonly the off set pattern type as this allows for the gauges to be cleaned.
Range:0- 2500 mm
Maximum Pre & Temp:10 Kg/cm2 & 100C
Wetted Part:CS, ASTM A 105, SS 304, SS 316L
Construction:C- Channel, Tie Road
Gasket & Cushion:IFG 5500, CAF, PTFE, Graphoil SS316 reinforced, Graphoil SS304
Glass:Borosilicate tube in OD of 12, 16, 19 & 25 mm
Model:TLG-15
Chemical, petrochemical industry, Refineries, Pharmaceutical industry Pressure vessels, Storage tanks, Marine industry Water & waste water treatment plants other

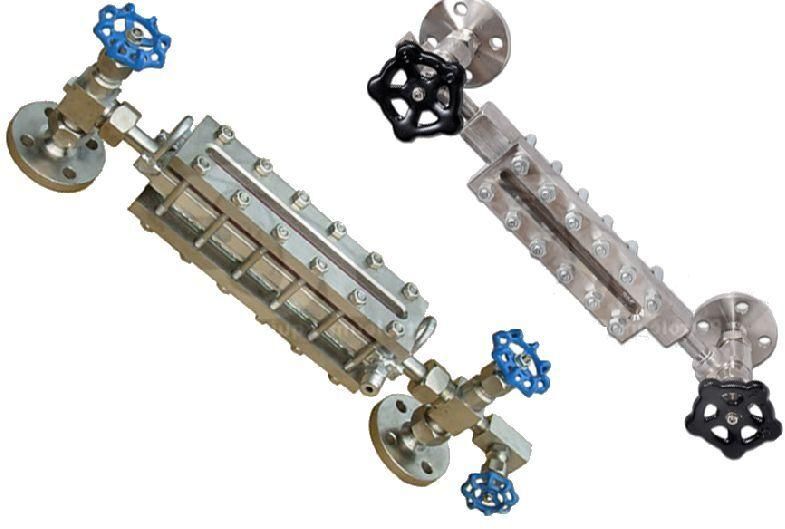

Transparent level gaugesare different in design function to a reflex gauge as they consist of two flat transparent glasses where the light can enter or exit from the back to the front of the Gauge thus illuminating the liquid level which is contained in the chamber separating the two glasses. The liquid level is indicated by the different transparency of the two media.
Range:0- 3000 mm
Maximum Pre & Temp:220 Kg/cm2 & 400 C
Liquid Chamber:CS, ASTM A 105, SS 304, SS 316L, Monel, Titanium, Inconel 600, Hastelloy
Cover:CS, ASTM A 105, SS 304, SS 316L
Gasket & Cushion:IFG 5500, CAF, PTFE, Graphoil SS316 reinforced, Graphoil SS304
Glass:Toughened Borosilicate Size 115, 140, 165, 190, 220, 250, 280, 320, 340
Options:Illuminator, Frost Free Extension, Mica Shield, NACE Wetted Part, Heating Jacketing, Cooling Jacketing, Scale, Type of Isolation Valve
Type of Model:PETL-30, PETM-85, PETH-170, PETHH-220, PETLC-28, PETW - 120
High pressure and temperature, Storage tank, Chemical plants, Process and Power plants, Boiler Drum Level and Process Heaters, Chemical / Fertilizer plants, Bulk Carriers, Applications for viscous coloured and interface liquids
Reflex Level gaugesare designed to operate based on the difference in the refractive indices of Liquid and vapor. Liquid Flows through the gauge chamber behind the viewing glass located on only one side of the instrument and which is clamped to the gauge body. When liquid is present the glass will Appear black where it is in contact with the process medium and when no liquid is present the Glass is silvery or white thus the level can be seen.
SPECIFICATIONRange:0- 3000 mm
Maximum Pre & Temp:220 Kg/cm2 & 400 C
Liquid Chamber:CS, ASTM A 105, SS 304, SS 316L, Monel, Titanium, Inconel 600, Hastelloy
Cover:CS, ASTM A 105, SS 304, SS 316L
Gasket & Cushion:IFG 5500, CAF, PTFE, Graphoil SS316 reinforced, Graphoil SS304
Glass:Toughened Borosilicate Size 115, 140, 165, 190, 220, 250, 280, 320, 340
Options:Frost Free Extension, Mica Shield, NACE Wetted Part, Heating Jacketing, Cooling Jacketing, Scale, Type of Isolation Valve
Type of Model:PERL-30, PERM-85, PERH-170, PERHH-220, PERLC-28, PERW - 120
High pressure and temperature, Storage tank, Chemical plants, Process and Power plants, Boiler Drum Level and Process Heaters, Chemical / Fertilizer plants, Bulk Carriers, Applications for viscous coloured and interface liquids
Petrotech weld pad Level Gauge unit is designed to be welded directly on to a tank or other liquid-containing vessel. Standard Level Gauge units are furnished with a flat bottom. Upon request, the unit can be machined with a cylindrical radius to match the contour of the vessel. The Level Gauges are available in single or multiple section types.
It is common that weld pad level gauges are used in non-critical applications and in most cases, they are supplied without any form of isolation. It is possible however to supply weld pad gauges with a needle valve located directly on the chamber at the top / bottom which will offer a form of isolation from the process.
SPECIFICATIONModel:PERW -120
Range:0- 1000 mm
Maximum Pre & Temp:120 Kg/cm2 & 300 C
Liquid Chamber:CS, ASTM A 105, SS 304, SS 316L
Cover:CS, ASTM A 105, SS 304, SS 316L
Gasket & Cushion:IFG 5500, CAF, PTFE, Graphoil SS316 reinforced, Graphoil SS304
Glass:Toughened Borosilicate
Type of Model:PETL-30, PETM-85, PETH-170, PETHH-220, PETLC-28, PETW - 120
Highly viscous liquids, Liquids with suspended solids, High vibrations, Limited space where thermal error due to piping not acceptable or where conventional gauge glass is impractical.
