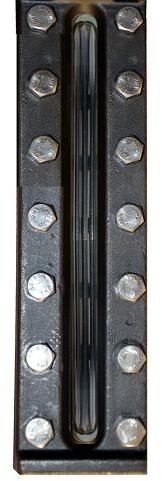

Weld Pad Level Gauge

Petrotech weld pad Level Gauge unit is designed to be welded directly on to a tank or other liquid-containing vessel. Standard Level Gauge units are furnished with a flat bottom. Upon request, the unit can be machined with a cylindrical radius to match the contour of the vessel. The Level Gauges are available in single or multiple section types.

It is common that weld pad level gauges are used in non-critical applications and in most cases, they are supplied without any form of isolation. It is possible however to supply weld pad gauges with a needle valve located directly on the chamber at the top / bottom which will offer a form of isolation from the process.

Model: PERW -120

Range: 0- 1000 mm

Maximum Pre & Temp: 120 Kg/cm2 & 300 ºC

Liquid Chamber: CS, ASTM A 105, SS 304, SS 316L

Cover: CS, ASTM A 105, SS 304, SS 316L

Gasket & Cushion: IFG 5500, CAF, PTFE, Graphoil SS316 reinforced, Graphoil SS304

Glass: Toughened Borosilicate

Type of Model: PETL-30, PETM-85, PETH-170, PETHH-220, PETLC-28, PETW - 120
