Insulators, Mineral Wool, Glass Wool & Insulation Materials #5819465

Line Post Insulator

  • Material Silicone, EVA
  • Application Power Grade
  • Feature Easy To Install, Four Times Stronger
  • Tensile Strength 100-125Mpa
  • Standard DIN, ETDC
View Complete Details

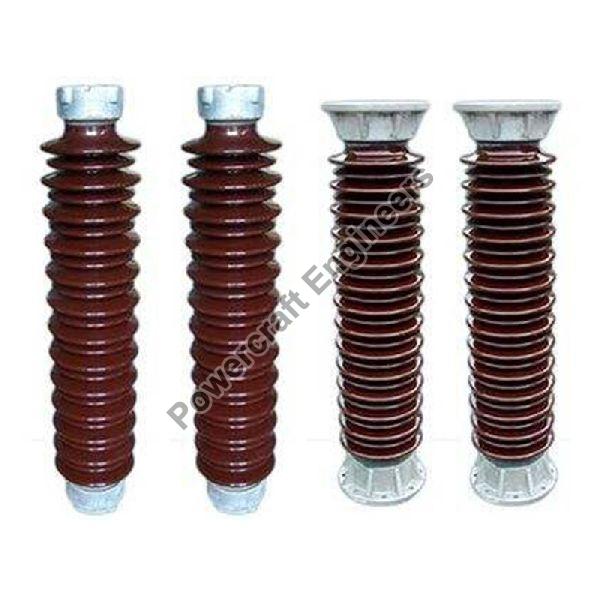

Station Post Insulator

  • Material Silicone, EVA
  • Shape Disc, Round
  • Application Power Grade
  • Feature Electrical Porcelain, Four Times Stronger
  • Standard DIN, ETDC
View Complete Details

Electrical Insulating Mats

  • Color Black / Red (Other colour as agreed between supplier and purchaser)
  • Finish One Side Plain / Other Side Patterned
  • Tensile Strength For Temp. -10 ℃ to 55 ℃ -15 N / mm2 (Min.)
  • Elongation At Break For Temp. -10 ℃ to 55 ℃ -250% (Min.)
  • Insulation Resistance with Water 10, 00, 000 MΩ (Min.)
  • Leakage Current 10 μA (Max.)
  • Flame Retardancy The Mat is retarded to fire.
  • Low Temperature Resistance No tear, break of crack is observed in Mats under force of 100N for 30 hrs. At -40±3 ℃br

Features :

  • For both A.C. and D.C. applications.
  • Di-electric Strength 65KV (65000 volts)
  • AC Proof Voltage up to 50 KV
  • Low and Extreme low temprature resistant
  • Acid, Alkalis and transformer oil proof
  • Flame retardant
  • Good Aging properties at temp-10 to 55
  • High Insulation resistant exceeding 1000000 M Ohms.
  • High tensile strength and elongation properties
  • Leakage Current less than 10 Ma.

Comparison From Old IS : 5424 – 1969 To New IS : 15652-2006

IS : 5424-1969 (Old IS) IS : 15652-2006 (New IS)
Di Electric Strength is only upto 15KV Di Electric Strength is only upto 65KV
No Acid proof Acid proof
No Alkali proof Alkali proof
No Oil and Diesel proof Oil and Diesel proof
No Flame Proof Flame Proof
No Insulation Resistance with water Insulation Resistance with water
Low Tensile Strength and Elongation at break Much high Tensile Strength and Elongation at break
Standard Length is upto 2 mtr only Long length availble as per client requirement
Much heavier and bulky due to high thickness (8mm , 10mm, 12mm, 20mm and 25mm) Much light weight and easy to handle due to low thickness (2mm, 2.5mm and 3mm)
View Complete Details

High Voltage Insulation Sheet

  • Application Industrial
  • Type Cut to Size, Roll
  • Made From Sealing Mastic
  • Shrinkage 25%
  • Benefits Dimensional stability, Fire Safety
View Complete Details

Hollow Core Insulator

  • Material Silicone, EVA
  • Shape Disc, Round
  • Application Power Grade
  • Feature Sturdy Construction, Superior Finish
  • Standard DIN, ETDC
View Complete Details

Hybrid Post Insulator

  • Material Silicone, EVA
  • Shape Disc, Round
  • Application Power Grade
  • Feature Four Times Stronger, Sturdy Construction
  • Condition New
  • Standard DIN, ETDC
View Complete Details

Heat Shrinkable Sleeve

  • Material Rubber
  • Thickness 3-5mm
  • Application Electrical Winding
  • Feature Optimum Strength, Reliability
  • Voltage Range 11-33 kV

Details :

  • Triple-extruded body provides a pre-engineered joint unit with fewer kit components
  • Advanced shrink behavior and profile-following are combined with a significant reduction in shrink time
  • High recovery forces result in tight electrical interfaces and perfect sealing ability
  • Optimized heat transfer due to reduced thermal capacity
  • The reduced overall joint diameter provides a slimmer and space saving profile
  • As an alternative to crimp connectors, kits can be selected with mechanical shear bolt connectors for conductor and shield continuity
  • Unlimited shelf-life simplifies material logistics and reduces cost
View Complete Details

Busbar Insulation Tube

  • Type BBIT/BPTM
  • Material Silicone Rubber
  • Application Industrial
  • Feature Long Life, Smooth Finish
  • Pack Type Box
View Complete Details

Insulating Rubber Mats

  • Material Rubber
  • Application Insulating Mats
  • Feature Anti Slip, Durable
  • Mats Available for 415V to 36kV Voltage Applications
  • Thickness Variation From 2-7 mm as per Voltage Applications
  • Continuous Rolls 10m in Lengths
Advantages:

High quality EPDM formulations offers low leakage current values also giving better resilience and toughness to mats against ozone, UV and general weathering.:

  • Slip resistant
  • Acid and oil resistant
  • Hydrophobic in nature
  • Fire resistant
  • Halogen free flame retardant
  • Mats available for 415V to 36kV voltage applications
  • Higher breakdown voltage in lesser thickness
  • Thickness variation from 2-7 mm as per voltage applications
  • Continuous rolls of 10m in lengths
View Complete Details
