Acquire from us Bi-Metal Temperature Gauges and Mercury In Steel Temperature Gauges! We are a promising Manufacturer, Exporter and Supplier of Temperature Gauges from Maharashtra, India. Ours are high accurate design hold switch that are the preferred choice of the buyers. The Temperature Gauges are available with us in almost all the models having dual element configuration. They are offered by us at the competitive prices.

Process Control Devices offers a series of magnetic level gauge designed to measures the level of liquid in storage tanks. The magnetic level Indicator installed outside of a vessel or tank. The liquid level in the tank can easily be observed from the change of the bi-color capsule or roller type. Optional devices of magnetic switch and level transducer can be installing for electrical signal output and 4-20 mA level transmitting.

The By-Pass indicator utilizes hydrostatic principle to indicate the liquid level in the tank. A float with a magnet inside rises and drops according to the liquid level change. Magnetic flags / Follower capsule will flip as the float passes through to indicate liquid level based on magnetic attraction method. The position of the follower capsule/magnetic ball can be read against the engraved scale.

We are the reputedmanufacturer in Mumbai India for Side mounted Magnetic Level Gauge.

A Simple magnetic principle used to get unique, absolutely safe and most reliable level indicator for dangerous liquids even under high pressures

As the liquid level rises in the tank, the float is lifted up due to buoyancy.

The magnetic float gauge is designed so that fluid begin measured is enclosed within the sealed chamber.

A float fitted with permanent magnet moves freely inside the chamber w.r.t. liquid level.

And activates the flapper/ capsule/ ball to move outside the chamber.

Liquids : Acids, Alkalies, Solvents, Oils, Lubricants, Condensate Water

Sp. Gravity: Minimum 0.7

Viscosity: Up to 250 cp

Design Temperature: -20 400c

Design Pressure: Up to 25 Kg/cm

C/C Distance: 300 to 4000 mm

Material of wetted Parts: SS 304, SS 304L, SS 316, SS 316L PTFE Lined

Connection: Flanged to ASA, BS, DIN, Triclover

Process Control Devices offers a series of the level gauge designed to track the level of liquid in close tanks. Side mounted Tubular type Level Indicator is a reliable device for direct reading. The exact level of the fluid in the tank canbe observe. It is the simplest form of seeing the level of the medium in the tank. These level indicators are being used for greatest application for level monitoring in process tanks, chemical tanks, storage tanks etc.

Tubular level gauge consists of two connections which canbe buildas per the customers need. Borosilicate glass tube is fix using glands and packing to ensure leak proof operation. These tubes are available in 16 mm, 19 mm, 22 mm and 25 mm outer diameter. There is two scale installed on the level gauge, oneis markin millimeter and another canbe calibrateon tank level in terms of liters, kilograms or tons. We also provide isolation valves, drain valve, auto shut-off arrangement along with these tubular level gauges.

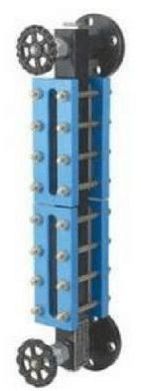

Process Control Devices offers a series of level indicators. Designed to measures the level of liquid in reactor tanks. The reflex level gauge used for the measurement of liquid level for high pressure or high temperature or toxic liquid storage tanks. The reflex level gauge has a single prism glass mounted on one side of the chamber and uses the basic optical principles of light reflection to upgrade the expression of the liquid level in the process tank.

In brief, when the light strikes the area of glass covered by the liquid is allow passing to the interior of the gauge so that the area appears dark (black). Thus the area which is vacant appears to be (silver) and can be distinguishing the difference from several feet away. We are the manufacturer of the reflex level gauge in Mumbai India.

Flat Seated Screen for Proper Seating

Easy cleaning or replacing the filter element

compact size

Low-Pressure drop across the filter

Adequate strength of element and body

Protect damage of costly Pumps, Flow Meters, Heat Exchangers, Control et.

Remove outside particles, mud, debris & trash

Interchangeability of filter element with another of the same type
