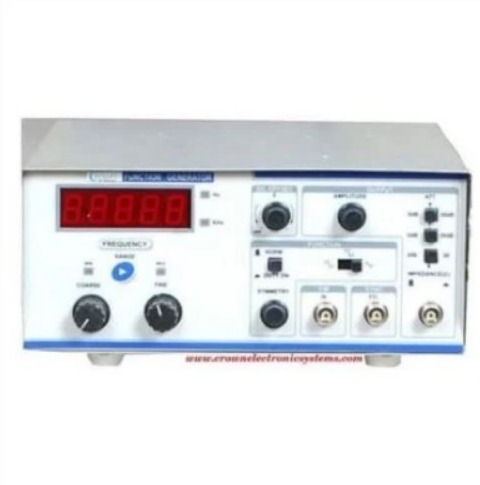

0.2Hz To 2MHz FUNCTION GENERATOR WITH DIGITAL COUNTER
MODEL - CES 306D-2

Wave Form : SINE, SQUARE & TRIANGLE, RAMP, PULSE, TTL / CMOS O/P

Amplitude : 0 - 20V p/p Open Circuit, 10V p/p (50 Ohm Load)

Type - DIGITAL

Frequency - 0.1 hz to 1 mhz in six decade range

Power Supply - 230v ac +/- 10%

Output Amplitude - 0 - 20v p/p for all function

Deal accuracy - +/- 5% of range

WAVE FORMS - Sine , Square & Triangle , Ttl Square Wave (separate O / P)

SINE WAVE DISTORTION - Less than 1% from 100 Hz to 100KHz

SQUARE WAVE DUTY CYCLE - 49% To 51%

SQUARE WAVE RISE TIME - Less than 100 nano Sec. At maximum amplitude

OUTPUT IMPEDANCE - 600 Ohm + 5%

Function Generator 0.2Hz To 2MHz is capable of providing the site , SQUARE, TRIANGLE Wave form. It has linear frequency scale very low Distortion & constant signal amplitude with the output signal symmetry about Zero. The DC coupled output provides square wave without any appreciable Sag at low frequency. It has a maximum 20V P/P amplitude. The output is protected against short circuit. It has an offset control provided to shift the base line of the signal by + 10V. The continuously variable DC offset control further enhance the versatility of the instrument. The equipment is used in Audio Electronics & other Laboratory & Research work.
