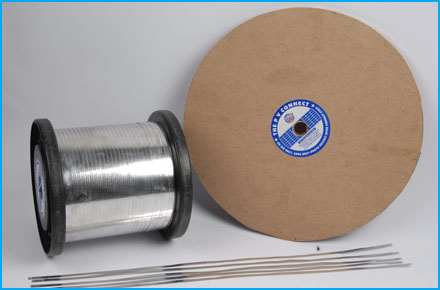

Solar Bus Bar, Width : 5.0 ± 0.2mm

Width5.0 ± 0.2mm
Thickness0.3 ± 0.03mm( Basic Copper Thickness)
ItemBus Bar (Tin Lead Silver- 62:36:2)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Bus bar is a strip of platted copper that conducts electricity within a module, Panel, String Cells. The size of the bus bar determines the maximum amount of current that can be safely carried.

View More Details

Send Enquiry

Company Information

Navank Consultants

Sector 125, Noida, Uttar Pradesh

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Material :-	Electrolytic tough pitched (ETP) copper as per IS- 191-1980
Surface Finish :-	Coating - Coated with 62:36:2 tin-lead-silver solder Coating thickness 16-25microns on each side Uniform &bright coating, good adhesion on either side Mechanical - natural rounded edges coated all round
Camber :-	<5mm/meter
Functional Requirement:-	For interconnecting PV cell strings
Packing & Marking :-	To be supplied in spools To be labeled on the packing consignment Interconnect tin lead silver 62:36:2 Dimensions: 5x 0.3mm Coating: 16 to 25microns Mfd. Month/year
Inspection :-	Visual inspection, dimensional &properties evaluation Single sampling plan as per IS- 10673-1983, special inspection level S- 4, AQL- 1.0.
