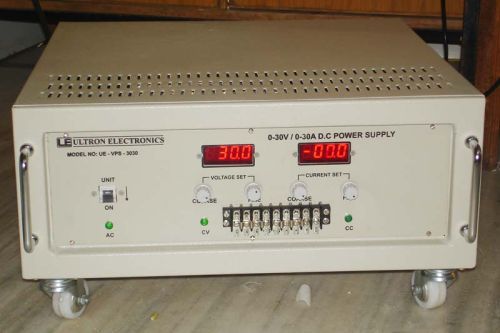

0-30V/0-30A VARIABLE DC POWER SUPPLY

SPECIFICATIONS FOR 0-30V/0-30A VARIABLE DC POWER SUPPLY
1. Mains input : 230V, +10%, 50Hz, Single phase
2. Type : CV/CC
3. Output : Voltage: 0-30V
Current: 0-30A
4. Controls : MCB for Unit ON/OFF
Coarse & fine controls will be provided on front panel for output Voltage & Curren tsettings.
5. Line Regulation : + 0.1% max. Output Voltage for + 10% change in mains Input Voltage.
6. Load Regulation : + 0.1% max. Output Voltage Change for No-load to full load or Vice-versa.
7. Ripple : Less than 5mV R.M.S.
8. Protections
A) Over load / Short circuit: Automatic crossover type (CV/CC)
B) Reverse Voltage : Protection against reverse voltage applied at the output terminals will be provided.
C) Fuse : Fuse protection will be provided for both Input and Output at rear side.
9. Indication(s) : Two separate front panel 3½ digit digital panel meters to monitor output voltage & Current continuously will be provided.
10. Operating Environment : 1) 0°C to +50°C
11. Terminals : Banana socket(s) at front panel & Piri Terminal strip with remote sensing at rear panel.
12. Mounting Style : Bench Type or 19� Rack mounting as required.
