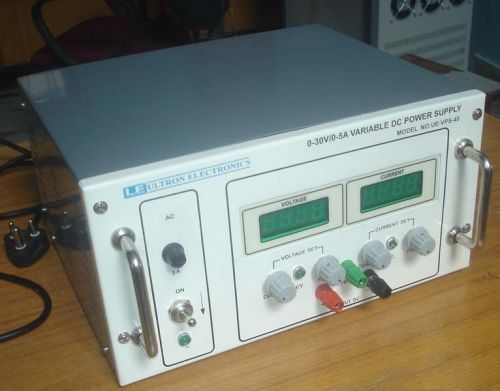

0-30V/0-5A DC POWER SUPPLY

SPECIFICATION FOR 0-30V/0-5A DC POWER SUPPLY
1. Mains input : 230V, +10%, 50Hz, Single phase
2. Type : CV/CC
3. Out Put : Voltage: 0 to 30V
Current: 0 to 5A
4. Controls : Coarse & fine controls will be provided on front panel for output Voltage & Current setting
5. Line Regulation : + 0.1% max. Output Voltage
for + 10% change in mains Input Voltage.
6. Load Regulation : + 0.1% max. Output Voltage Change for No-load to full
load or Vice-versa.
7. Ripple : Less than 1mV R.M.S.
8. Protections
A) Over load / Short circuit : Automatic crossover type (CV/CC)
B) Reverse Voltage : Protection against reverse voltage applied at the terminals will be provided.
9. Indication(s) : Two separate front panel 3½ digit digital panel meters/Analogue Meters to monitor output voltage & current continuously will be provided.
10. Operating Environment : 1) 0°C to +50°C
2) 90% RH at 40°C
11. Terminals : Banana socket(s) at front panel & Piri Terminal strip with remote sensing at rear panel.
12. Mounting Style : Bench Type
