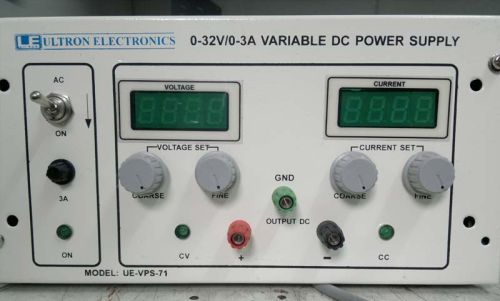

0-32V/0-3A VARIABLE DC POWER SUPPLY

SPECIFICATIONS FOR 0-32V/0-3A VARIABLE DC POWER SUPPLY
1. INPUT VOLTAGE : 230V AC, +/-10%, Single Phase 50HZ
2. OUTPUT VOLTAGE : 0-32V Continuously variable with a coarse & fine Potentiometers provided on front panel
3. OUTPUT VOLATE RESOLUTION: 1mV
4. OUTPUT CURRENT : 0-3A continuously variable with a coarse and fine potentiometer provided on front panel.
5. OUTPUT CURRENT RESOLUTION: 1mA
6. LINE REGULATION : ±0.05% for 10% changes in line voltage
7. LOAD REGULATION : ±0.05% for load changes from no load to full load
8. RIPPLE & NOISE : Less than 1mV rms
9. PROTECTION : 1) Fuse protection will be provided for input
2) Output is protected against over loads and continuous short circuit.
10. FRONT PANEL INDICATIONS:
1) LED for CV Operation.
2) LED for CC Operation
3) Two separate 3 ½ digit digital panel meters will be Provided to read the output voltage and current separately.
11. FRONT PANE CONTROLS : 1) One DPST Switch to on/off the unit.
2) One coarse and fine potentio meter is provided to set the output voltage from 0-30V.
3) One Coarse and fine potenio meter is provided to set the output current from 0-3A
12. TERMINATION :
1) Input is connected though 3 pin power card.
2) Output is terminated through binding terminals
mounted on Front Pa
13. INSULATION : Between Chassis and output terminal > 10M Ohms
Between Chassis and AC plug > 50M Ohms
14. MOUNTING STYLE : Bench top or 19� Rack mounting
15. OPERATING TEMP. : 0-500C
16. COOLING : Natural Air Cooling
