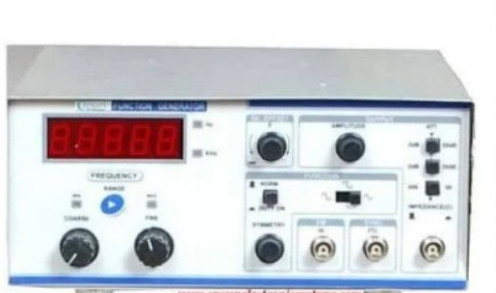

0.3hz To 3mhz Function Generator With Digital Meter Counter

₹ 12,300 / Piece

Frequency50Hz
Brand NameCROWN
CertificationISO 9001:2008
Rated Voltage230V
Supply TypeSupplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Company Information

Panvel, Navi Mumbai, Maharashtra

4.8/5

Member Since 10 Years
Nature of Business Supplier
GST No. 27ACZPT5610Q1ZG

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameCROWN
ConditionNew
Rated Power230W
Automation GradeManual
CertificationISO 9001:2008
Rated Voltage230V
Output TypeAC Single Phase
Number Of FlowerDigital Function Generator, Digital
Rated Current1Amp
Frequency50Hz
Total Carbohydrate1year
Cooling SystemAir Cooling
Country of OriginIndia
Noice LevelSilent
WaveformSine
Model Name/NumberCES 306D-3
Power Source230V AC
Power Supply230VAC
ApplicationLaboratory
Output Amplitude0 - 10V p/p Open Circuit,10V p/p (50 Ohm Load)

0.3Hz To 3MHz FUNCTION GENERATOR WITH DIGITAL COUNTER
MODEL - CES 306D-3
TECHNICALSPECIFICATIONSFrequency Range: 0.3Hz-3MHz.Functions : Sine,Square,Triangle,Ramp,Pulse& TTL pulse output.Display FrequencyFreq : Digital (4digit7segmentdisplay)automatic decimal positionAccuracy Freq : betterthan+(1%+3digit)ofF.SAmplitude : 20Vp-pintoopencircuit(variable).10Vp-pinto50ohmsAttenuator : 2stepsattenuators20dBeach(Total60dB) andvariable20dBAmplitudeflatness +3dBDC Offset (switchable: Upto +10V into open circuit.& continuous) +5 V into 50ohm.Output Impedance: 50ohms & 600Ohms(Switchable)
WAVEFORM CHARACTERISTICS -Sinewave - a)Distortion : <1%Squarewavea)Risetime : <100nsecapprox.(10%to90%)b)Overshoot : <+5%Triangle -a)NonLinearity : <1%(100KHz.)Ramp&Pulse : Dutycycle20:80upto200KHzTriggerPulseoutputa)SyncOutput : TTLGenerala)FM/VCO : availableb)PowerSupply : 230V,50Hz,AC.c)Accessories : InstructionManual.d)TestLeads : 1xBNCtoCrocodile.1xPowercord
