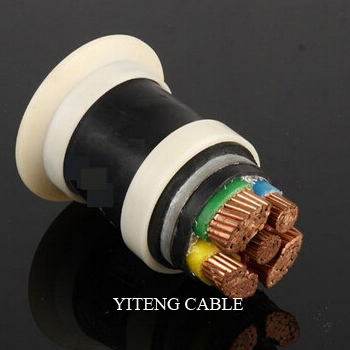

0.6/1kv Copper XLPE Power Cable With Steel Tape Armour

We are offering 0.6/1kv copper xlpe power cable with steel tape armour. Heat cabletape
heat tracer cableheat tracing
constant wattage heat tracer
self regualting heating cable
0.61kv copper xlpe power cable with steel tape armour
product standards
the product according to gbt12706 " rated voltage 35kv and below copper, aluminum plastic insulated power cables " standards, while also based on user needs by the international electrotechnical commission standard iec, british standards , the german standards and u.s. Standards.
Scope
this product is suitable for frequency 0.61kv and below rated voltage distribution networks or industrial installations in fixed installations.
Use features
rated power frequency voltage u0 u is 0.61kv.
Allow cable conductor maximum temperature is 90 ℃.
Short (the longest duration of no more than 5s) conductor temperature does not exceed 250 ℃.
The ambient temperature should not be less than 0 ℃.
Cable bend radius of not less than 15 times the cable diameter.
description
type description no. Of cores nominal cross section of conductor
yjv22 copper conductorxlpe insulationsteel tape armouredpvc outer sheath power cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2 1.5~800mm2
yjv23 copper conductorxlpe insulationsteel tape armouredpe outer sheath power cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2 1.5~800mm2
za-yjv22 zb-yjv22 zc-yjv22 copper conductorxlpe insulationsteel tape armoured flame-retardant power cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2 1.5~800mm2
wdza-yjy23 wdzb-yjy23 wdzc-yjy23 copper conductorxlpe insulationsteel tape armoured low smoke halogen free or zero halogen (lshf or lszh) flame-retardant power cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2 1.5~800mm2
nh-yjv22 copper conductorxlpe insulationsteel tape armoured fire-resistant power cable 1, 2, 3, 4, 3+1,
5, 4+1, 3+2 1.5~800mm2
