0-10kg Multi Mill, Certification : CE Certified, ISO 9001-2015 Certified

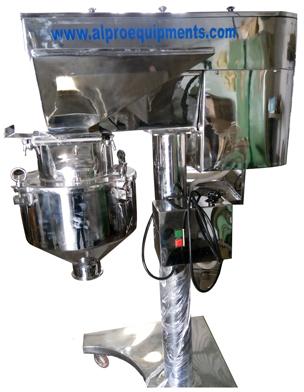

Applications : Multi mill is widely used for wet and dry granulation, pulverization, etc. in Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colours, Dyestuff, Food products etc. It also finds application in Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastic, and Resins Industries.   Multi Mill unit consists of S.S. 304 quality hopper and processing chamber (can be provided is S.S. 316 quality at extra cost) with beaters assembly, motor, reversible switch, DOL starter, four speed step pulley, Suitable screen with painted pillar mounted on base plate, with castors.   Operation Multimill operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber. Output and quality of the final product depends on three main factors Shape of beaters (knife/impact edges), Speed and Screen.   Salient  Features : Direction of beaters can be changed by reversible switch from knife to impact forward and vice-versa. All contact parts can be easily and quickly dismantled and cleaned. Multimill Machine is designed for continuous operation. Cylindrical screen for higher output. Castors provided for mobility. Flame proof electrical can be provided at extra cost. Beaters and scrapper blades of SS 410 quality are hardened and hard chrome plated.
