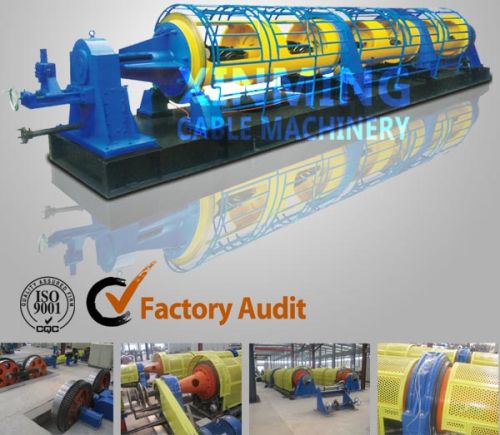

1+6/500 Tubular Stranding Machine

2.1 monofilament diameter: copper : 1.3-5mm aluminum: 1.7-5mm steel: 1.0-5mm 2.2 diameter after stranding: 3-15mm 2.3 host rotary speed: 500rpm 2.4 capstan diameter: pn 1500 double wheel 2.5 output speed: 17-165m/min 2.6 pitch of stranding: 34-330mm 2.7 pay-off bobbin size of the out-host one: 500mm 2.8 pay-off bobbin size of the host: 500 mm 2.9 take-up bobbin size: 800-1600mm 2.10 main motor power: 30kw (ac).
