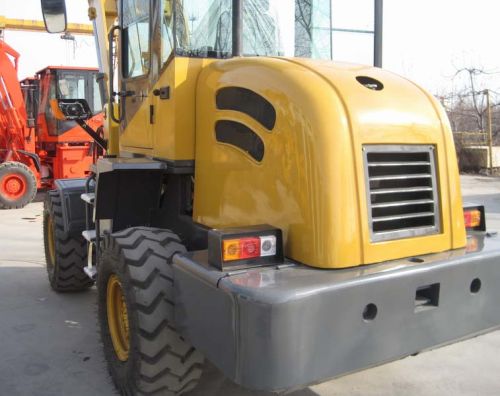

1.6t Front Wheel Loader

We are offering 1.6t front wheel loader.
Applications:
wheel loader zl16f is mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. To shovel and load or move earth, sand and stone, coal cinder, trash and other bulk materials. 1.6t wheel loader can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.
main technical parameters:
1 .rated load: 1600 kg
2. Total weight: 3900 kg
3. Rated bucket capacity: 0.7 cbm
4. Max. Tractive force: 30 kn
5. Max. Breakout force: ≥ 32 kn
6. Max. Gradeability: 38°
7. Max. Dumping height: 2800 mm 3200 mm
8. Max. Dumping reach: 1000 mm
9. Raising time: ≤ 5.0 s
10. Total cycle time: ≤ 9.5 s
11. Overall dimensions (l x w x h): 5060*1690*2630 mm
12. Min. Turning radius: 3200 mm
13. Engine model: weichai huafeng zhbg14-a cummins b3.3 (epa tier iv)
14. Engine type: four-cylinder, inline, water-cooled, four-stroke diesel engine
15. Engine rated power: 44 kw45 kw (60hp)
16. Engine rated speed: 2200 rpm
17. Engine min. Fuel consumption ratio: ≤ 230 gkw•h
18. Transmission system: zl265 integratedsplit hydraulic torque converter
19. Gear shift: 1 forward, 1 reverse, 1 high speed, 1 low speed
20. Max. Speed: 25 kmh
21. Model of drive axle: zl16 hub reduction axle (small)
22 . Wheel tread: 1430 mm
23. Wheel base: 2170 mm
24. Drive mode: 4-wheel drive
25. Hydraulic system working pressure: 16 pa
26. Fuel tank capacity: 90 l
27. Service brake: foot pedal vacuum booster, air over hydraulic caliper disc brake on 4 wheels
28. Parking brake: hand lever flexible shaft controlled disc brake
29. Tire type specification: 14-17.5-14pr
30. Front tire pressure: 0.40 mpa
31. Rear tire pressure: 0.35 mpa
