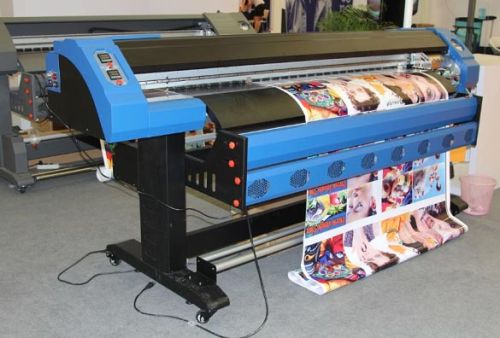

1.8m Epson Dx5 Eco Solvent Printer, Brand Name : MT-Starjet

1.8m mt-starjet epson dx5 printer
over 10 years experience in printing technology
the 5th generation of micro piezo technology
economy, stability, comprehensiveness
1. micro piezo printing technoligy
the latest epson 5th generation micro piezo printhead can reach resolution of 1440 dpi. its extremely fine ink droplets are able to fully reflect the rich detail of the picture, and to fulfill the requirement of one meter viewing range. suitable for both water based dye and eco-solvent pigment inks. and it can offer one to two years service life.
2. variable ink droplets technology
the variable ink droplets technology can project micron grade ink drops of various sizes. ink drops between 1.5pl to 21pl. to produce best color results, smooth gradients, and fine details.
3. progressive pass compensation technology
progressive pass compensation technology is to remove the grinning of white ground or edge overlap (banding ling), which is usually by mechanical inaccuracy and further improve the yield and save the cost.
4. stochastic ink-droplet distribution
with the technique, some problems caused by nozzle clog, like white strips. even with 15% clogged, starjet series printers can still ensure the printing quality.
5. multi-head arrangement technology
dual head can double the printing speed. in quad head model, cmyk heads can be replaced separately. this can lower the maintenance cost. user can choose among single head mode, multi-head quality mode and multi-head performance mode to meet all needs.
6. brand-new mechanical structure
it includes a linear guide drive structure, xy axis grating positioning system, multi-channel ink supply system, heating system on both front and rear platform, media absorption system, and automatic printer head service station. besides, it also has a paper handling system that can bear loads up to 70kg and a frying system composed of eight fans. the machine weighs 220kg in total and 90%of its components are very durable.
7. usb 2.0 bundled with rip
usd 2.0 interfaces supports high speed data transmission and collaborative operation. it greatly enhances the printing performance. ipint 3 fully complies with icc color management standard. and it supports automatic image tiling and composition, liner color adjustment and inking management and etc. with the optional ps component, it is also able to process adobe postscript files.
8. wide range of media compatibility
the height of the print head is adjustable between 2-5mm, up to 1.9m media in width. our printers are featuring ink compatibility with eco solvent based or water based ink, also pigment or dye ink, as well as sublimation ink. various of media printing ability including, self-adhesive paper, pvc, mesh fabric, textile, pvc flex banner, adhesive vinyl, photo paper, pp, back light film, canvas, non-woven fabric, chemical fabric, pu leather, micro fibre, leather and etc.
9. easy to maintain & easy to use
starjet series printers design to meet the high standard of user friendly and operation stability in the industry. it is operability, reliability and durability can compete with any other famous-brand printers in the market.
10. high performance-cost ratio
starjet series printers have world leading performance and almost half the market price to other competitors. furthermore, the printers are able to cover 1.8 meter printing width, and the components we chose are reliable and long lasting. they are designed to satisfy customers with large yield.
introduction of products:
mt-starjet series large format printers with high resolution use the 5th generation of micro piezo technology based printer heads. they provide the output with dual cmyk colors, 1.8m printing width, and support eco solvent based or water based ink, also pigment or dye ink, as well as sublimation ink. they are suitable for the fields of indoor/outdoor advertising, labels and signs, textile printing, decoration, gifts, wedding photos, and so on.
mt-starjet 5
the real leader of large format printer with high-resolution. perfect combination of quality and performance.
1. using two of epson 5th generation of micro piezo printhead, 2880 print nozzles in total, arranging in cross.
2. parallelization technology of multiple printheads. each print pass covers 2 inches area.
3. standard mode 22.5m2/h, draft mode 50m2/h, twice as faster as competition printers.
4. technology of micro piezo printing, variable ink droplets, progressive pass compensation, stochastic ink-droplet distribution. bundles with rip, brand-new mechanical structure, wide range of media compatibility, high performance to cost ratio.
5. the efficiency of the starjet 5 printers is twice as that of the competition printers. starjet 5 printers are very suitable for customers who need to make their volume-printings in short time. not only reducing the investment of printer, but also lowering the cost of maintenance. well received by professional users.
mt-starjet 5.0
high printing precision, high stability with competitive price
1. using one of epson 5th generation of micro piezo printhead to supply the printings in high quality, enough to contend with many famous-brand printers. with single head, the complex head adjustment can be avoided, and the high print quality can be achieved easily by using starjet 5.0 printers.
2. technology of micro piezo printing, variable in droplets, progressive pass compensation, stochastic ink-droplet distribution. bundled with rip, brand-new mechanical structure, wide range of media compatibility, high performance to cost ratio.
3. easy to operate and maintain, easy to calibrate the printhead, more stable printer head service station.
4. up to 1.8m printing width, low cost, suitable for general customers.
product model mt-starjet 5.0 mt-starjet 5
printing technology the epson dx5 micro piezo technology
number of nozzles 1440 nozzles per head 2880 nozzles per 2 head
ink colors 4colors : cyan, magenta, yellow, black
printer head height adjustable 2~5mm
resolution 1440dpi (max)
ink droplet size 1.5-21 pl
printing width 1.8 m (max)
speed high speed mode: 12 m2/hour high speed mode: 22.5m2/hour
standard mode: 7.7 m2/hour standard mode: 14.5 m2/hour
photo mode:5.7 m2/hour photo mode:11.2 m2/hour
heating system the heaters for front and center platform separately. pid temperature control
temperature temperature range: room temperature~80℃
drying system external fan
media width: 1.9 m (max media width
media feeding mode: automatic feeder
automatic take up (optional)
self-adhesive paper, pvc, mesh fabric, textile, pvc flex banner, self adhesive vinyl , paper, fabric, leather and etc.
ink t5.5 eco solvent pigment ink
t5.5 eco solvent dye ink
st5.5 water based dye ink
ink supply mode: pipe based continues ink supply
ink cartridge: 8 x 350ml
rip software photoprint rip software
supported image format: tiff, jpeg and other common image formats
postscript file process (optional)
color mode: rgb or cmyk
control software control software mt-starjet5 control software (cn/en)
interface usb 2.0、rs232
operating system windows xp
voltage ac 220-240v 50/60hz or ac 110-120v 50/60hz
power consumption power: 1kw (max), 300w (printing)
power consumption ambient temperature: 20-25℃
humidity humidity: 40~70 % non-condensing
dimension printer dimension(w x d x h) 2,840 x 900 x 1,250 mm (bracket included)
packing dimension(w x d x h): 3,000 x 930 x 730mm (bracket included)
weight net weight: 220 kg (bracket included)
gross weight: 300 kg (bracket included)
