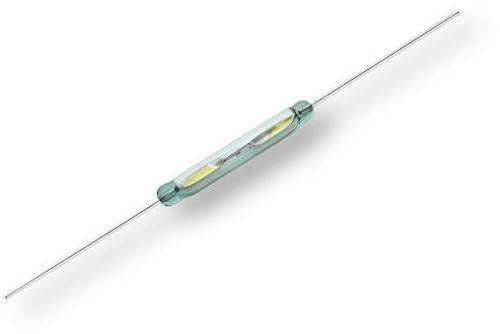

1 High Power Reed Switch

A miniature, normally open switch with a 19.69mm long x 2.84mm diameter (0.770" x .112") glass envelope. Capable of switching up to 200Vdc at 50W. It is rated to carry 3A and switch 1.5A. Available sensitivity range of 22-43 AT. High insulation resistance of 1010 ohms minimum and contact resistance of less than 100 milliohms. Ideally suited for limit sensing, telecom, office equipment and automotive applications. Will handle light inductive loads with no suppression circuitry.
Features:
Normally open switch capable of switching 200Vdc or 1.5A at up to 50 Watts
Available sensitivity range of 22-43 AT
Benefits:
Hermetically sealed switch contacts are not affected by and have no effect on their external environment
Zero operating power required for contact closure
Applications:
Limit switching
Telecom
Office equipment
Light inductive loads
