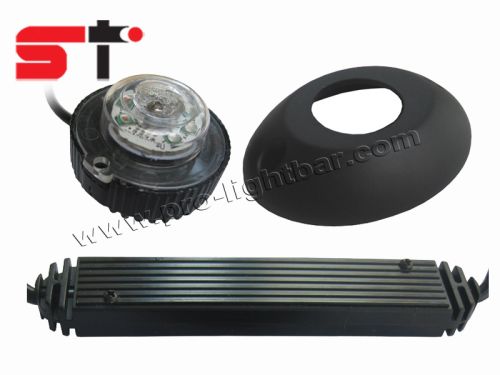

1 Inch Hole Hide LED Light

Car led stroboscopic light, vehicle hazard light
features:
generation iii high power led, hide-away light
pre-programmed multiple flash patterns
alternating or simultaneous flashing available
technical specifications:
6 pcs of 1 watt leds
19 flash patterns
solid alternating flash patterns
mounts in a 1ã¢ï¿½â³ hole
wiring
red: + 12v dc (fuse@ 3a)
black: ã¢ï¿½ï¿½ ground connect to ground vehicle chassis
yellow pattern selection
to select flash pattern, apply yellow to red, less than 1 second for next pattern
about 3-5 seconds for steady burn, more than 5 seconds to turn off
white: synchronization
connect white wire of all heads together for synchronization
all heads must be on same flash pattern to be able to sync
flash patterns:
0. Random,
1. Single (split)
2. Double (split)
3. Quad (split)
4. Quint (split)
5. Mega (split)
6. Ultra (split)
7. Single ã¢ï¿½ï¿½ quad (split)
8. Single hl (split)
9. Single (all)
10. Double (all)
11. Quad (all)
12. Quint (all)
13. Mega (all)
14. Ultra (all)
15. Single ã¢ï¿½ï¿½ quad (all)
16. Single hl (all)
17. Steady 2 (california)
18. Steady 4 (all)
