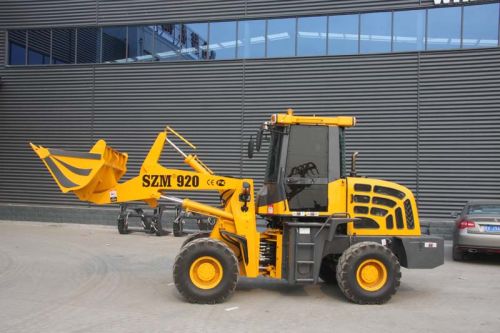

1 M3 Wheel Loader, Packaging Type : Yellow

We are offering 1 m3 wheel loader.
Bucket capacity: 1.0m3
rated load: 1.8 ton
engine model: huafeng4100 turbo-charged
brand: szm
main features:
1. Huafeng 4100 diesel engine is adopted, with large torque backup and strong power. Optional:
dongfeng cummins, weichai, luotuo engine.
2. Optimized linkage designed for large breakout force and short cycle time, having automatic
leveling function on high position.
3. Self-made hydraulic gearbox and driving axle of good quality.
4. Hinge joint with good rigidity improves the durability and flexibility of the machine.
5. Double cylinder steering system with good stability
6. Pilot control, more flexible and light, reducing the fatigue.
7. Luxurious cabin with a wide view, changeable luxurious meter, a/c, back camera, making operation comfortable.
8. Optional tools
9. According to customer need, customize higher dumping and longer arm products.
model 918
bucket capacity 1.0m³
rated load 1800 kg
wheel base 2300 mm
wheel tread 1830 mm
min.ground clearance 300mm
max. Dumping height 2850 mm
dump distance 880mm
total times 9s
operation weight 4450kg
engine model huafeng4100z
rated power/ speed 60kw/2400 rpm
overall dimension
l*w*h） 4900*1830*2750mm
tyre 20.5-16
