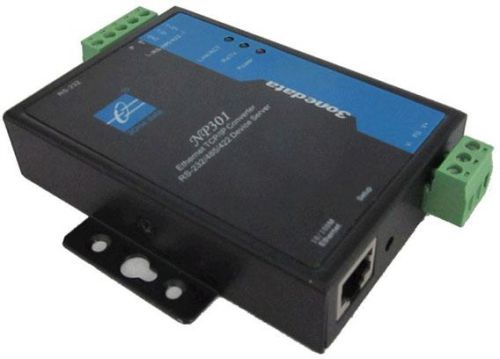

1-port Rs232/485/422 To Ethernet Converter, Brand Name : 3onedata

Specifications:
LAN�
Standard: 10Base-T�100Base-TX
Protocol: Support TCP, UDP, APR, ICMP and DHCP protocol
Signal: Rx+,Rx-,Tx+,Tx-
Speed: 10/100Mbps
Working: Full-duplex and half-duplex
Working mode: Support Server and Client
Transmission; 100m
Connector: RJ45
Serial interface:
Serial interface number: 1 port RS-232,1 port RS-422/485
RS-232 signal: TXD,RXD,RTS,CTS,DTR,DSR,GND
RS-422 signal: T+�A�,T-(B),R+(A),R-(B),GND
RS-485 signal: D+�A�,D-(B),GND
Parity bit: None,Even,Odd,Space,Mark
Data bit: 5bit,6bit,7bit,8bit
Baud rate: 300bps�115200bps
Flow control: RTS/CTS or XON/XOFF
Direction control: RS485 side adopt ADDC technology, auto text and control data transfer direction
Loading: RS-485/422 side support 32 nodes (customize 128 nodes) loopback
Transmission: RS-485/422 side 1200M,
RS-232 port 15M
Interface protection: 1500W surge protection, 15KV static protection
Interface type: RS-232 side DB9 male�RS-485/422 side 5 bit terminal block
Power supply:
Power input: 9~48VDC
Consumption: Approx 1.4W
Environment
Working temperature:-40°C�75°C
Storage temperature:-40°C�85°C
Humidity: Relative humidity 5% to 95%
Appearance
Color: Black and Blue
L�W�H: 100mm�69mm�22mm
Material: Iron (Shell)
Weight: 530g
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals
