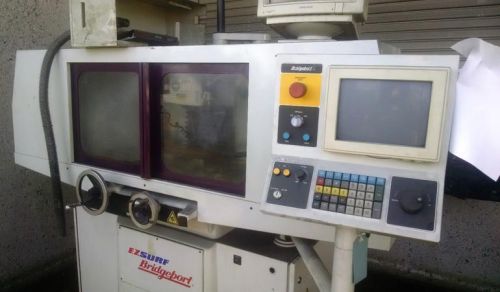

(1) Used Bridgeport/Harig Model 618 "E-Z Surf", 3-Axis CNC Surface Grinder with Full Enclosure*, New 1996
Specifications:
Table Working Surface - Maximum 6" x 18â
Longitudinal Travel - X-Axis 20"
Cross Travel - Z-Axis 6-3/4"
Spindle Center to Table - Maximum Height 12"
Grinding Spindle Speed 3450 RPM
Grinding Wheel Diameter 8"
Grinding Wheel Width 1-1/4"
Grinding Wheel Hole Diameter 1-1/4"
Grinding Wheel Motor 2.5 HP
Electrics 460/230/3/60
Approximate Dimensions 70"L x 36"W x 78"H
Approximate Weight 2,250 Lbs.
Equipped With: Full Enclosure
EZ-Surf Model BPCG PC Based CNC Programmable Control with CRT
3-Axis Automatic Operation
MDI-Setup-Teach-Program & Edit
2-Axis Linear & Circular Interpolation
Absolute & Incremental Operation
Dwell in MDI or End of Stroke
RS-232 Port
Electronic Handwheels on Y & Z Axes
Ballscrews on Y & Z Axes
Specifications and Equipment are Preliminary Subject to Buyer Verification. Sold As Is Where Is, with no implied warranty or guarantee.
Price FOB your truck: $5950.00
