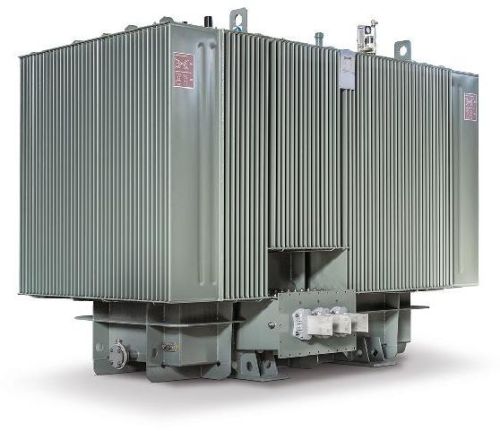

Electric Polished Distribution Transformer, For Robust Construction, High Efficiency, Packaging Type : Wooden Box

Name: Distribution Transformer
Brand: ARGIA
Price: 70000 INR
Availability: InStock

₹ 70,000 - ₹ 30 Lakh / piece

Company Information

Ask for more detail from the seller

Report incorrect details

High performance with high efficiency, according to the needs and strategies to reduce system losses and save energy of each customer.
Step-lap-type magnetic core, resulting in optimization of the noise level, better natural anchoring of the set to withstand short circuit stresses, and low excitation current.
Conductors covered with thermostabilized insulating paper class E (120^oC), whose special characteristic is to delay the regular aging process of the transformer;
External coatings for the harshest environments, upon specification;
Oil level, temperature and pressure controlled by a single protection accessory (RIS - Integrated Safety Detector).
Option of ecologically correct (natural or synthetic ester-based, biodegradable) insulation fluid, presenting high safety level of flammability with fire point twice as high as the one of mineral oil and self-extinguishing properties, thus reducing the risk of fire propagation.
