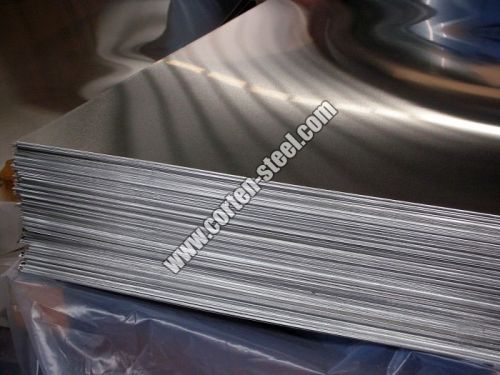

Contact SupplierStainless Steel Plates that we export, import and supply are procured from the trusted sources. Our Stainless Steel Plates are available in different specifications, grades and sizes to suit various applications requirements. Made from high-grade steel, our Stainless Steel Plates are appreciated for sturdy construction, corrosion resistance and high strength. These Stainless Steel Plates are applied in condensers, dished ends, heat exchangers, filters, fittings and flanges, line pipes, pressure vessels, valves, etc.
Specifications : :
Steel Plate Grades :
Applications :
Indicative Chemical Analysis %
Grade | Cr | Ni | Mo | PREN |
---|---|---|---|---|
304L | 18.5 | 9 | - | 18 |
316L | 17 | 11.5 | 2.1 | 24 |
31803 | 22 | 5.3 | 2.8 | 35 |
32750 | 25 | 7 | 3.5 | 40 |
32760 | 25 | 7 | 3.5 | 40 |
Indicative Mechanical Properties
Grade | Proof Stress 0.20% MPa (min) | Tensile MPa | Elongation % |
---|---|---|---|
304L | 200 | 500 - 700 | 45 |
316L | 220 | 520 - 670 | 45 |
31803 | 460 | 640 - 840 | 25 |
32750 | 490 | 730 - 930 | 20 |
32760 | 530 | 730 -930 | 2 |
