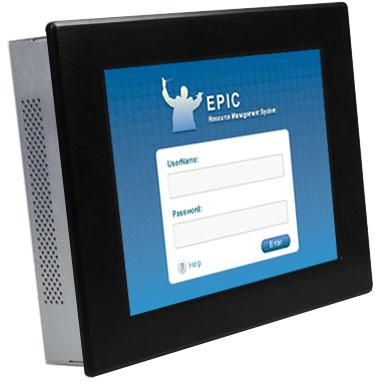

10.4 Inch Touch Screen All In One PC

10.4" touch screen PC, industrial all in one PC. 3 x RS-232, COM2, RS232/ RS422 / RS485 , 1* LPT, 2 * PS/2, 1 * VGA, 4 * USB, 2* GLAN, 1* AUDIO, 1* MIC ,1* Mini PCIe slot for Wireless LAN with antenna (option) , Panel ( Flush ) mount with clips , Standard VESA 75mm support stand, wall mount and swing arm
10.4" SVGA TFT LCD Panel support 800x600pixels ,Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB , Front 6mm aluminum bezel with IP65 compliant , Front hardness glass protect screen ( touch option ) .
Dimensions (WxHxD) 287.4x227.4x68 mm
Weight Net: 4.7kg, Gross: 6.5 kg
Specifications
System
Processor Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU
With 667 MHz FSB
Chipset Intel NM10
Memory DDR3 2G RAM
Dispay Intel GMA3150 chipset
Storage 2.5" HDD SATA 320G
Ethernet 2 x 100/1000 LAN ports
VGA port 1 x VGA Connector
KB & Mouse 1 x PS2 port
Audio Realtek ® ALC662, 5.1 channel surround audio
USB Port 4 x USB 2.0
Serial Port 3 x RS-232, COM2, RS232/RS422/RS485
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply 1 x DC input connector
Construction Front aluminum bezel and steel chassis
LCD Panel
Display Type 10.4 SVGA TFT LCD
Resolution 800 x 600
Max. Color 16.2M
Luminance 250 CD/m2
View Angle 150° (H), 135° (V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 500: 1
Response Time 8 ms
LCD MTBF 50, 000hrs
Mechanical and Environmental
Operating temperature 32 ° F~113 ° F (0 ° C to 45° C)
Storage temperature -4 ° F~140 ° F (-20 ° C to 60 ° C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17Hz-500 Hz 1G PTP
Anti-Shock 1G / peak( 11m sec)
Approvals CE/RoHS
Available Options
Touch screen Resistive type touch screen
Wireless LAN Meet IEEE802.11b/g standard
DC Power Input Wide Range 8~28V DC input
Power Specifications
Input 100~240VAC, 50/60Hz
Output DC12V@ 10A / 120W, external AC adapter with lockable connector
IPC-10D
10.4" All in one PC support Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD
IPC-10DT
10.4" All in one touch screen PC support Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD, with Resistive Touch Screen
