Light Source Stryker Endoscopy Camera

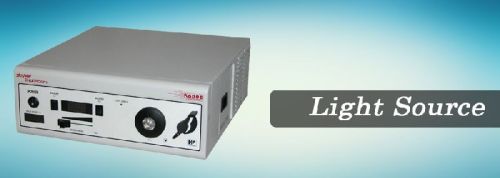

Stryker Endoscopy X-6000

Provides outstanding illumination across all endoscopy applications.

The Stryker Endoscopy X-6000 Xenon Light Source is a high performance device designed for use with Stryker Endoscopy medical video cameras to provide outstanding illumination of the surgical site across all endoscopic applications. With the proper light cable and adapters, it can be connected to any fexible or rigid endoscope.
The X-6000 is equipped with a special safety feature that, when using an ESST cable, will prevent accidental burning caused by an unattended light cable. Electronic Scope Sensing Technology senses when the scope and the light cable are separated and places the light source in standby.
Technical Specifcations
Electrical
• Primary---------100 - 240VAC 50/60 Hz 450W
• Fuse--------8.0A 250V
Fiber Optic Cable Range------2 mm to 11.5 mm
outside diameter
continuously adjustable
Dimensions------------38.1 cm (w) x 41.4 cm (d) x 14 cm (h)
15.0 in. (w) x 16.3 in. (d) x 5.5 in. (h)
Weight------- 10.9 Kg
Lamp--------300 Watt Xenon Cermax
Lamp Life------------Approximately 500 hours
Operating Conditions-------5 to 40° C
10% to 85% Relative Humidity
Transportation & Storage------5 to 40° C 10% to 85%
Relative Humidity 700hPa to 1060hPa
Classifcations & Approvals-------Complies with IEC 601-1 with Amendments 1 & 2, CSA Std. C22.2 No. 601.1-M90, and UL2601-1. Complies with EN 60601-1-2: 1993 (EMC Compliance of Medical Devices) Class 1 Equipment Type CF applied parts
Patent Protection-------U.S. #5,850,496 and 6,110,107. Other patents pending
