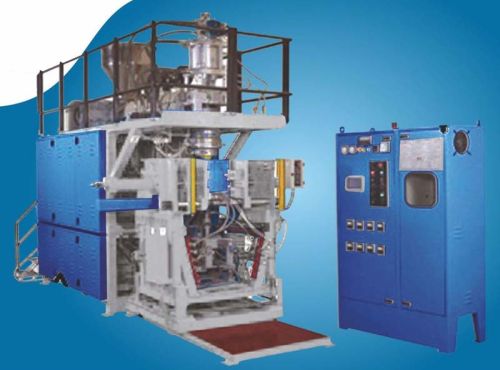

    Three Phase 10 Liter Automatic Blow Moulding Machine, Dimension (LxWxH) : 3113x1992x2740

    ₹ 25 Lakh / Piece
    Get Latest Price
    • MOQ1 Piece(s)
    • FinishingChrome Finish
    • Machine Body MaterialMS-41B
    • Automatic GradeSemi Automatic
    • Brand NameFaith Engineering Works
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 13 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 07ACPPV4215M1ZZ

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    • Brand NameFaith Engineering Works
    • FinishingChrome Finish
    • Machine Body MaterialMS-41B
    • ShapeRectangular
    • ConditionBrand New
    • Automatic GradeSemi Automatic
    • Power10-50 KW
    • SpecialityEasy To Use
    • UsageBlow Molding
    • Country of Origin35 KW
    • Dimension (LxWxH)3113x1992x2740
    • PhaseThree Phase
    • Total Carbohydrate1 Year
    • Overall Weight4000KG
    • Mould Cavity1 Cavity
    • Blow Moulding TypeSemi automatic/fully automatic
    • Model NumberFEW-10000H
    • Plastic ProcessedHDPE, LDPE, PPE etc.

    Being a 10 Liter Automatic Blow Moulding Machine (Model No : FEW-10000H) Manufacturer, Exporter & Supplier, we are committed to serve our presitigious customers with the best quality moulding machines. By providing these machines in customized specifications, we have emerged as a preferred choice of most of the clients. Rely on us and place orders now This is one of the superior quality FEW10000H Blow Moulding Machine in the indusry. As a prominent Manufacture, Exporter and Supplier of the Blowing Moulding Machine, we ensure to provide machines with best technical specification. Not just this, Blow Moulding Machine provided by us is also available market competitive prices.


    Specification

    Screw Diameter80 mm
    Plasticizing Capacity80 Kg/hr
    Maximum Opening600 mm
    Minimum Opening250 mm
    Ratio21 L/D
    Blowing Capacity5 to 15 ltr.
    Mould Thickness400 mm
    Mould Length500 mm
    Mould Width400 mm
    Dry Cycles/ min6 Nos
    Max Container Dia250 mm
    Air Requirements18CFM

    Details

    Electric
    Extruder Motor14.9/ 20 kw/hp
    Hydrautlic Motor5.3/7.5 kw/hp
    Oil Tank Capacity350 Ltr.
    Heating Zone7 Nos
    Heating Load15 kw
    Blower.18/.25kw/hp
    Blower3 Nos
    Total Power of M/c35 Kw
    Dimension of Machine & Weight
    Machine Weight5000 kg
    Machne Dimension LxWxH125"x80"x110"
    Panel Weight150 kg
    Panel Dimensin LxWxH60"x30"x20"
