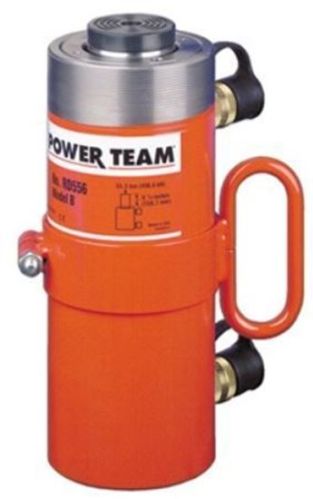

10 Ton Hydraulic Double Acting Cylinder

Perfect for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance.
•Aluminum bronze overlay bearings provide long life, chrome plated piston rod resist corrosion.
•Load cap snaps out to expose internal piston rod threads for pulling
•Grooved ring pattern in load cap helps guard against load slippage.
•Has two 9796 38" NPTF female half couplers.
•Built-in safety relief valve prevents over-pressurization of the retract circuit
. •Feature mounting holes and collar threads.
•15-1116" Retracted Height, 25-1116" Extended Height, 3" Outside Diameter.
•10" Stroke.
•Oil Capacity (cu.in.) 22.3" Push, 8.8" Pull.
• 1-1116" Bore.
•** Not Exact Picture
