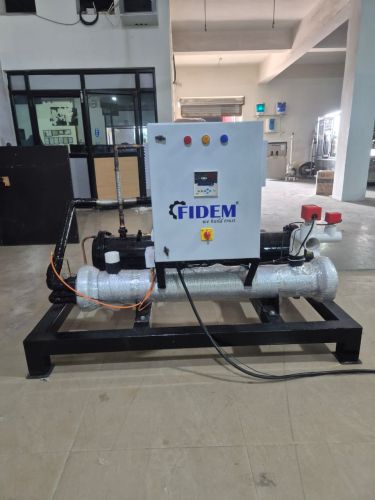

METEL 10 TR Water Cooled Scroll Chiller, Color : MULTI, MULIT

Description

Specification

Actual Cooling Capacity

10.21 TR (35.9 kW)

Nominal Rated Capacity

10.0 TR

Compressor Input Power

5.75 kW

Pump Power

0.75 kW

Total Power Input (Chiller only)

5.75 kW

Compressor Type

Hermetic Scroll

Compressor Make / Model

Danfoss

Quantity of Compressors

1 No.

Refrigerant Circuits

1 Circuit

Refrigerant

R–407C /R-410A

Total Heat Rejection

52 kW

Full Load EER

11.23 Btu/Wh

Full Load COP

3.29 W/W

Estimated IPLV (COP)

3.0 – 3.2 W/W

Estimated IPLV (EER)

10.5 – 11.0 Btu/Wh

Total Power / TR

0.57 kW/TR

Altitude

0 m

Description

Specification

Type

Shell & Tube – Water Cooled

Entering / Leaving Condenser Water

30 °C / 35 °C

Condenser Water Flow Rate

10.5 – 11.0 m³/h

Design Pressure

150 psig

Fouling Factor

0.000018 m²·K/W

Tube Material

Copper (C12200)

Tube OD

19 mm

Pass Arrangement

2-Pass

Shell Material

Carbon Steel (IS 2062)

Water Velocity

1.0 – 1.2 m/s

Pressure Drop

0.05 – 0.10 bar

Heat Rejection

49 – 52 kW
