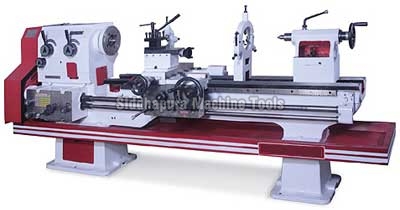

The All Geared Lathe Machine which we provide is made up of 25 Grade Cast Iron and is hardened up to 400 BHN hardness; it is stringently checked for quality. Provided as time saver equipment with separate thread & feed Shaft. All Geared Shaping Lathe Machine is equipped with feed & thread gears could be changed rapidly and decreases the wear and tear of half nut and Lead screw. We have become due to our out of the world machines and their fine features the one of the premium Special Purpose Lathe Machines Exporters in India.
| Particulars | AHD-1 | AHD-2 | AHD-3 | AHD-4 | AHD-5 | AHD-6 | AHD-7 | |
|---|---|---|---|---|---|---|---|---|
| Bed Length | mm / feet | 1670 / 5.5 | 2130 / 7 | 2740 / 9 | 3040 / 10 | 3650 / 12 | 4260 / 14 | 4870 / 16 |
| Admit Between centre | mm | 535 | 990 | 1600 | 1900 | 2500 | 3125 | 3725 |
| Spindle Motor Power | HP / kw | 2 / 1.5 | 2 / 1.5 | 2 / 1.5 | 3 / 2.25 | 3 / 2.25 | 5 / 3.75 | 5 / 3.75 |
| Bed width | mm / Inch | 323 / 12.75 | 323 / 12.75 | 323 / 12.75 | 323 / 12.75 | 323 / 12.75 | 323 / 12.75 | 323 / 12.75 |
| Height of center | mm / Inch | 254 / 10 | 254 / 10 | 254 / 10 | 254 / 10 | 254 / 10 | 254 / 10 | 254 / 10 |
| Swing over bed | mm | 480 | 480 | 480 | 480 | 480 | 480 | 480 |
| Swing over cross slide | mm | 280 | 280 | 280 | 280 | 280 | 280 | 280 |
| Swing over gap | mm | 785 | 785 | 785 | 785 | 785 | 785 | 785 |
| Spindle Bore | mm / Inch | 54 / 2.125 | 54 / 2.125 | 54 / 2.125 | 54 / 2.125 | 54 / 2.125 | 54 / 2.125 | 54 / 2.125 |
| Spindle speed | RPM | 40 to 1060 | 40 to 1060 | 40 to 1060 | 40 to 1060 | 40 to 1060 | 40 to 1060 | 40 to 1060 |
