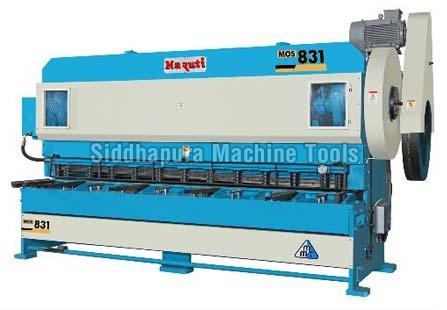

100-1000kg Over Crank Shearing Machine, Certification : CE Certified

Automatic GradeAutomatic
CertificationCE Certified
Rated Power3 phase
Total Carbohydrate1year
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

CertificationCE Certified
Availability100-1000kg
Country of Origin400/440 volts
Automatic GradeAutomatic
Rated Power3 phase
Total Carbohydrate1year
No. of cycles50 cycles

The Over Crank Shearing Machines have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability. This Mechanical over Crank Shearing Machine is provided with high quality single segment knives for longer tool life. Ease in assembling knives reduces down time. The knives blades are four edged. Scale on the black gauge gives instantaneous reading of distance between shear and back gauge. Power Shearing Machine Supplier, in India we are trusted worldwide not only for the robust quality of our machines but also for the assurance of durability and a long life.

Features

A pair of four edge shear blade
Standard front gauge
Black gauge manually operated
Finger guard fitted in front of hold down for operator protection

Details

All dimensions are in mm
Power supply 400/440 volts, 3 phase, 50 cycles
We reserve the rights to alter specifications without notice
Undergo stringent quality checks for easy and smooth operation

Technical Specifications

Model	Cutting Cap. in M.S. (Length × Thick)	Depth of Throat	Stan. Front Gauge	Stan. Rear Gauge	Table (Height ⁄ Width)	Blade (L × W × T)	Stroke Per Minute	Hold Down to Knife Edge	Machine (L × W × H)	Main Motor HP ⁄ KW	Approx. Weight Kgs.
MOS612	1270 × 6	80	600	750	770 ⁄ 450	1270 × 75 × 18	30	45	2250 × 1950 × 2300	7.5 ⁄ 5.6	4500
MOS615	1525 × 6	80	600	750	770 ⁄ 450	1525 × 75 × 18	30	45	2500 × 1950 × 2300	10 ⁄ 7.7	5100
MOS620	2030 × 6	80	600	750	770 ⁄ 450	2030 × 75 × 18	30	45	3000 × 1950 × 2300	10 ⁄ 7.7	6300
MOS625	2540 × 6	80	600	750	770 ⁄ 450	2540 × 75 × 18	30	50	3550 × 1950 × 2300	12⁄ 9.7	7200
MOS631	3125 × 6	80	600	750	770 ⁄ 450	3125 × 75 × 18	30	50	4150 × 1950 × 2400	15 ⁄ 11.2	9800
MOS815	1525 × 8	80	600	750	770 ⁄ 450	1525 × 75 × 18	30	50	2570 × 1950 × 2300	12.5 ⁄ 9.7	6500
MOS820	2030 × 8	80	600	750	800 ⁄ 450	2030 × 75 × 18	25	50	3150 × 1950 × 2500	12.5⁄ 9.7	7000
MOS825	2540 × 8	80	600	750	800 ⁄ 450	2540 × 75 × 18	25	50	3670 × 1950 × 2500	15 ⁄ 11.2	8000
MOS831	3125 × 8	80	600	750	800 ⁄ 450	3125 × 90 × 18	25	50	4250 × 1950 × 2600	20 ⁄ 15	11500
MOS1020	2030 × 10	80	600	750	800 ⁄ 450	2030 × 90 × 18	25	75	3200 × 1950 × 2600	15 ⁄ 11.2	7800
MOS1025	2540 × 10	80	600	750	800 ⁄ 450	2540 × 100 × 22	25	75	3700 × 1950 × 2600	20 ⁄ 15	9100
MOS1031	3125 × 10	80	600	750	800 ⁄ 450	3125 × 100 × 22	25	75	4300 × 1950 × 2600	25 ⁄ 18.7	9600
MOS1320	2030 × 13	80	600	750	800 ⁄ 450	2030 × 100 × 22	25	75	3250 × 1950 × 2600	20 ⁄ 15	9250
MOS1325	2540 × 13	80	600	750	800 ⁄ 450	2540 × 100 × 22	25	75	3750 × 1950 × 2600	25 ⁄ 18.7	10500
MOS1331	3125 × 13	80	600	750	800 ⁄ 450	3125 × 100 × 22	25	75	4350 × 1950 × 2600	30 ⁄ 22.5	13000
