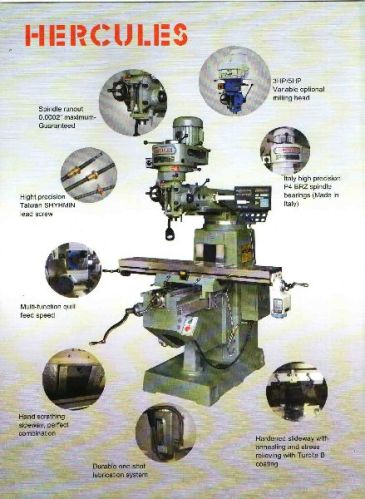

Owing to our rich industry experience, we are counted among the prominent Importers and Suppliers of Vertical Turret Milling Machines from Haryana. The milling head of our Machine can tilt 90 Degrees right and left; 45 degrees back and forward. Our Milling Machines come with rugged saddle. Buyers are free to place bulk orders of Milling Machines with us and expect their timely delivery.
| SPECIFICATION | M3 | M4 |
|---|---|---|
| Table Size | 1270mmx254mm 50" x 10" | 1370mmx254mm 54" x 10" |
| Table Travel (X x Y x Z) | 850x400x405 | 950x400x405 |
| Ram Travel | 380mm | |
| T-Slot (Number with) | 3x16mm | |
| Spindle Speed | Standard : 16 Steps 80-462rpm | |
| Optional : Variable 70-3600rpm | ||
| Quill Feed Speed | 0.04, 0.08, 0.15 mm/rev | |
| Spindle Travel | 127mm | |
| Spindle Hole taper | Standard : R8/NT 30 (Optional) : Nt40 | |
| Spindle nose to table | 40-440mm | 45-465 |
| Main Motor power | 3HP | |
| Net Weight | 1100Kgs. | 1200Kgs. |
